Anchor NAVI-TRAC 50 WIDE HIP-END - Manual (Page 9)

1
3
4
2
6 5
7

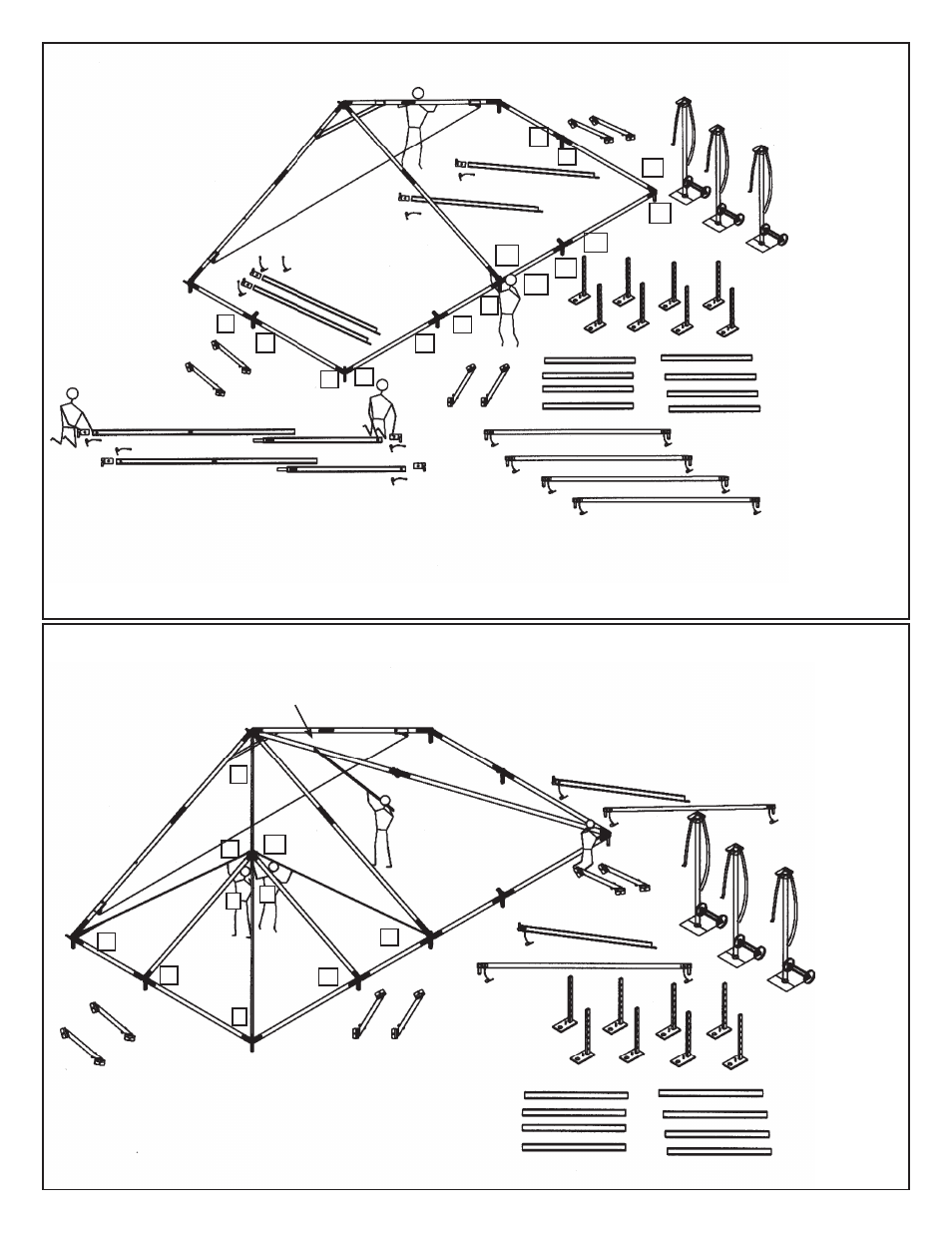

INSTALL DROP-IN HIPS AND HIP BRACES
IN THE ORDER AS NUMBERED.
HINT: TO ALIGN HIP BRACES , LIFT CEN-
TER OF HIP BAR, THEN
DROP THE HIP BRACE CONNECTORS
CLEANLY INTO FITTINGS AND SECURE
WITH LANYARD PINS.
IF YOU ARE CONSTRUCTING AN EXTENDED RECTANGULAR TENT,
INSTALL FABRIC NOW.
IF YOU ARE CONSTRUCTING A SQUARE TENT, PROCEED TO THE
NEXT STEP.
USE LIFTING CRADLES AS NEEDED
TO MAKE HIP-PEAK CONNECTIONS
PRE-ASSEMBLING THE HIP MEMBER
COMPLETING HIP END TOP FRAME
ASSEMBLING HIP END TOP FRAME
HIP END
FITTINGS
HIP END
FITTINGS
HIP BRACES
HIP LOWER
SPLICES
HIP UPPER
SPLICES
PUSH AGAINST PEAK TO
ENGAGE SLIP JOINT.
HEAVY-DUTY
NAVI-TRAC
FRAME LIFTS
8
15
13
14
12
11
10
9
INSTALL TOP & BOTTOM END FITTINGS INTO HIPS
AND SECURE WITH LANYARD PINS. BOLT THE
UPPER AND LOWER SPLICE SECTIONS TOGETHER.
RAFTERS,
INTERMEDIATE
FIXED-BASES
2
10
8
1
9
5 3
7
4
6
9
FOR EASE OF ASSEMBLY,
MAKE CONNECTIONS IN
ORDER AS NUMBERED.
UPRIGHT BRACES
