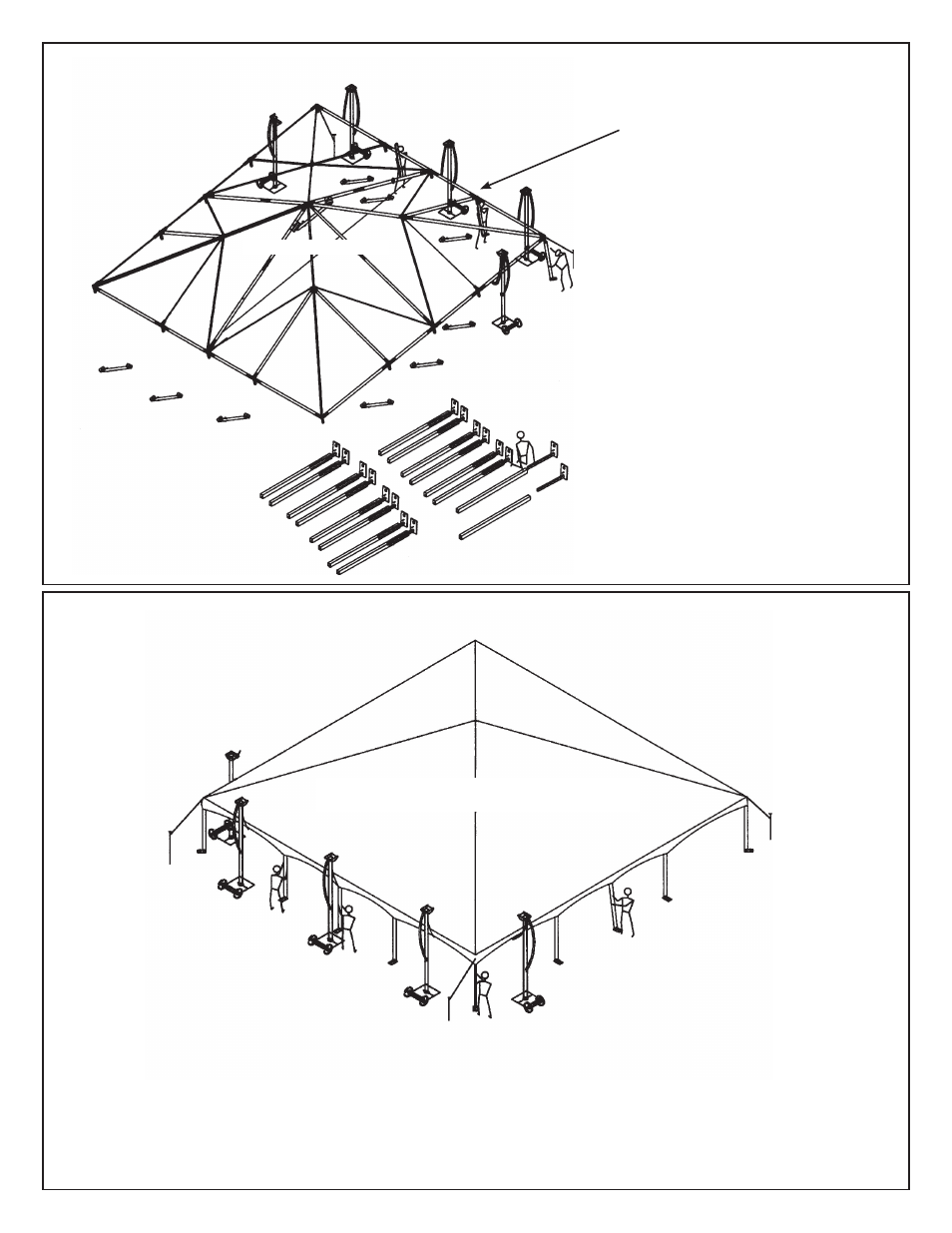

LIFTING TOP FRAME (FIRST SIDE)
INSTALL UPRIGHTS. AT INTERMEDIATE
LOCATIONS, INSTALL UPRIGHT BRACES
AS WELL
UPRIGHT
BRACES
USING HEAVY-DUTY NAVI-TRAC FRAME
LIFTS, LIFT ONE SIDE OF FRAME. SLIDE
UPRIGHTS ONTO BOTTOM OF WELD-
MENTS ON THE RAISED SIDE AND PIN.
BE SURE ALL RAFTER AND HIP PINS
ARE SECURE, AS WELL.
INSERT BASEPLATES INTO UPRIGHTS
AND BOLT. NOTE: SQUARE FRAMES
AND END MODULE FRAMES MUST USE
FIXED BASEPLATES. HINGED PLATES
ARE TO BE USED ONLY ON PIVOTING
MIDDLE BEAMS FROM THE EXTENSION
FRAME SETS.
FABRIC LIES LOOSELY ON FRAME UNTIL
UPRIGHTS ARE INSTALLED AND STAKED
LIFT TOP FRAME (SECOND SIDE)
1. LIFT 2ND SIDE OF FRAME TO INSTALL OPPOSITE SIDE
CORNER AND INTERMEDIATE UPRIGHTS.
2. INSTALL UPRIGHT BRACES AT ALL INTERMEDIATE
UPRIGHTS.
NOTE: BEFORE TENSIONING FABRIC, INSPECT
THE FRAME TO ENSURE INTERMEDIATE
RAFTER, BRACE AND HIP PINS ARE PROPERLY
SEATED IN THE WELDMENT FITTINGS AND
SECURED BY LANYARD PINS.
FABRIC NOT SHOWN
