Anchor NAVI-TRAC 50 WIDE HIP-END - Manual (Page 16)

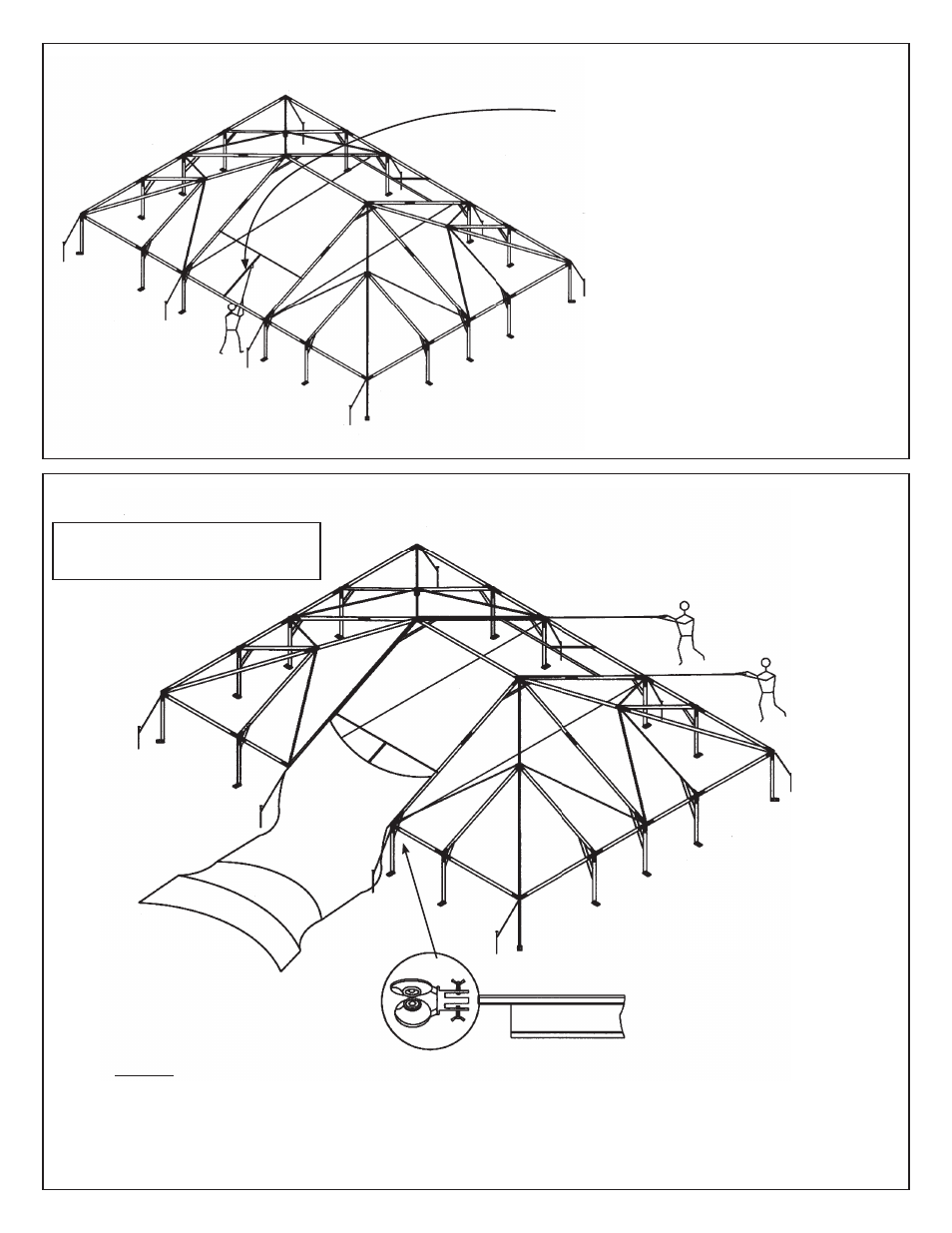

PURLIN SUPPORTS IN 20’ MID BAYS
IN 20’ MID BAYS, INSTALL A SUPPORT PURLIN
BETWEEN THE EAVE AND THE PURLIN AT THE
MID-RAFTER LOCATION. THIS SUPPORT WILL
BRACE AGAINST INWARD DEFLECTION OF THE
EAVE BAY THAT COULD OTHERWISE RESULT IN
WATER PONDING IN THE 20 FT BAY.
16
INSTALLING MID PANEL
INSERT FINGERS OF WHEELED PANEL GUIDE
INTO THE OPEN END OF THE RAFTER AND
WELDMENT. TIGHTEN THE BUTTERFLY NUT.
REVERSE FOR OPPOSITE SIDE OF BAY.
RAFTER
WHEELED
PANEL
GUIDE
NOTE: HIP END FABRIC PANELS NOT
SHOWN SO THAT THE FRAME WILL
BE MORE VISIBLE.
PULL MID PANEL UP AND OVER THROUGH
CHANNELS IN RAFTER EXTRUSIONS.
IMPORTANT NOTE: TO ENSURE THAT
MID GOES IN SMOOTHLY AND TO
MINIMIZE CHANCE OF DAMAGE TO
FABRIC, ALWAYS USE THE WHEELED
PANEL GUIDE TO FEED KEDAR INTO
FRAME CHANNELS. SEE NEXT PAGE
FOR INFORMATION ON HOW TO
ATTACH PULL ROPES TO MIDS.
