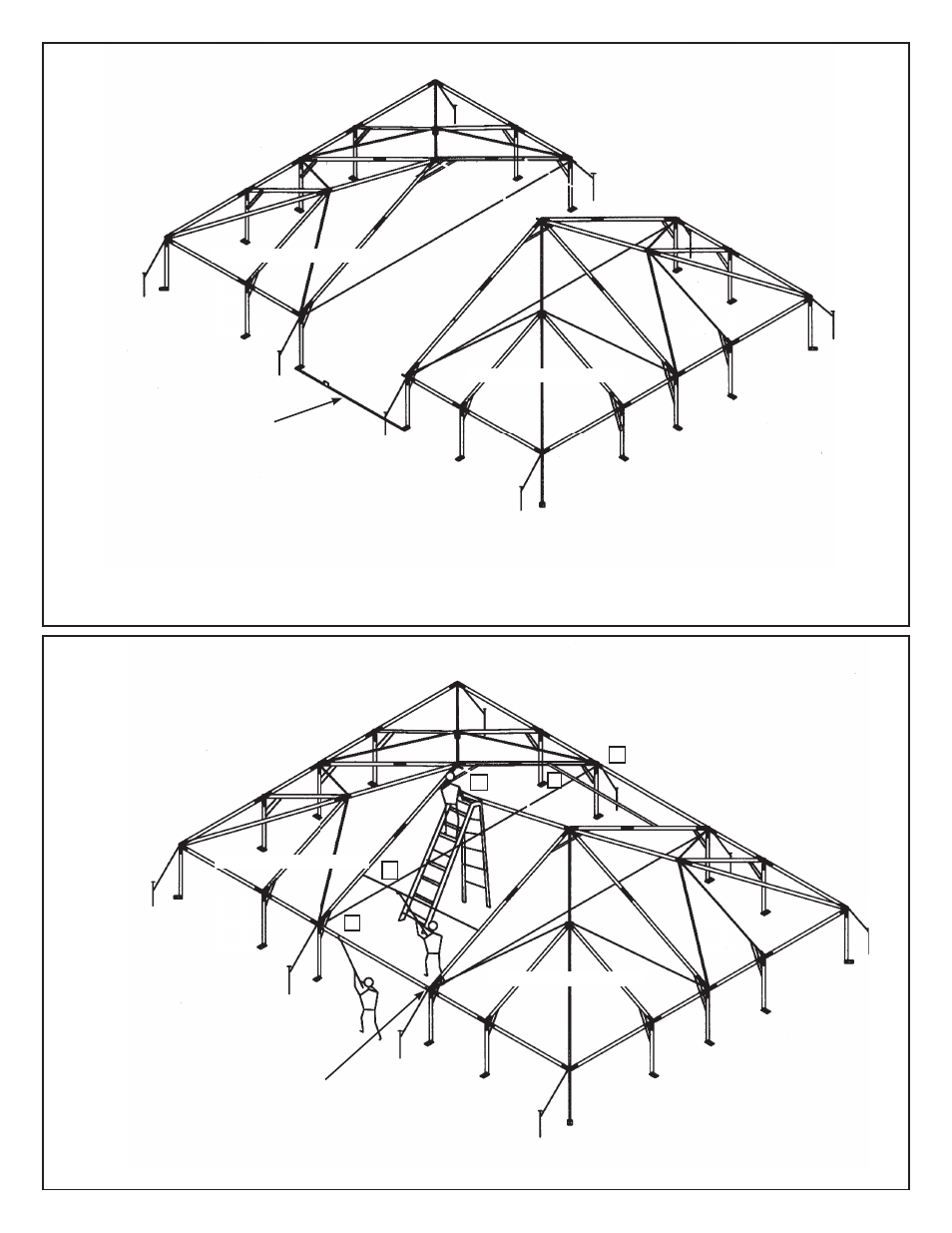

INSTALLING MID BAY PURLINS AND EAVE/RIDGE BARS
FOR MOST EASE, INSTALL
IN THE ORDER SHOWN
FOR PURLINS & EAVE/RIDGE BARS,
INSTALL HOOK END FIRST, THEN THE
90 DEGREE OPPOSITE END.
UNITS WITH (1) MIDDLE BAY
ADJUST TO DESIRED SPACING
AND FIT END CONNECTORS OVER
GUIDE PEGS ON BASEPLATES.
NOTE: FOR FREQUENT INSTALLATIONS, THE
PURCHASE OF A 2ND GUIDE BAR COULD BE
HELPFUL.
THE EXTENDED RECTANGULAR UNIT ALWAYS INCLUDES (2) HIP END MODULES FACING EACH
OTHER WITH THE DESIRED NUMBER OF 10’, 15’ OR 20’ MIDDLE BAYS SEPARATING THEM. NOTE:
UNLIKE THE RIGID EAVE AND LOWER RAFTER CONNECTIONS OF THE END MODULE, MIDDLE BAYS
USE DROP-IN PURLINS AND EAVE/RIDGE BARS.
NOTE: ONLY FIXED-BASE
UPRIGHTS ARE TO BE USED
IN END MODULES.
(2) END MODULES FACING
EACH OTHER.
1
2
3
FABRIC NOT SHOWN
5
4
CONNECTION SEQUENCE
SHOWN MAY CHANGE WITH
THE TERRAIN.
15
FABRIC NOT SHOWN
FABRIC NOT SHOWN
FABRIC NOT SHOWN
