HIP END MODULES FOR RECTANGULAR UNITS
THE RECTANGULAR UNIT IS SIMPLY (2)
HIP ENDS FACING EACH OTHER AND
SEPARATED BY PARALLEL-BEAMED
MIDDLE BAYS.
NOTE: ONLY FIXED-BASE
UPRIGHTS ARE TO BE USED
IN END MODULES.

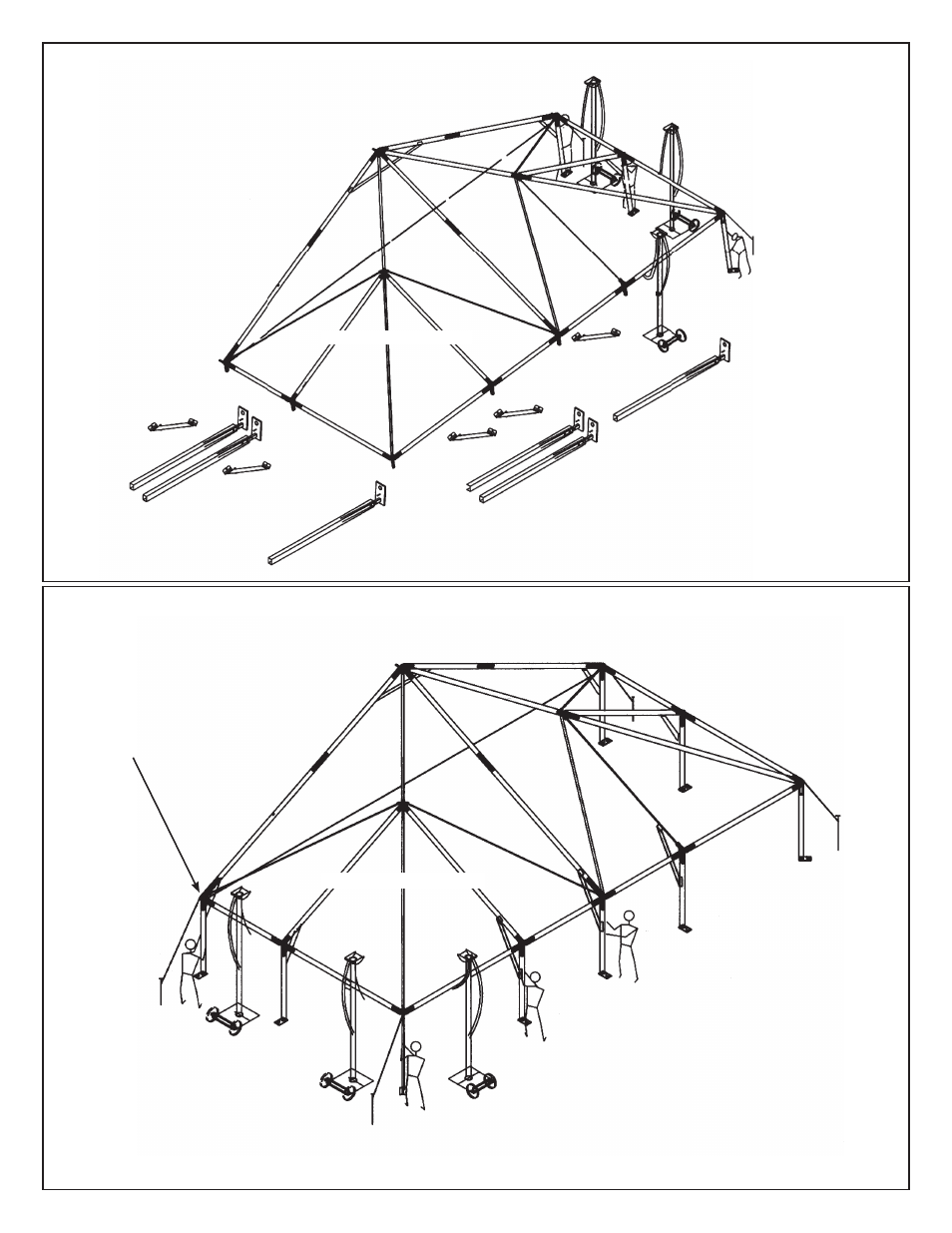

FOR RECTANGULAR UNITS, FIRST CONSTRUCT
HIP ENDS, INSTALLING FABRIC LOOSELY AND
RAISING EACH SIDE TO INSTALL UPRIGHTS AND
BRACES, JUST AS IN THE SQUARE TENT IN
PRECEDING PAGES.
FABRIC NOT SHOWN
COMPLETING THE HIP END
LIFT SECOND (OPPOSITE) SIDE OF
THE HIP END AND PIN UPRIGHTS INTO
POSITION. INSTALL UPRIGHT BRACES
AT INTERMEDIATE POSITIONS. THE
CROSS-CABLE REMAINS AS A PER-
MANENT PART OF THE 50’ NAVI-TRAC
UNIT.
FABRIC NOT SHOWN
THE HIP END FABRIC IS INSTALLED THE SAME AS ON
SQUARE UNITS (SEE ILLUSTRATION ON PAGE 14).
NOTE: BEFORE INSTALLING FABRIC, BE SURE ALL
PINS AND BOLTS ARE PROPERLY SEATED AND
SECURED WITH LANYARD PINS AS NEEDED.
LIFT FIRST SIDE AND INSTALL
UPRIGHTS (WITH UPRIGHT
BRACES AT INTERMEDIATE
LOCATIONS).
14
