UNITS WITH (2) OR MORE MID BAYS
ADDITIONAL GUIDE BARS
MAY BE PURCHASED
1
2
3
MIDDLE BEAMS THAT ARE NOT A PART
OF AN END MODULE USE THE HINGED
BASEPLATE (FOR PIVOTING TO VERTICAL).
FIXED PLATES ARE STAMPED “END” AND
SHOULD BE USED ONLY ON END MODULES.
IN UNITS WITH MULTIPLE MIDDLE BAYS, THE SEC-
OND HIP END MODULE CAN BE ASSEMBLED AT THE
SAME TIME AS THE FIRST (OR LATER AFTER THE
MIDDLE BEAMS HAVE BEEN INSTALLED).
WHEN FRAME IS COMPLETE, MID
PANELS ARE INSTALLED THE SAME
AS PREVIOUSLY SHOWN IN THE SIN-
GLE MID BAY CONFIGURATION.
5
4
17
FOR EASE OF ASSEMBLY, MAKE
CONNECTIONS IN ORDER AS NUM-
BERED IN EACH BAY.

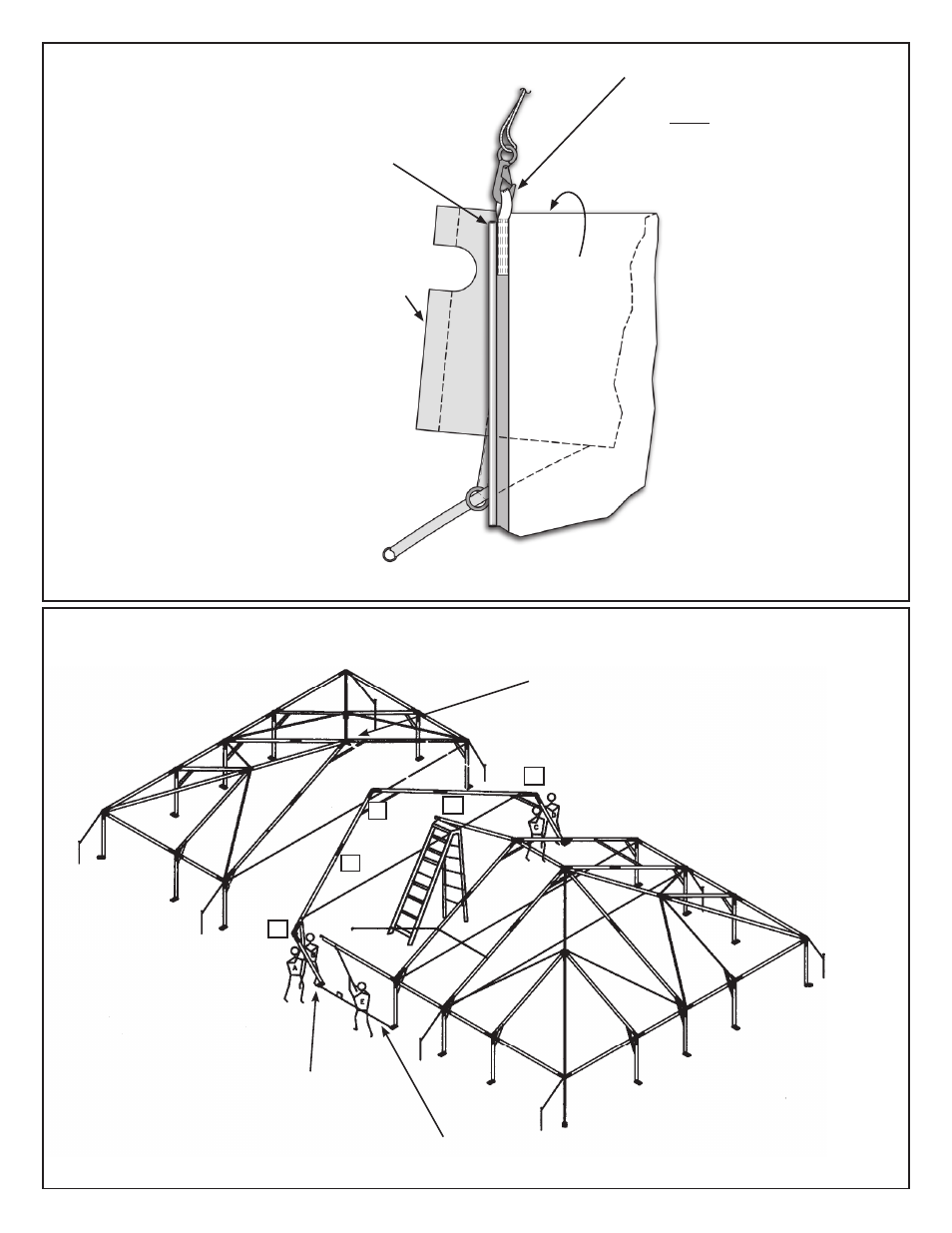

DIAGRAM SHOWING UNDER
SIDE OF FABRIC AT EAVE.
FOLD CURTAIN AND CATENARY BACK
ON TOP OF MID SO THAT THEY ARE
OUT OF THE WAY.
SNAP OF PULL ROPE MUST BE
FASTENED TO PULL WEB ON
UNDER SIDE OF FABRIC PIECES.
SNAP MUST FACE AWAY FROM
KEDAR.
KEDAR
FLAP - ONLY ONE
SIDE OF MID OR
END WILL HAVE
THE FLAP.
SAFE ATTACHMENT OF PULL
ROPES TO FABRIC
