8

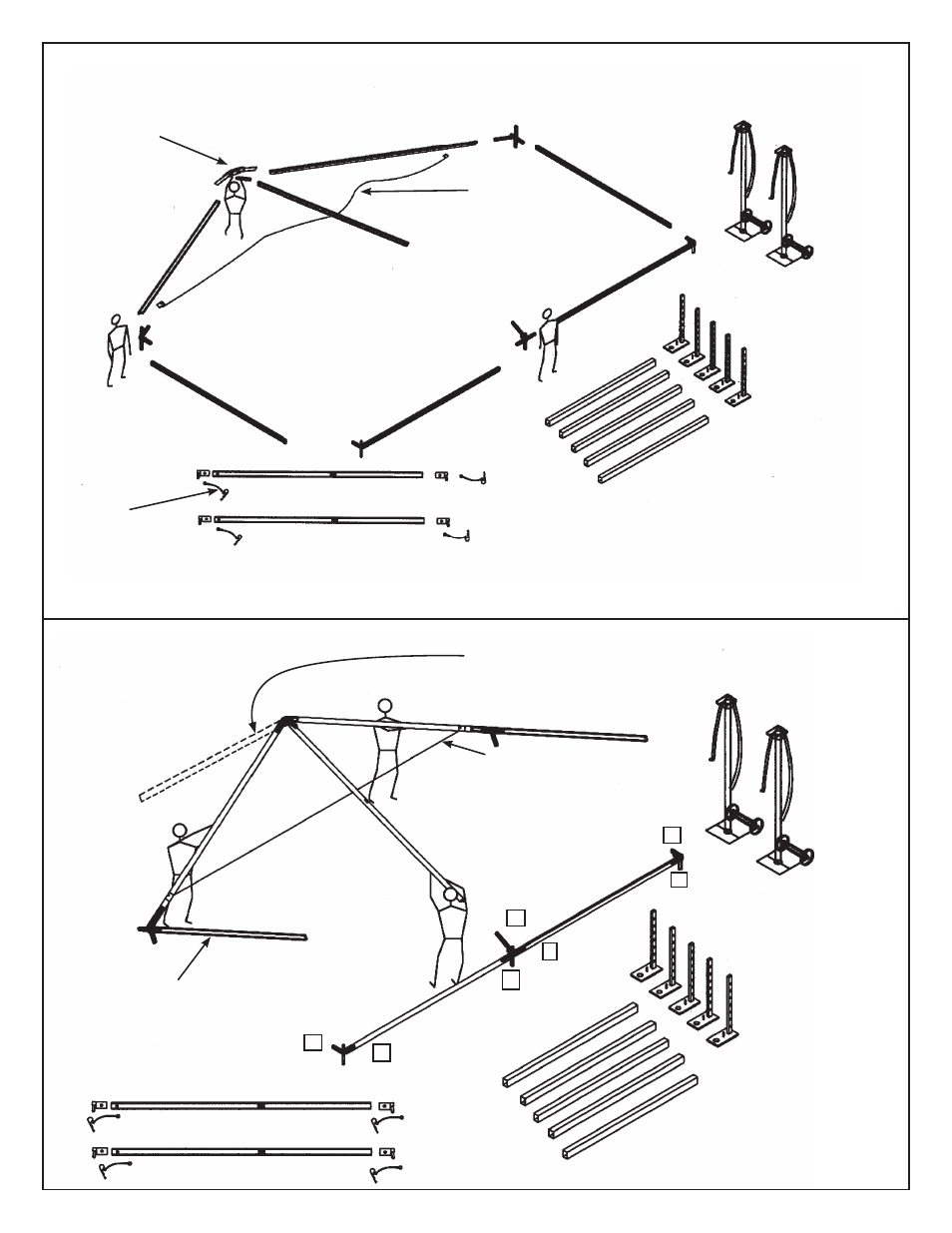

LAYOUT END MODULE COMPONENTS
CONSTRUCT FIRST BEAM
NOTE: ON END MODULES, EAVE FITTINGS FOR BOTH
EAVES AND RAFTERS ARE RIGID SLIP JOINTS.
HOOK THE END RAFTER TOP FITTING ONTO THE
PEAK/RIDGE WELDMENT. THEN SLIDE THE END
RAFTER ONTO THE BOTTOM OF THE END FITTING
AND BOLT.
HEAVY DUTY NAVI-
TRAC FRAME LIFTS
NOTE: ONLY FIXED-BASE UPRIGHTS ARE
TO BE USED IN END MODULES. HINGED
BASE UPRIGHTS ARE FOR MIDDLE BEAMS ONLY AND
COULD CAUSE COLLAPSE DURING INSTALLATION IF
USED IN AN END MODULE.
END
FITTINGS
END
FITTINGS
CROSS-CABLE
HIP LOWER
SPLICES
OPTION: IF YOU ARE ASSEMBLING A SQUARE UNIT,
THE TRAILING END INTERMEDIATE RAFTER CAN
BE ATTACHED TO THE PEAK NOW TO AVOID LATER
CONNECTING IT FROM A LADDER.
INSTALL CROSS-CABLE AND ADJUST
TURNBUCKLE UNTIL SPAN = 30’
(APPROX. HALF OPEN). AFTER
FABRIC IS TENSIONED, CROSS-
CABLE MAY BE REMOVED, IF
DESIRED.
AS BEAM IS PIVOTED TO
VERTICAL, THE EAVE BARS
ACT AS COUNTER-WEIGHTS
TO MAKE THE LIFTING EASIER.
1
3
4
2
6
5
7
FIXED-BASE
UPRIGHTS
LANYARD
W/ COTTER
PIN
FOR EASE OF ASSEMBLY,
MAKE CONNECTIONS IN
ORDER AS NUMBERED.
