11

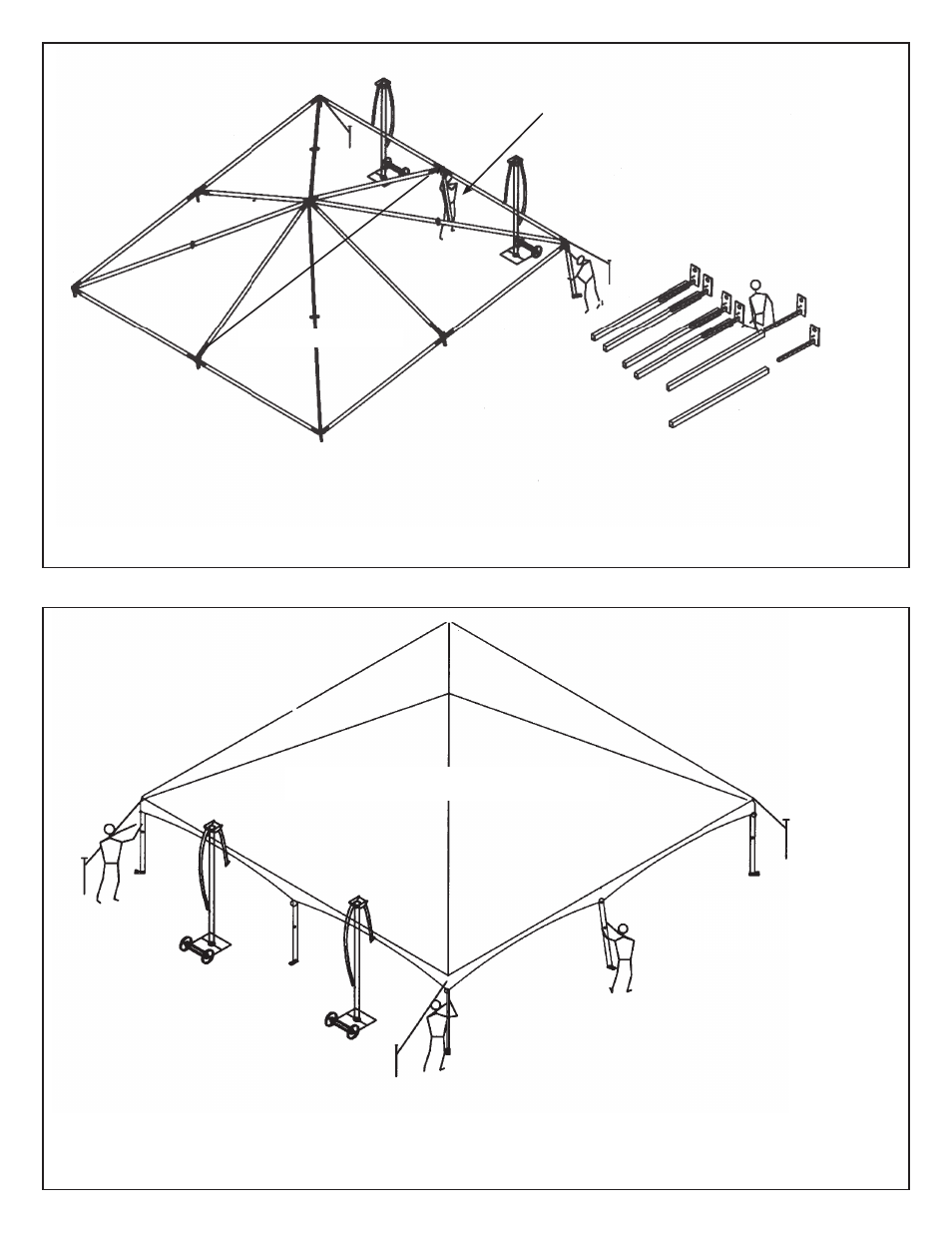

LIFTING
TOP FRAME
(FIRST SIDE) INSTALL UPRIGHTS.
USING HEAVY-DUTY NAVI-TRAC FRAME LIFTS,
LIFT ONE SIDE OF FRAME. SLIDE UPRIGHTS
ONTO BOTTOM OF WELDMENTS ON THE RAISED
SIDE AND PIN. BE SURE ALL RAFTER AND HIP
PINS ARE SECURED WITH LANYARDS.
INSERT BASEPLATES INTO UPRIGHTS AND BOLT.
NOTE: SQUARE FRAMES AND END MODULE FRAMES
MUST USE FIXED BASEPLATES. HINGED PLATES
ARE TO BE USED ONLY ON PIVOTING MIDDLE BEAMS
FROM THE EXTENSION FRAME SETS.
FABRIC NOT SHOWN
FABRIC LIES LOOSELY ON FRAME UNTIL
UPRIGHTS ARE INSTALLED AND STAKED
LIFT TOP FRAME
(SECOND SIDE)
1. LIFT 2ND SIDE OF FRAME TO INSTALL OPPOSITE SIDE CORNER
AND INTERMEDIATE UPRIGHTS.
2. INSTALL UPRIGHT BRACES AT ALL INTERMEDIATE UPRIGHTS.
3. WHEN BRACES ARE INSTALLED, THE CROSS-CABLE CAN BE REMOVED.
NOTE: BEFORE TENSIONING
FABRIC, INSPECT THE FRAME
TO ENSURE ALL HIP PINS
ARE PROPERLY SEATED AND
SECURED WITH LANYARD PINS.
