20
Groundbar keeper for inter-
mediate upright. Groundbar keeper for Cor-
ners.
Prong with no hole
inserts up into upright.
Cross sectional view of
upright.
This end to outside of tent.
Upright prong fits into this part
of upright.
Corner Upright
Wall with kedar already
slid into upright.
Groundbar slid
into pocket.
Inserting keeper up into
bottom of upright on out-
side corner of tent.
Slide groundbars onto
prongs and pin into place
as shown.
Bottom View looking up
into upright with Ground-
bar keeper inserted.

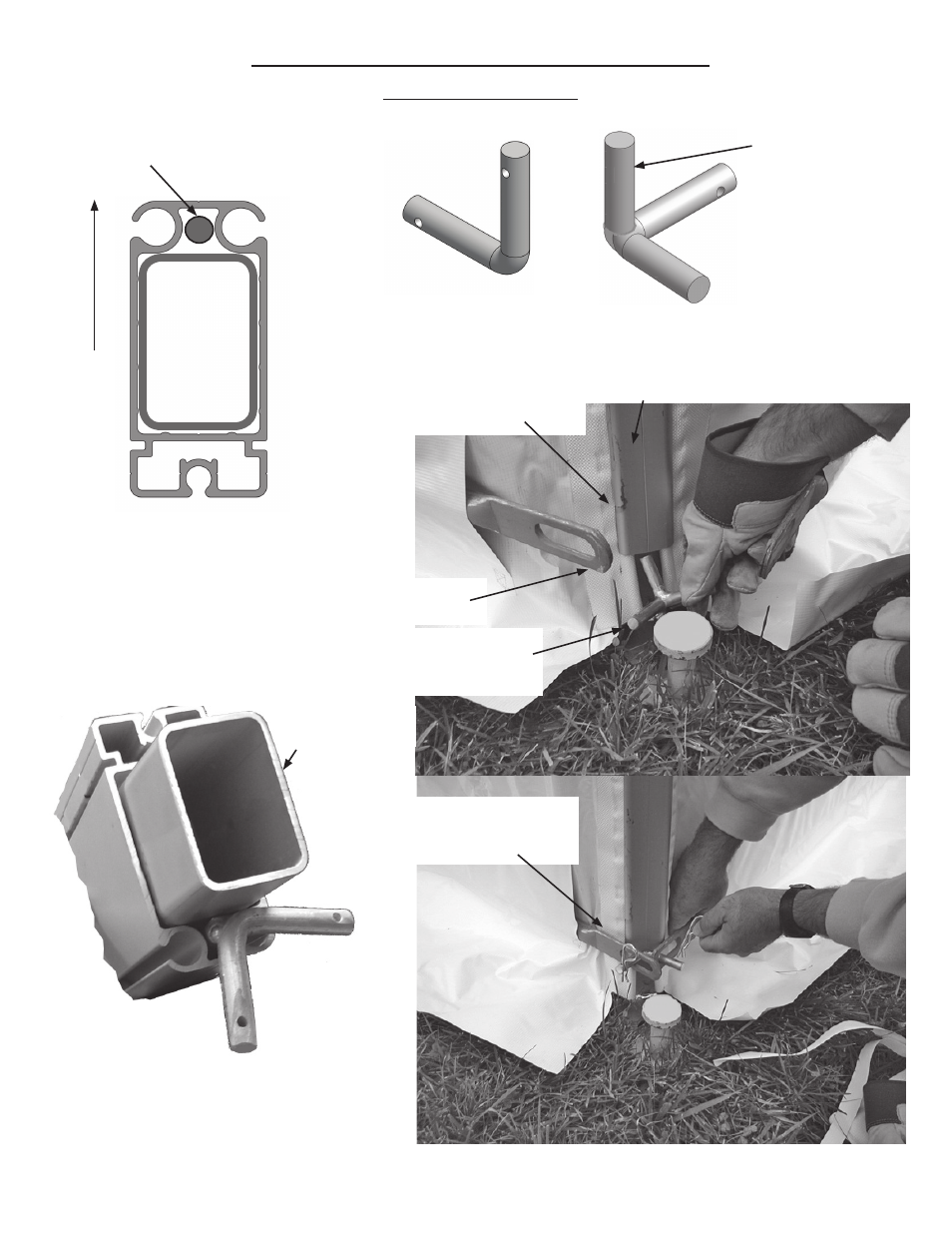

Navi-Trac Ground Bar Keeper
Instructions
Base Plate Inserted
into upright.
