14

HIP END MODULES

FOR RECTANGULAR UNITS

THE RECTANGULAR UNIT IS SIMPLY
(2) HIP ENDS FACING EACH OTHER
AND SEPARATED BY PARALLEL-
BEAMED MIDDLE BAYS.

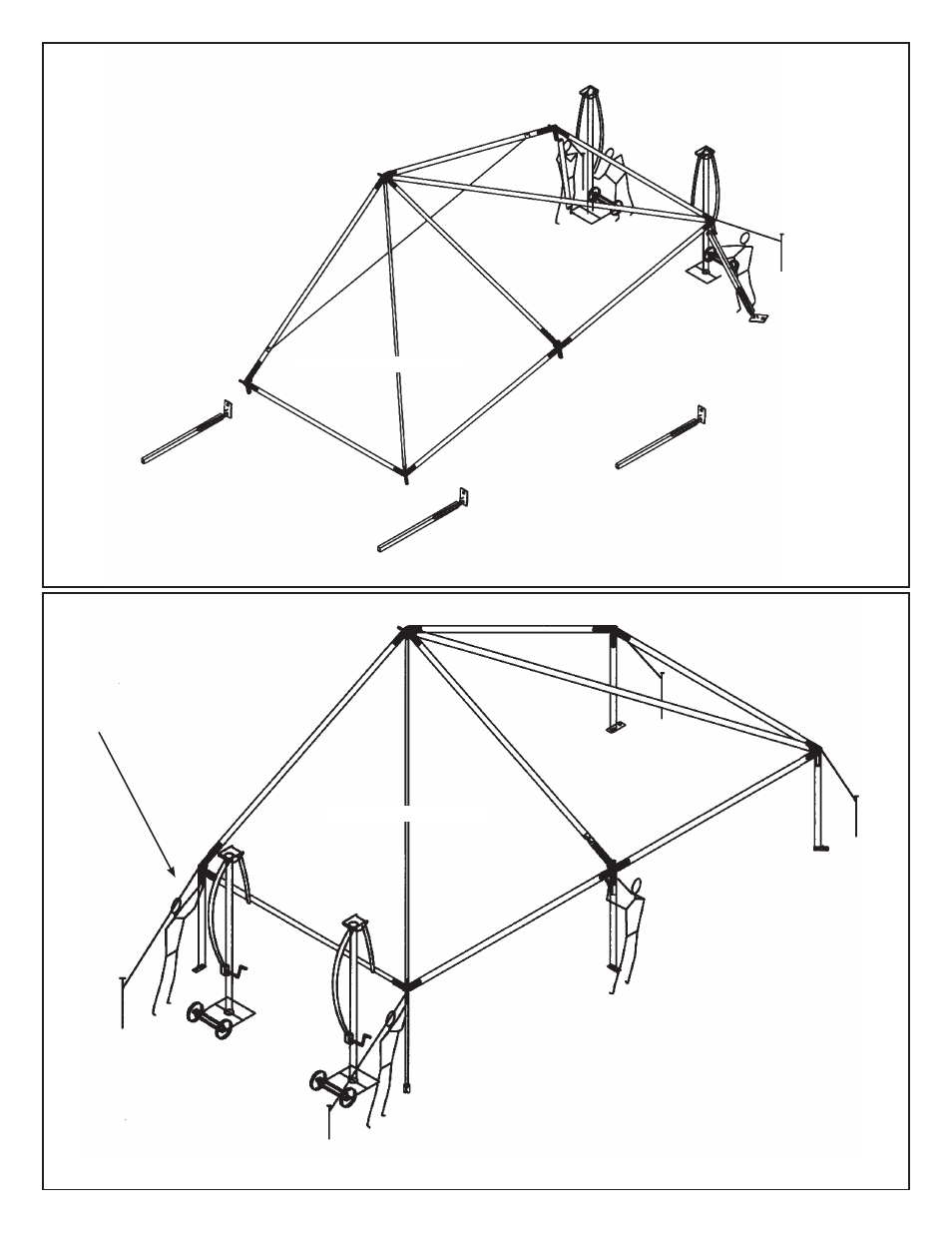

LIFT FIRST SIDE OF FRAME AND
SLIDE UPRIGHTS ONTO BOTTOMS
OF EAVE WELDMENTS AND PIN.

NOTE: ONLY FIXED-BASE
UPRIGHTS ARE TO BE USED
IN END MODULES.

FOR RECTANGULAR UNITS, FIRST CONSTRUCT
HIP ENDS, INSTALLING FABRIC LOOSELY AND
RAISING EACH SIDE TO INSTALL UPRIGHTS,
(JUST AS IN THE SQUARE TENT ON PRECEDING
PAGES.)

COMPLETING THE HIP END

LIFT SECOND (OPPOSITE) SIDE OF
HIP END AND PIN UPRIGHTS INTO
POSITION. WHEN ALL UPRIGHTS
ARE SECURE, THE CROSS-CABLE
CAN BE REMOVED.

FABRIC NOT SHOWN

HIP END FABRIC INSTALLED THE
SAME AS ON SQUARE UNITS (SEE
ILLUSTRATION ON PAGE 10)

FABRIC NOT SHOWN
