Page 16
16

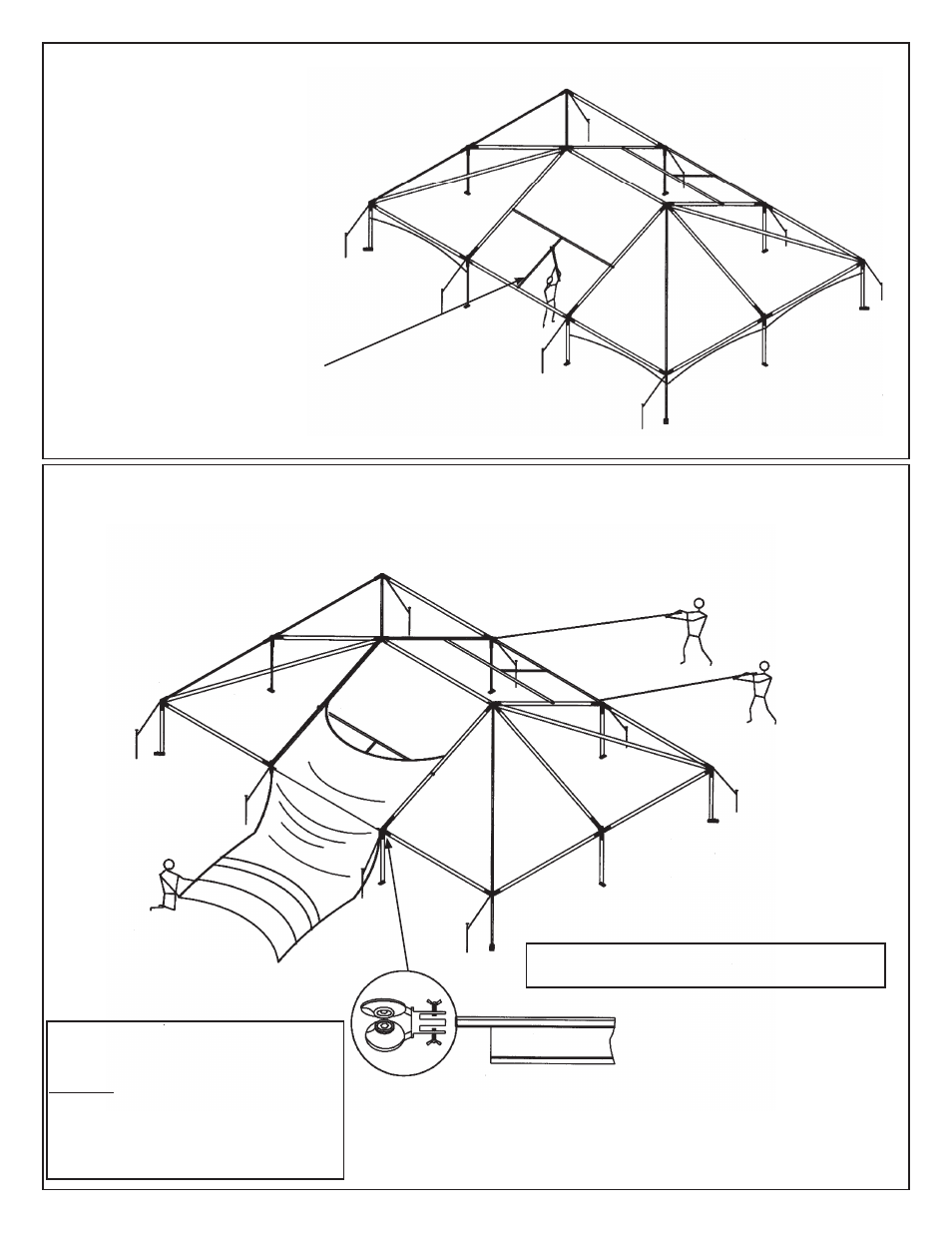

INSTALLING MID PANEL
INSERT FINGERS OF WHEELED PANEL GUIDE
INTO THE OPEN END OF THE RAFTER AND
WELDMENT. TIGHTEN THE BUTTERFLY NUT.
REVERSE FOR OPPOSITE SIDE OF BAY.
RAFTER
WHEELED
PANEL
GUIDE
NOTE: HIP END FABRIC PANELS NOT SHOWN
SO THAT THE FRAME WILL BE MORE VISIBLE.
PULL MID PANEL UP AND OVER THROUGH
CHANNELS IN RAFTER EXTRUSIONS.
PURLIN SUPPORTS IN 20’ MID BAYS
IN 20’ MID BAYS, INSTALL A SUPPORT
PURLIN BETWEEN THE EAVE AND THE
PURLIN AT THE MID-RAFTER LOCATION.
THIS SUPPORT WILL BRACE AGAINST
INWARD DEFLECTION OF THE EAVE BAY
THAT COULD OTHERWISE RESULT
IN WATER PONDING IN THE 20 FT BAY.
NOTE: TO ENSURE THAT MID GOES
IN SMOOTHLY AND TO MINIMIZE
CHANCE OF DAMAGE TO FABRIC,
ALWAYS USE THE WHEELED PANEL
GUIDE TO FEED KEDAR INTO FRAME
CHANNELS. SEE NEXT PAGE FOR
INFORMATION ON HOW TO ATTACH
PULL ROPES TO MIDS.
