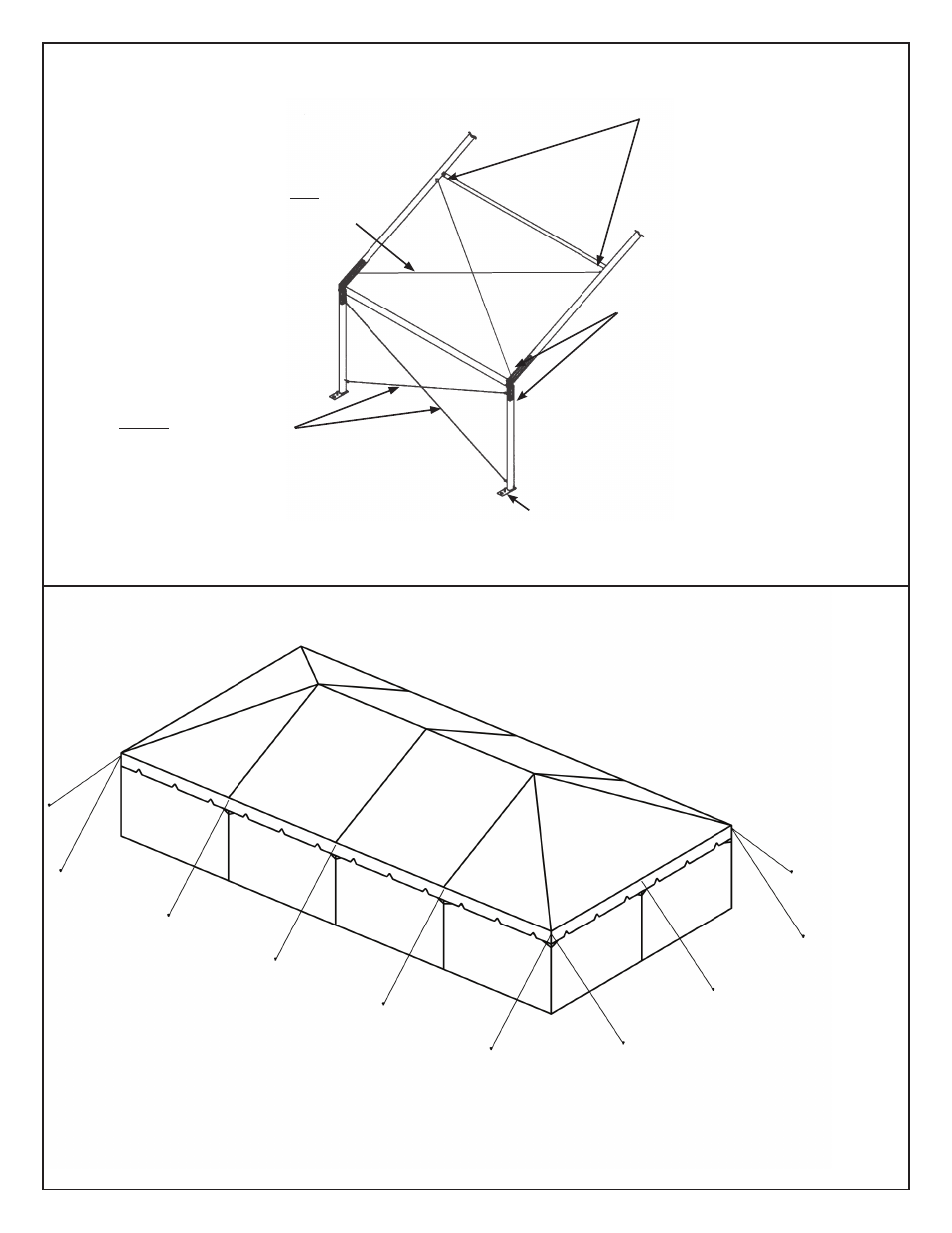

30’ NAVI-TRAC
COMPLETE
WITH (2) 15’ MID BAYS
1. ALL ENGINEERING ON THE 30’ NAVI-TRAC WAS DONE WITH THE WALLS IN PLACE. (FULLY
ENCLOSED). SEE NEXT PAGE FOR SIDEWALL INSTALLATION.
2. INSTALL, STAKE, AND TENSION ALL GUY WEBS, AS SHOWN. TENSION FABRIC SO THAT ALL CATENARY
ARCHES ARE EQUIDISTANT BELOW THE EAVE BARS.
3. REVIEW PAGE 12 FOR GUYING AND TENSIONING INSTRUCTIONS.
X-CABLED BAYS
STAKE PLATES AT PROPER SPACING BEFORE
INSTALLING THE X-CABLES. THEN, ADJUST
TURNBUCKLES UNTIL CABLE IS SNUG
REMOVE NUTS FROM THE BOLTS THAT PIN THE
BASEPLATE TO THE UPRIGHT. TURN BOLTS SO THE
THREADS ARE TO THE INSIDE (TOWARD CENTER OF
BAY). THREAD CABLE EYE NUTS ONTO BOLTS TO
SECURE THE CABLE.
NAVI-TRAC UNITS 100 FT. OR MORE IN LENGTH MUST HAVE AN X-CABLED
BAY NEAR THE MIDDLE OF THE UNIT (AND/OR EQUALLY SPACED) FOR
EVERY 100 FT. UNIT OF LENGTH.
SUBSTITUTE BOLTS FOR PINS
AT THE TOP OF BOTH UPRIGHTS
AND BOTTOM OF BOTH RAFTERS.
THREADS SHOULD POINT INWARD
TOWARD CENTER OF BAY. THREAD
CABLE EYE NUTS ONTO EACH BOLT
TO SECURE THE CABLES AS SHOWN.
FOR CABLE CONNECTIONS AT MID
PORTION OF RAFTERS, INSERT
THE BOLTS IN THE HOLES OF
THE RAFTER THAT ARE JUST
BELOW THE PURLIN CONNECTION.
THREADS SHOULD POINT INWARD
TOWARD CENTER OF BAY. THREAD
CABLE EYE NUTS ONTO EACH
BOLT TO SECURE THE CABLES AS
SHOWN.
PURLIN
X-CABLING IS IDENTICAL
ON BOTH SIDES OF THE
STRUCTURE.
RAFTER X-CABLES ARE
COLOR-CODED RED
AND LABELED 10, 15, OR
20 ACCORDING TO BAY
SIZE.
UPRIGHT X-CABLES ARE COLOR-
CODED GREEN AND LABELED 10,
15, OR 20 ACCORDING TO BAY
SIZE.
