Anchor NAVI-TRAC 30 WIDE HIP-END - Manual (Page 17)

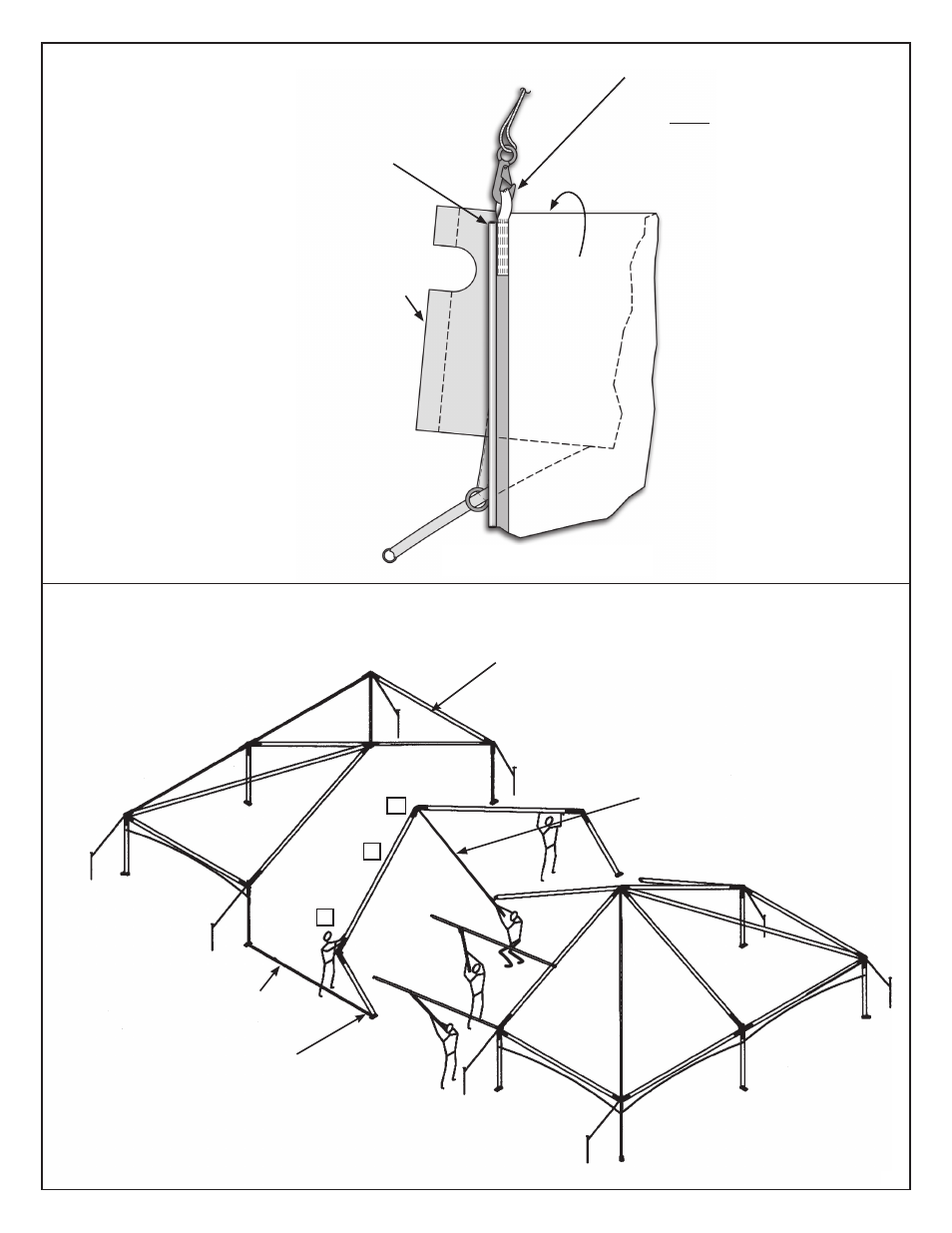

UNITS WITH (2) OR MORE MID BAYS
IN UNITS WITH MULTIPLE MIDDLE BAYS, THE SECOND HIP
END MODULE CAN BE ASSEMBLED AT THE SAME TIME AS
THE FIRST OR LATER AFTER THE MIDDLE BEAMS HAVE
BEEN INSTALLED.
ADDITIONAL GUIDE BARS
MAY BE PURCHASED
1
2
3
MIDDLE BEAMS THAT ARE NOT A PART
OF AN END MODULE USE THE HINGED
BASEPLATE (FOR PIVOTING TO VERTICAL).
FIXED PLATES ARE STAMPED “END” AND
SHOULD BE USED ONLY ON END MODULES.
WHEN FRAME IS COMPLETE, MID
PANELS ARE INSTALLED THE SAME AS
PREVIOUSLY SHOWN IN THE SINGLE MID BAY
CONFIGURATION.
FOR EASE OF ASSEMBLY,
MAKE CONNECTIONS IN
ORDER AS NUMBERED.
17
PUSH POLE MAY BE USED TO HELP IN
PULLING UP MIDDLE BEAMS. INSERT
HOOK INTO U BAR ON RIDGE WELD-
MENT AND TWIST POLE TO LOCK
INTO PLACE. UNTWIST POLE TO DIS-
ENGAGE ONCE POLE IS RAISED.
DIAGRAM SHOWING UNDER
SIDE OF FABRIC AT EAVE.
FOLD CURTAIN AND CATENARY BACK
ON TOP OF FABRIC SO THAT THEY
ARE OUT OF THE WAY.
SNAP OF PULL ROPE MUST BE
FASTENED TO PULL WEB ON
UNDER SIDE OF FABRIC PIECES.
SNAP MUST FACE AWAY FROM
KEDAR.
KEDAR
FLAP - ONLY ONE
SIDE OF MID OR
END WILL HAVE
THE FLAP.
SAFE ATTACHMENT OF PULL
ROPES TO FABRIC
