11. System Status and Reports
91 AirLive WIAS-3200N User’s Manual

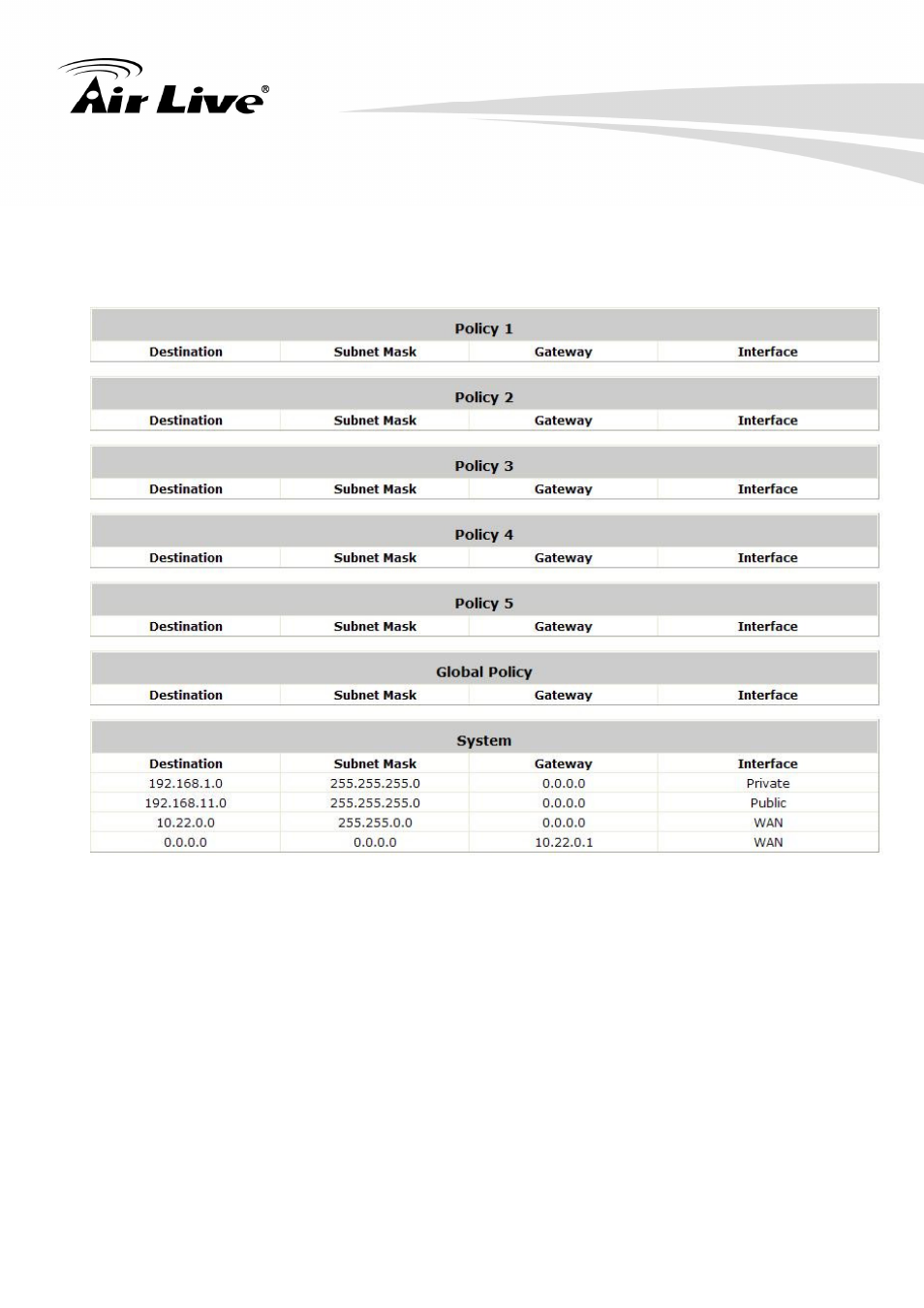

11.1.3 Routing Table
View System Status, go to: Status >> Routing Table.
All the Policy Route rules and Global Policy Route rules will be listed here. Also it will
show the System Route rules specified by each interface.
y Policy 1~5: Shows the information of the individual Policy from 1 to 5.
y Global Policy: Shows the information of the Global Policy.
y System: Shows the information of the system administration.
¾ Destination: The Destination IP address.
¾ Subnet Mask: The Subnet Mask of the IP address range.
¾ Gateway: The Gateway IP address of the interface.
¾ Interface: Including WAN, Private and Public.
11.1.4 Current Users
View Current Users, go to: Status >> Online Users.
In this page, each online user’s information including Username, IP Address, MAC
Address, Pkts In, Bytes In, Pkts Out, Bytes Out, Idle and Kick Out will be shown.
