2. System Overview and Getting Started
7
AirLive WIAS-3200N User’s Manual
2.3 Hardware
Descriptions

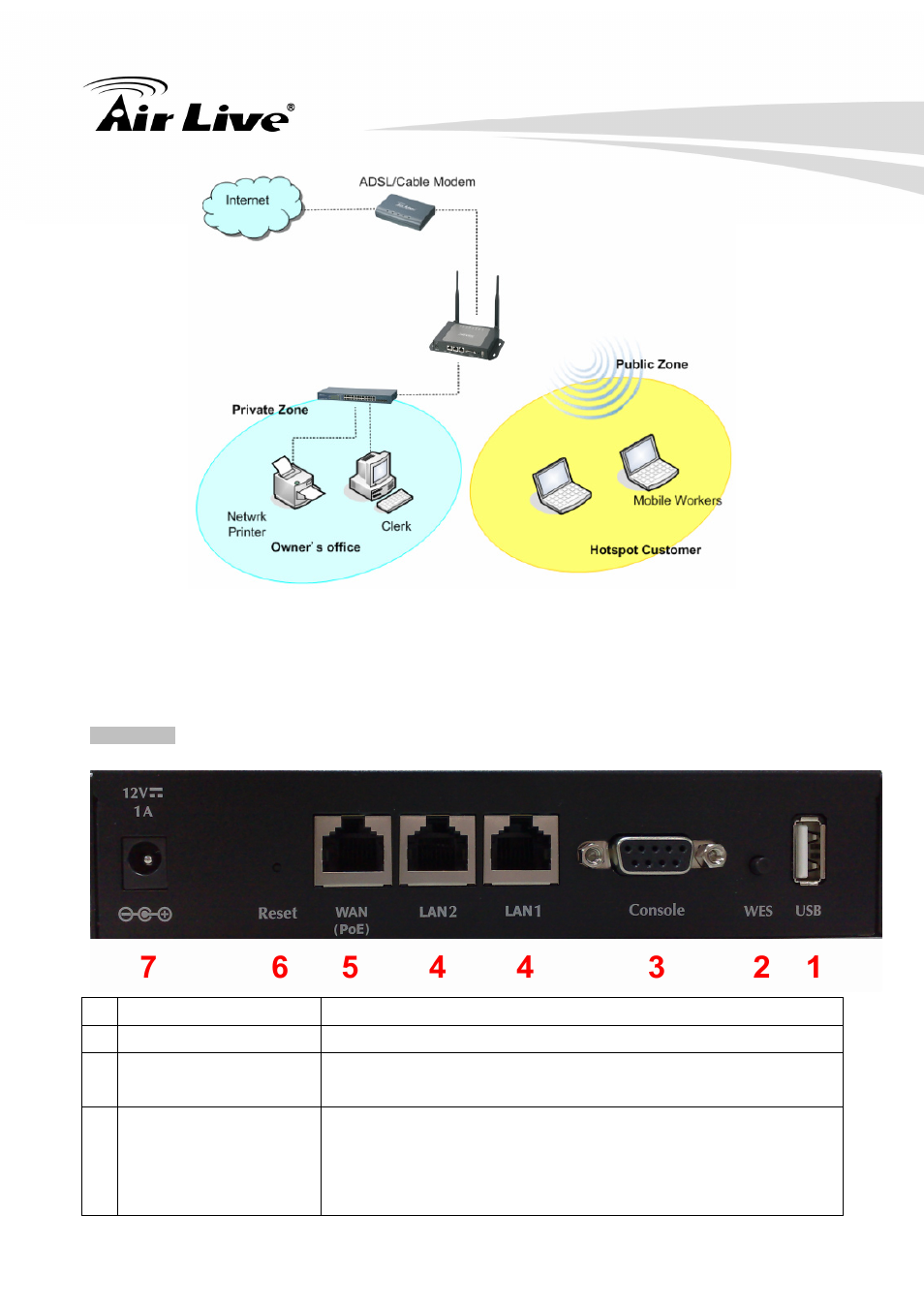

Front Panel
1
USB
For future usage only.
2
WES
Press to start running WES (WDS Easy Setup) process.
3
Console
Attach the RS-232 console cable here, for management use
only.
4
LAN1/LAN2
Attach Ethernet cables here for connecting to the wired local
network. LAN1 maps to Private Zone and requires no user
authentication, LAN2 maps to Public Zone and by default
requires user authentication.
