5. Reset Button
The Reset Button is located on the back panel.
To restore to the factory default, please follow the steps:
(1.) Unplug the power jack to turn off the power of the camera.
(2.) Insert a pin into the reset hole. Sense a button and keep it pressed until instructed
to release.
(3.) Plug in the power jack to turn on device, and the status LED will be quick flashing
after a few minutes.
(4.) Release the button (remove the pin from the reset hole). The camera should now
be back to factory default.
6. GPIO:
The 7 pin terminal block includes 4 input ports and 1 output ports.
7. Power Jack:
The input power is DC 12V, 2A.
Note: ONLY use package power adapter supplied with the internet. Otherwise, the
product may be damaged.

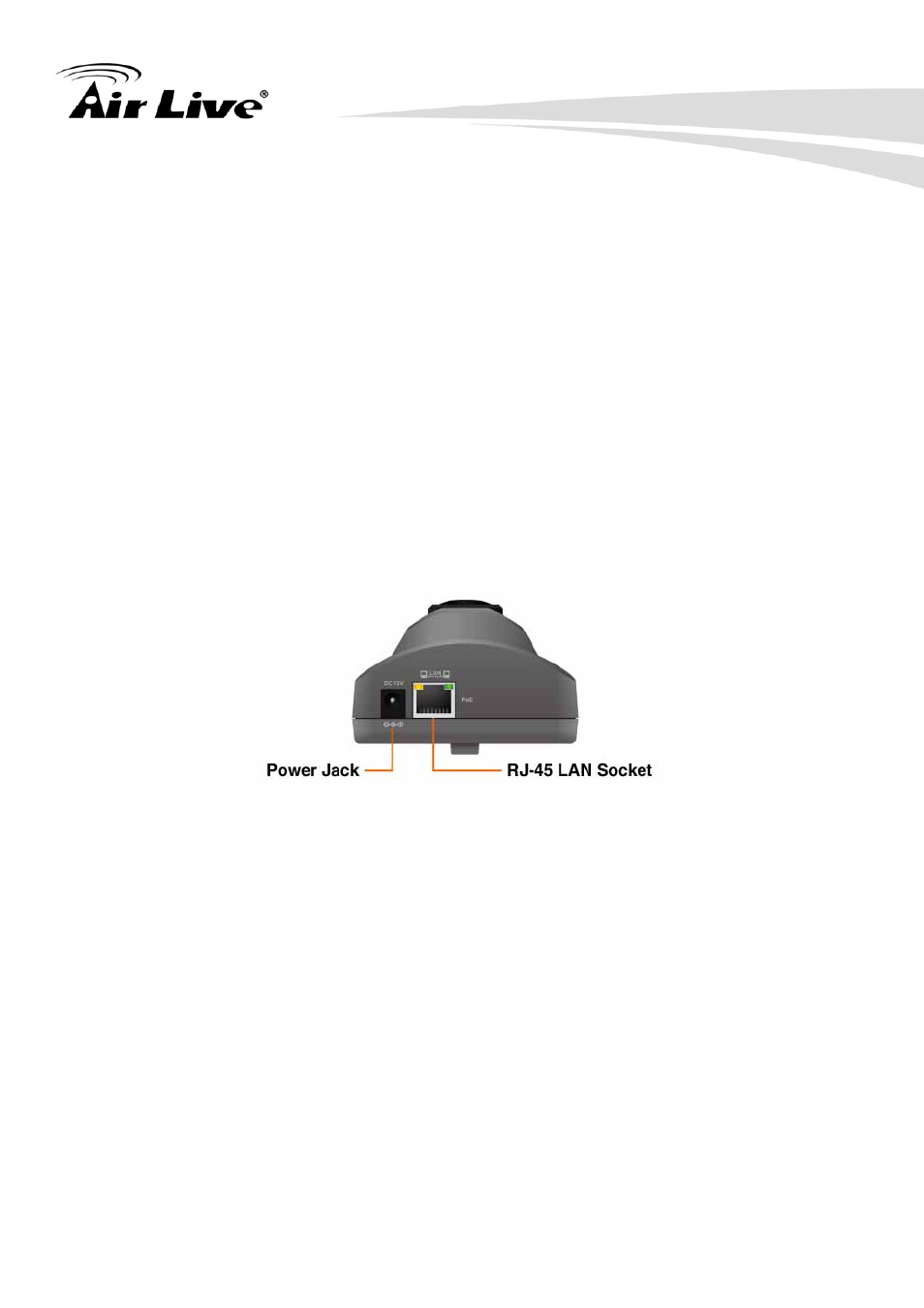

8. RJ-45 LAN Socket:
Connect to PC or Hub / Switch via a 10Base-T Ethernet or 100Base-TX Fast Ethernet
Cable.
This Ethernet port is built with audio-negotiation protocol which can detect or negotiate the
transmission speed of the network automatically. Please use CAT-5 cable to connect the
Network Camera to a 100Mbps Fast Ethernet network switch or hub.
Note: ONLY use one power source, either from DC or from 802.3af Power over Ethernet.
