5.5 Operational LED Status Display
The boot‐up process starts as soon as the firewall is supplied with a voltage source. With the aid of the Lan‐in
LEDs it is possible to check whether the Firewall is booting up as well. The table herunder provides boot‐up
process LED blink frequency via which it is possible to check that the device is booting up correctly. In the
example, no LAN‐in cable / PoE is connected up.
The minute the traffic display comes up on the LCD, the boot up process has been successfully concluded.

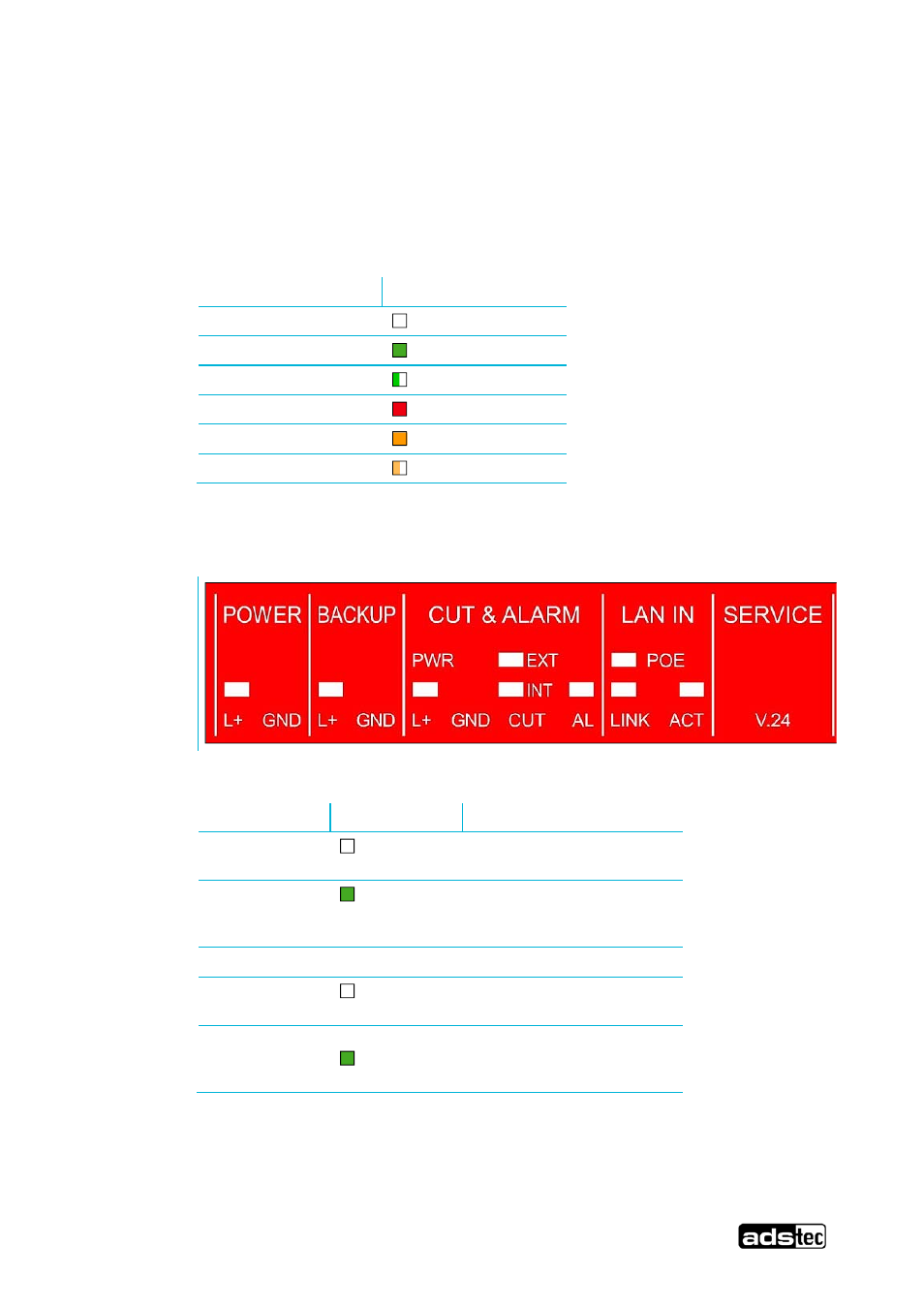

State of theLED representation
aus
grün
grün blinkend
rot
orange
orange blinkend
5.5.1 Power Supply / Cut & Alarm / LAN‐IN
Abb. 5:
POWER Signal Action
L+ The device is not supplied with
a power.
L+ The device is provided with
voltage via POWER and is ready
for operation.
BACKUP Signal Action
The device is not supplied with
a backup power.
The device is provided with
voltage via POWER and is ready
for operation.
