4.3.2 Wall mounting
1. Provide for screws on the relative device mounting wall so that they are set horizontally level, with a distance
between screws amounting to 170mm.
2. Attach on the Firewall by way of the appropriate cavities as illustrated.

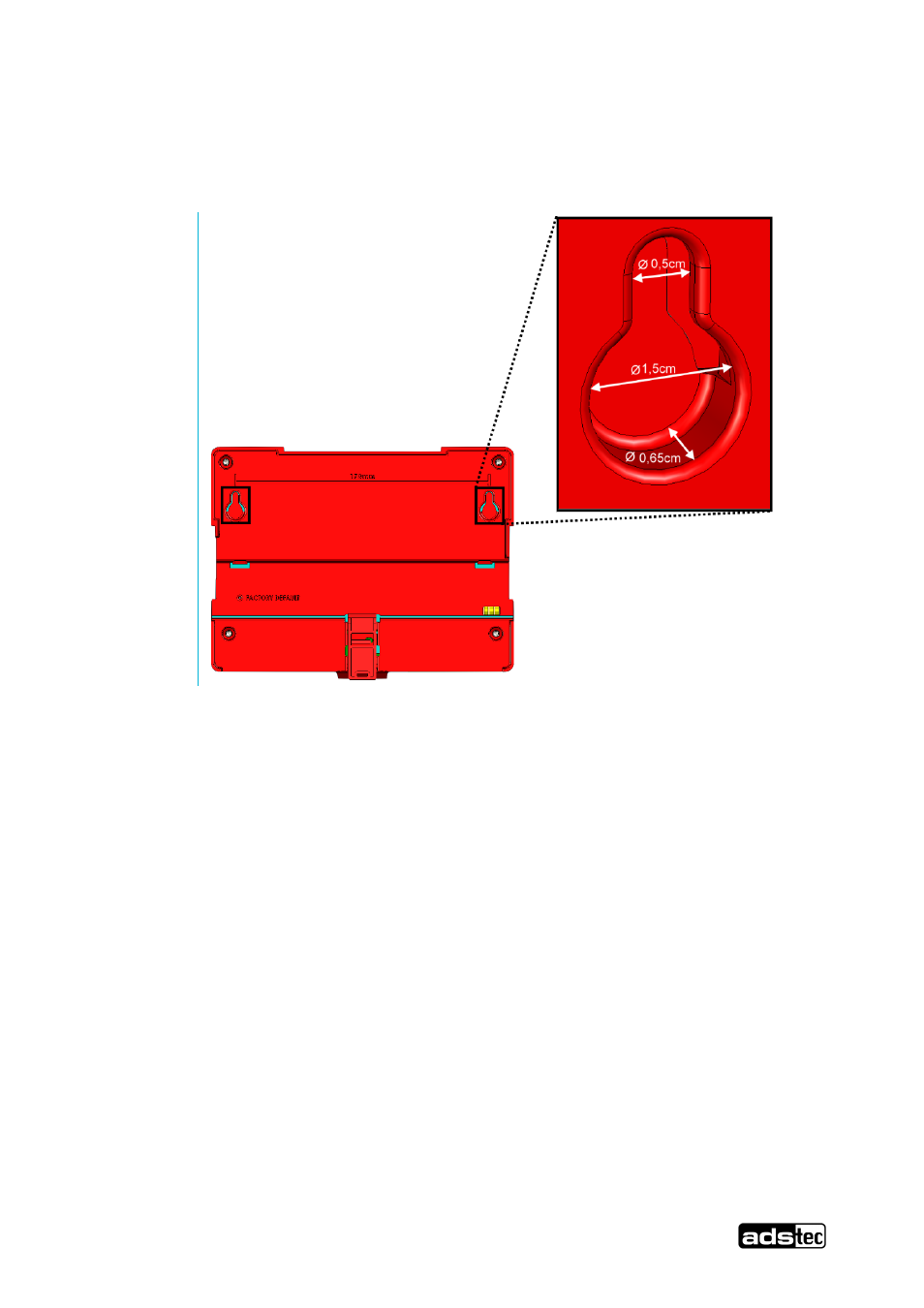

Abb. 4:
To release the unit from the DIN rail, proceed in reverse order.
