Ethernet Connection

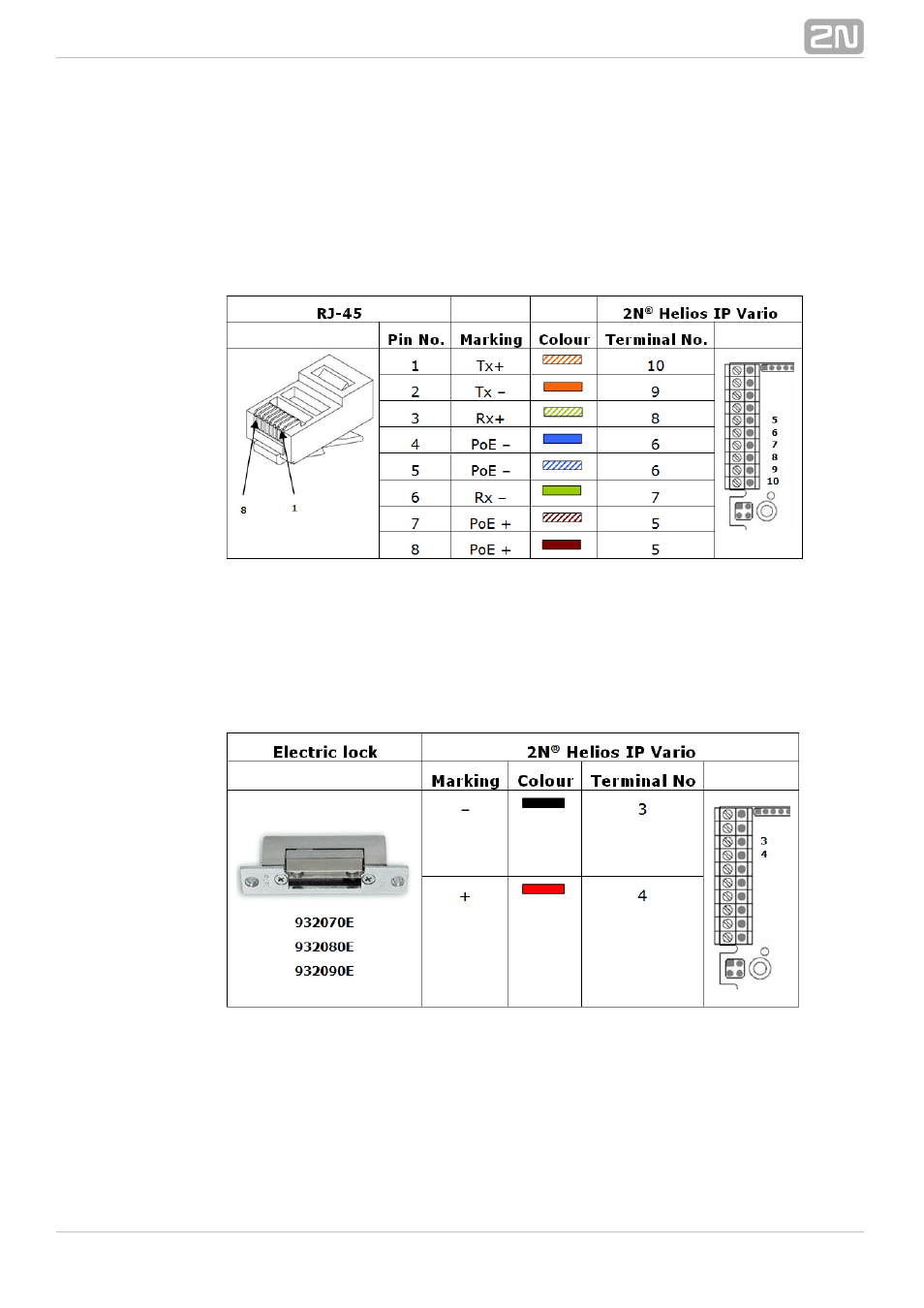

For the connections and meanings of the wires see the table below. Join UTP cable
wires 4 (blue) and 5 (white-blue) and attach them under terminal 6 on 2N

Helios IP

In the same way, join wires 7 and 8 and place them under terminal 5 of

Vario

Helios IP Vario

Terminal Block Connections

Figure:

Electric Lock Connection

The electric lock can be connected to terminals 3 and 4 of terminal block X2.

Terminal Block Connection for Electric Lock

Figure:

Terminals 3 and 4 are connected to a relay on the

board. The

Helios IP Vario

relay terminals may act as normally open or normally closed contacts. Configuration is
performed through the configuration connector X1 as described in the

Configuration Connector Connection subsection. Set on the configuration connector
