Acoustic Signalling and Keypad Configuration 3.1
47
$HeliosId$ 2N ® Helios IP identifier
Miscellaneous subsection.
Internal application launched
after turning on or restarting of 2N
® Helios IP, the internal
application of 2N ® Helios IP is launched. A successful launch is
signalled by this tone combination.
Connected to LAN, IP address received
after the launch of the internal application 2N
® Helios IP logs into
the LAN. A successful login is signalled by this tone combination.
Disconnected from LAN, IP address lost
whenever the UTP cable is disconnected from 2N
® Helios IP, this
status is signalled by this tone combination.
Invalid telephone number or invalid unlocking code
you can dial an extension telephone number or enter the door-
opening code using the keypad. An invalid code is signalled by
this tone sequence.
Switching to default network parameters
after power up, a 30-second timeout is set for entering the
resetting code. For switching to default network parameters refer
to the Switching to Default Network Parameters – Static IP
Address and Switching to Default Network Parameters – Dynamic
IP Address subsections.
Call end signalling
a time limit can be set after which your call will be terminated. To
prolong a call, push a VoIP telephone key. The time limit is set
due to protection against call blocking.
Connected call for VoIP phone-to-2N ® Helios IP calling
a short tone is played to signal call connection.

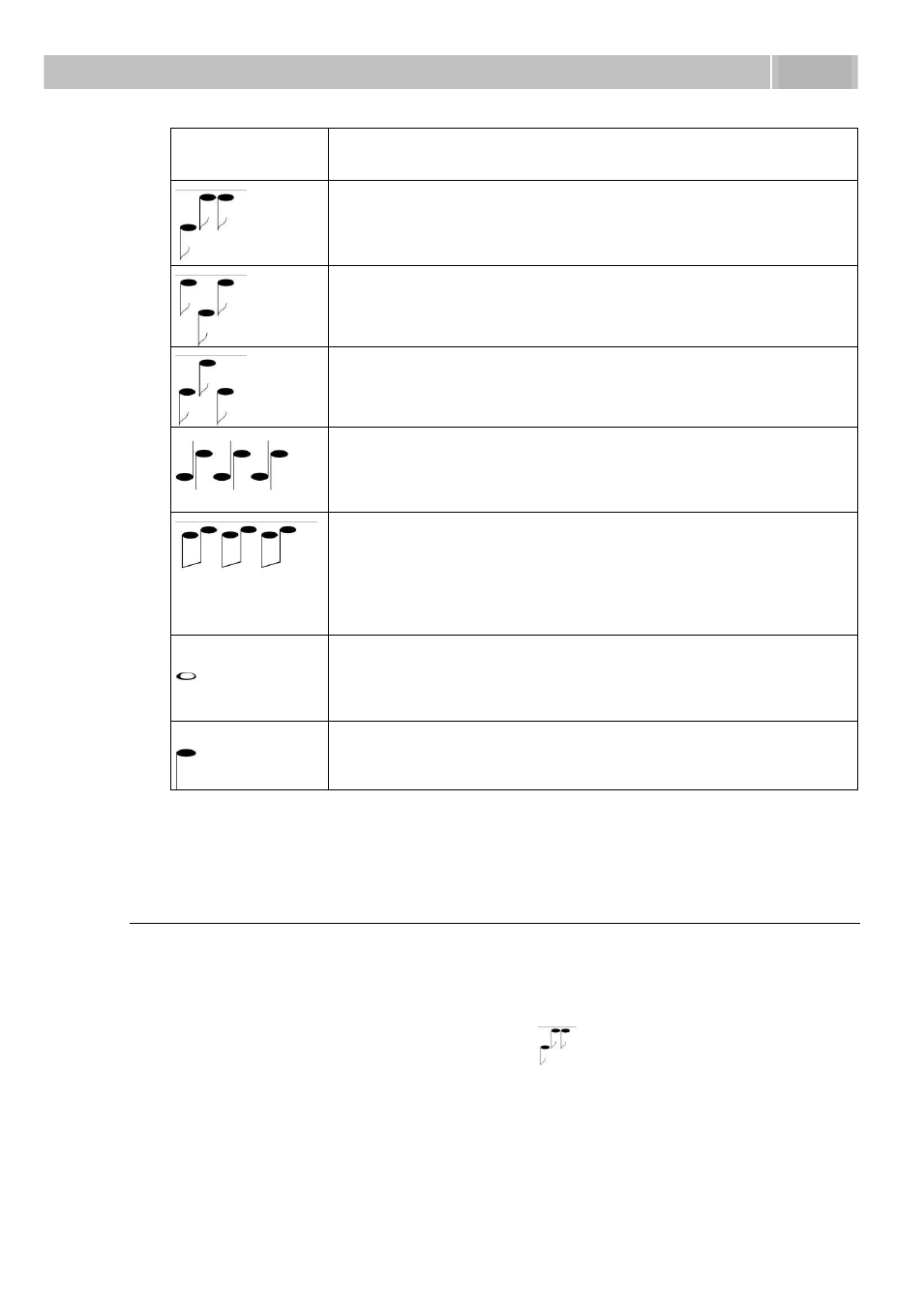

Table 3.1 List of Tone Signals
Switching to Default Network Parameters
– Static IP
Address
Switching to the default network parameters with the static IP address can be
performed in two ways. Either through a web interface as described in the Network
subsection or by pushing a combination of the quick dialling buttons as shown in
Figures 3.1–3.3. Upon resetting, the web server is automatically switched on if
switched-off before. The buttons have to be entered within 30 seconds after the
internal application launch as signalled by the
tone sequence. The maximum
delay between the buttons is 2 s.
