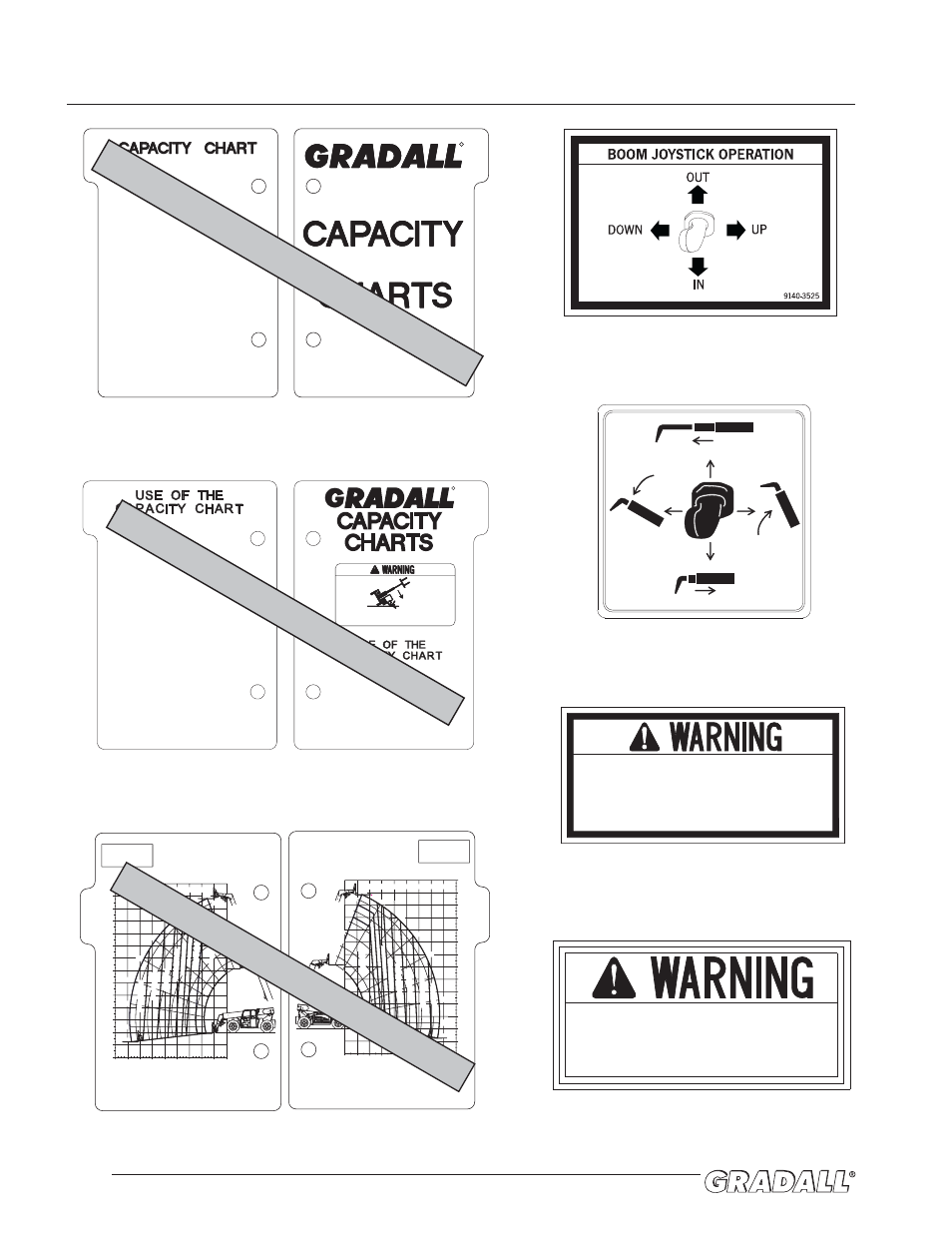

DECALS
2.4
9132-3030
NEVER OPERATE MACHINE WITHOUT
CONSULTING PROPER CAPACITY CHART FOR THE
CARRIAGE/FORK COMBINATION BEING USED.
R
9140-3618
FRONT
GENERAL NOTES
9140-3618
LEVEL GRADALL HANDLER BEFORE LIFTING ABOVE 4 FT.
USE CAPACITY CHART FOR SPECIFIC ATTACHMENT ON MACHINE.
FOR OTHER ATTACHMENTS CONSULT A GRADALL DEALER
FOR LOAD RATINGS NOT LISTED.
USE LARGEST NUMBER VISIBLE FROM THE CAB TO
DETERMINE BOOM EXTENSION.
MATCH WITH BOOM ANGLE TO DETERMINE ALLOWABLE LOAD.
FIGURES SHOWN ARE STACKING CAPACITY TRUCK LEVEL.
RATED LIFTING CAPACITIES SHOWN ARE WITH MACHINE ON A FIRM,
LEVEL SURFACE WITH UNDAMAGED, PROPERLY INFLATED TIRES.
MACHINE SPECIFICATIONS AND STABILITY ARE BASED ON RATED LIFT
CAPACITIES AT SPECIFIC BOOM ANGLES AND BOOM LENGTHS.
IF SPECIFICATIONS ARE CRITICAL, THE PROPOSED APPLICATION
SHOULD BE DISCUSSED WITH YOUR DEALER.
DO NOT EXCEED RATED LIFT CAPACITY LOADS, AS UNSTABLE AND
DANGEROUS MACHINE CONDITIONS WILL RESULT.
DO NOT TIP THE MACHINE FORWARD TO DETERMINE ALLOWABLE LOAD.
CERTAIN CARRIAGE/FORK COMBINATIONS MAY CAUSE HANDLER TO TIP
WITHOUT LOAD WHEN EXTENDED INTO "NO OPERATION" ZONE AS NOTED
ON CAPACITY CHART.
CAPACITY LIMITS FOR THIS UNIT ARE BASED IN
ACCORDANCE WITH STANDARDS LISTED ON SERIAL
NUMBER PLATE.
BACK
SAMPLE ONLY - USE CHART IN CAB
Located on dashboard
S/N 0193001 thru 0160000668
P/N 9140-3618
Located on right cab wall
S/N 0193001 thru 0160000668
P/N 9140-3525
Located on right cab wall
and cab fender
S/N 0193001 thru 0160000668
P/N 9132-3030
9150-3102 REV. -
Located on right cab wall
S/N 0160000683 thru Current
P/N 9150-3102
Located on dashboard
S/N 0160000683 thru Current
P/N 9151-3207
Instructions
9151-3207 REV.-
TWO METHODS OF USING THE CAPACITY CHART.
Method 1
1. The operator must determine:
BOOM EXTENSION NUMBER where the load
is to be placed.
BOOM ANGLE where the load is to be
placed.
2. On the capacity chart, find the arc for the boom
extension number, and follow it down to the boom
angle.
3. The number in the load zone where these two cross
is the maximum capacity for this lift. If the two cross
at a division between zones, the smaller number
must be used.
Method 2
1. The operator must determine:
HEIGHT where the load is to be placed.
DISTANCE from the front of the machine
where the load is to be placed.
2. On the capacity chart, find the line for the height and
follow it over to the distance.
3. The number in the load zone where the two cross is
the maximum capacity for this lift. If the two cross
at a division between zones, the smaller number
must be used.
For each method, the number in the load zone must be
equal to or greater than the weight of the load to be
lifted. Determine the limits of the load zone on the
capacity chart by boom angle AND boom extension number.
Keep the load within theses limits.
Instructions
9151-3207 REV.-
R
The operator MUST:
1. Make sure the handler is on a firm, level surface
before lifting or placing a load.
2. Make sure that the capacity charts are for the
appropriate Gradall model.
3. Make sure that the Part Numver shown on the
attachment's Serial Number Plate matches the Part
Number shown on the capacity chart.
4. Be sure of the WEIGHT of the load to be lifted.
TIPOVER HAZARD. Failure to comply with
instructions could result in death or serious
injury.
SAMPLE ONLY - USE CHART IN CAB
BACK FRONT
Located on dashboard
P/N 9151-3042
9114-3286
DIESEL FUEL IS FLAMMABLE
EXTINGUISH ALL OPEN FLAME AND
SMOKING MATERIALS WHEN REFUELING
INJURY OR DEATH COULD RESULT
FROM FIRE.
Located on left cab wall
S/N 0193001 thru 0160000668
P/N 9114-3286
9151-3042 (B)
BACK
48" & 72" SLOPE PILER
DEDUCT 350 LBS
FROM ALL CAPACITIES
WHEN MACHINE IS
EQUIPPED WITH WINCH
MODEL
G9-43A
USE WITH:
9140-5101 48" SLOPE PILER CARRIAGE
9140-5079 72" SLOPE PILER CARRIAGE
RATED CAPACITY @ 2 FT. LOAD CENTER
48'
44'
40'
36'
32'
28'
24'
20'
16'
12'
8'
4'
0'
-4'
-8'
1
2
3
4
5
6
69°
60°
50°
40°
30°
20°
10°
0°
-6°
9
0 0 0 L
B
S
7 0 0
0 L
B
S
6000 LBS
5000 LBS
4 0 0 0 L
B
S
3000 LBS
2000 LBS
1 1
0 0 L
B
S
36' 0' 4' 8' 12' 16' 20' 24' 28' 32'
9151-3042 (B)
FRONT
USE WITH:
9140-5073 48" CARRIAGE
9140-5074 72" CARRIAGE
9140-5054 60" 3/4 YD. BUCKET (4,500 LB MAX. CAPACITY)
9140-5055 74" 1 1/4 YD. BUCKET (4,500 LB MAX. CAPACITY)
9140-5071 102" 1 1/4 YD. BUCKET (4,500 LB MAX. CAPACITY)
9140-5077 72" DRYWALL CARR. (4,000 LB MAX. CAPACITY)
9151-5036 WINCH (4,000 LB MAX. CAPACITY)
48" & 72" CARRIAGES
MODEL
G9-43A
DEDUCT 350 LBS
FROM ALL CAPACITIES
WHEN MACHINE IS
EQUIPPED WITH WINCH
1
2
3
4
5
6
9000 LBS
8000 LBS
7000 LBS
6 0 0 0 L
B
S
5000 LBS 4000 LBS
3 0 0 0 L
B S
2 0 0 0 L
B S
1 5 0 0 L
B
S
69°
60°
50°
40°
30°
20°
10°
0°
-6°
48'
44'
40'
36'
32'
28'
24'
20'
16'
12'
8'
4'
0'
-4'
-8'
RATED CAPACITY @ 2 FT. LOAD CENTER
36' 0' 4' 8' 12' 16' 20' 24' 28' 32'
SAMPLE ONLY - USE CHART IN CAB
