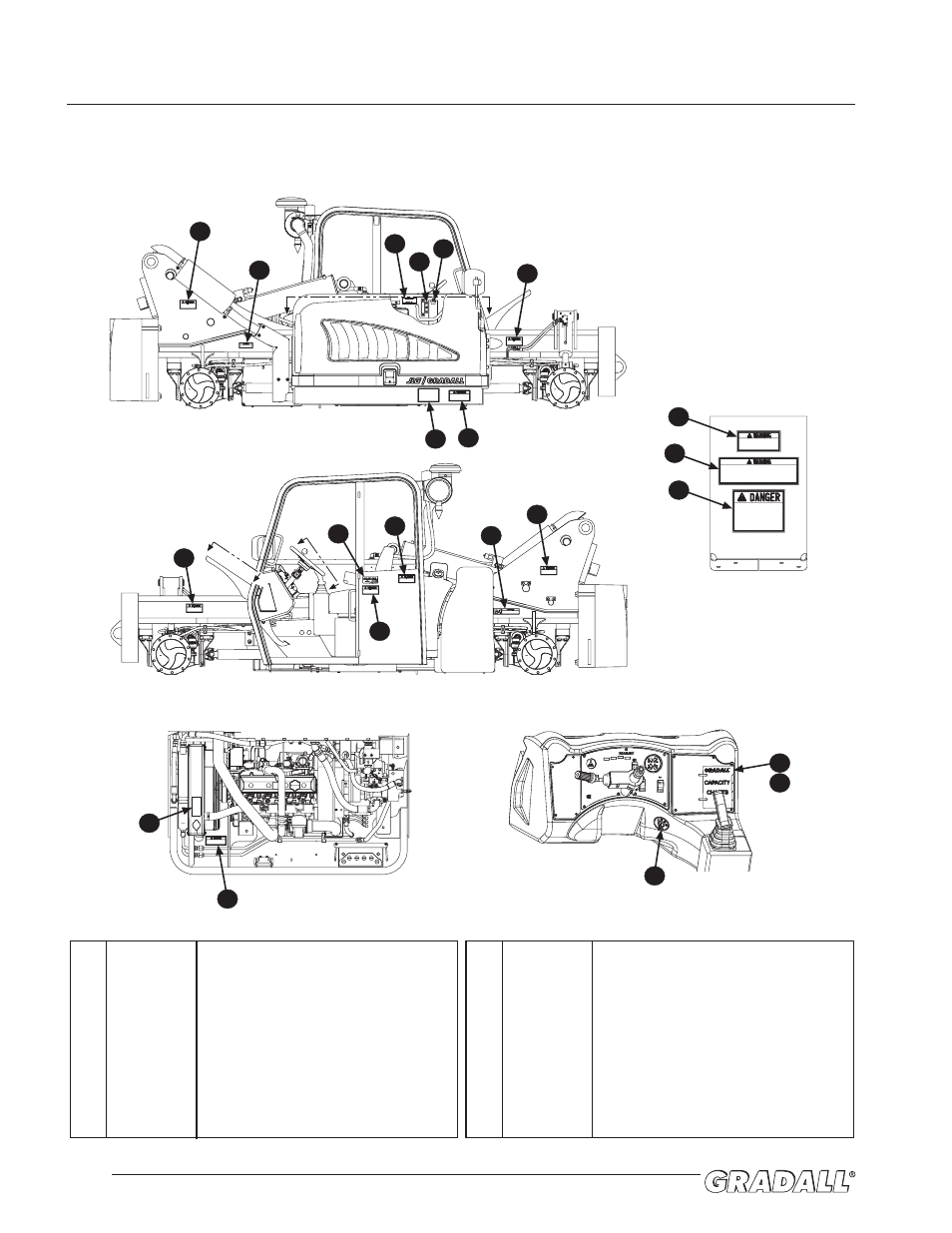

DECAL LOCATIONS
2.0
Figure 2-1
S/N 0193001 thru 0160000668
12
13
14
VIEW B-B
NEVER OPERATE MACHINE WITHOUT CONSULTING PROPER CAPACITY CHART FOR THE CARRIAGE/FORK COMBINATION BEING USED.
AVOID HIGH VOLTAGE LINES. IT IS UNLAWFUL TO PLACE ANY PART OF THIS MACHINE OR LOAD WITHIN 10 FEET OF HIGH VOLTAGE LINES UP TO 50,000 VOLTS. DEATH OR INJURY MAY RESULT FROM CONTACTING ELECTRIC LINES.
READ AND UNDERSTAND THE FOLLOWING PRIOR TO LIFTING PERSONNEL. WHEN LIFTING PERSONNEL USE ONLY A GRADALL MANUFACTURED PERSONNEL WORK PLATFORM. DO NOT DRIVE MACHINE WITH PERSONNEL IN PLATFORM. WHEN PERSONNEL ARE IN PLATFORM REMAIN SEATED IN CAB WITH PERSONNEL IN DIRECT LINE OF SIGHT. OPERATE CONTROLS LIGHTLY AND CAUTIOUSLY WHEN LIFTING PERSONNEL. READ AND UNDERSTAND PERSONNEL WORK PLATFORM USER'S MANUAL BEFORE LIFTING PERSONNEL. DO NOT USE PERSONNEL WORK PLATFORM WITHOUT THE PROPER GRADALL MATERIAL HANDLER/PERSONNEL WORK PLATFORM CAPACITY CHART DISPLAYED IN CAB. FAILURE TO COMPLY COULD RESULT IN SERIOUS INJURY OR DEATH.
9114-3281
STAY CLEAR OF MOVING PARTS WHILE ENGINE IS RUNNING. MOVING PARTS CAN CAUSE SERIOUS INJURY.
VIEW A-A
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
9114-3280 EXHAUST SYSTEMS CAN BE HOT. KEEP AWAY FROM EXHAUST SYSTEM WHEN HOT. HOT EXHAUST COMPONENTS CAN CAUSE SEVERE BURNS. 9114-3282
STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
R For Mobil Product Information, Call 1-800-662-4525. HYDRAULIC SYSTEM FILL WITH TRACTOR HYDRAULIC FLUID or equivalent. 9114-3288
Genuine Parts
A A
9114-3284
LEAD ACID BATTERIES PRODUCE FLAMABLE AND EXPLOSIVE GASSES WHEN CHECKING, TESTING, USING BOOSTER BATTERY OR CHARGING BATTERIES: * DO NOT USE SMOKING MATERIALS NEAR BATTERIES * KEEP FLAMES AND SPARKS AWAY FROM BATTERIES * WEAR SAFETY GLASSES * ASSURE BATTERY IS NOT FROZEN AND ELECTROLYTE IS AT PROPER LEVEL IN EACH CELL FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DAMAGE TO THE ELECTRICAL SYSTEM 9114-3285
JUMP STARTING INSTRUCTIONS WHEN JUMP STARTING MATERIAL HANDLER * NEVER ALLOW VEHICLES TO TOUCH * CONNECT THE POSITIVE (+) JUMPER CABLE TO POSITIVE (+) POST OF DISCHARGED BATTERY * CONNECT OPPOSITE END OF POSITIVE (+) JUMPER CABLE TO POSITIVE (+) POST OF BOOSTER BATTERY * CONNECT THE NEGATIVE (-) JUMPER CABLE TO NEGATIVE (-) POST ON BOOSTER BATTERY * CONNECT OPPOSITE END OF NEGATIVE (-) JUMPER CABLE TO GROUND POINT ON MACHINE AWAY FROM DISCHARGED BATTERY * FOLLOW STANDARD STARTING PROCEDURES * REMOVE CABLES IN REVERSE ORDER AFTER MACHINE HAS STARTED
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
7733-3027
9114-3283
NO RIDERS PERMITTED ON HANDLER. OPERATOR ONLY IN MACHINE WHILE RUNNING. RIDERS COULD FALL OFF MACHINE CAUSING SERIOUS INJURY OR DEATH.
9114-3286
DIESEL FUEL IS FLAMMABLE EXTINGUISH ALL OPEN FLAME AND SMOKING MATERIALS WHEN REFUELING INJURY OR DEATH COULD RESULT FROM FIRE.
9114-3282 STAY CLEAR OF PINCH POINT AREA ANYTIME ENGINE IS RUNNING. BEING IN PINCH POINT AREA COULD CAUSE SERIOUS INJURY OR DEATH.
DO NOT GO NEAR LEAKS 10814B * High pressure oil easily punctures skin causing serious injury, gangrene or death.
* If injured, seek emergency medical help. Immediate surgery is required to remove oil.
* Do not use finger or skin to check for leaks.
* Lower load or relieve hydraulic pressure before loosening fittings.
C
C
B
B
2
1
3
4
5
1
7 6
1
9
8
10
1
11
15
16
19
18
17
WORK PLA
TFORM
6 FT . MAST
9140-3618
48" & 72" CARRAIGE
100° SWING CARRIAGE
VIEW C-C
1 9114-3282 Warning Decal, Pinch Point
2 9114-3280 Warning Decal, Exhaust System
3 9114-3288 Hydraulic Oil Decal
4 9151-3198 Oil Level Decal
5 9140-3573 Hydraulic Fluid Decal
6 9114-3285 Instruction Decal, Jump Start
7 9114-3284 Warning Decal, Battery
8 7733-3027 Made in USA Decal
9 9114-3286 Warning Decal, Diesel Fuel
10 9114-3283 Warning Decal, No Riders
11 9108-3492 Warning Decal, Hydraulic Oil
12 9132-3030 Warning Decal, Capacity Chart
13 9055-3027 Warning Decal, Lifting Personnel
14 8060-3022 Danger Decal, High Voltage
15 8060-3026 Caution Decal, Cooling System
16 9114-3281 Warning Decal, Moving Parts
17 9141-3061 Ignition Switch Decal
18 9140-3618 Load Chart Cover
19 9151-3042 Capacity Chart
