SECTION 4 - BOOM & PLATFORM
4-8 – JLG Lift – 3121198
4.4 SLAVE CYLINDER
Removal
1. Swing the boom away from the tongue.
2. Place a suitable support or blocking under the plat-
form pivot.
3. Tag and disconnect the hoses running to the slave
cylinder. Cap or plug all open ends.

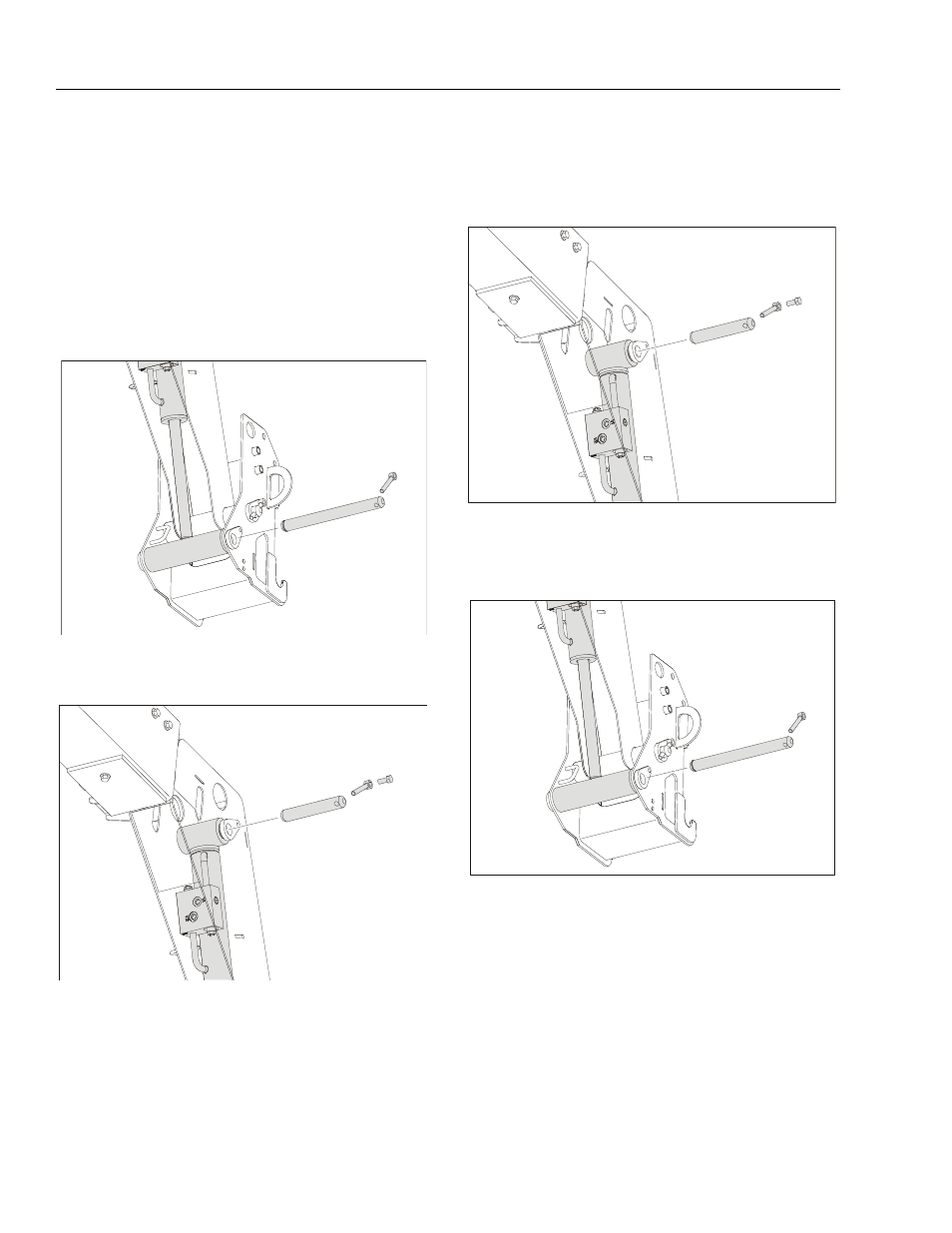

4. Remove the retaining pins and pivot pin from the rod
end of the cylinder.
5. Remove the retaining pins and pivot pin from the
barrel end of the cylinder and remove the cylinder
from the machine.
NOTE: The slave cylinder weighs approximately 23 lbs. (10
kg).
Installation
1. Lift the slave cylinder into position and install the
pivot pin and retaining pin into the barrel end of the
cylinder.
NOTE: The slave cylinder weighs approximately 23 lbs. (10
kg).
2. Install the retaining pins and pivot pin into the rod
end of the cylinder.
3. Connect the hoses running to the slave cylinder as
tagged during removal.
4. Function the slave cylinder through several cycles
and check for proper operation and any leakage.
