3121620 1850SJ 8-113
SECTION 8 ELECTRICAL
1001149976_PG 4 OF 7

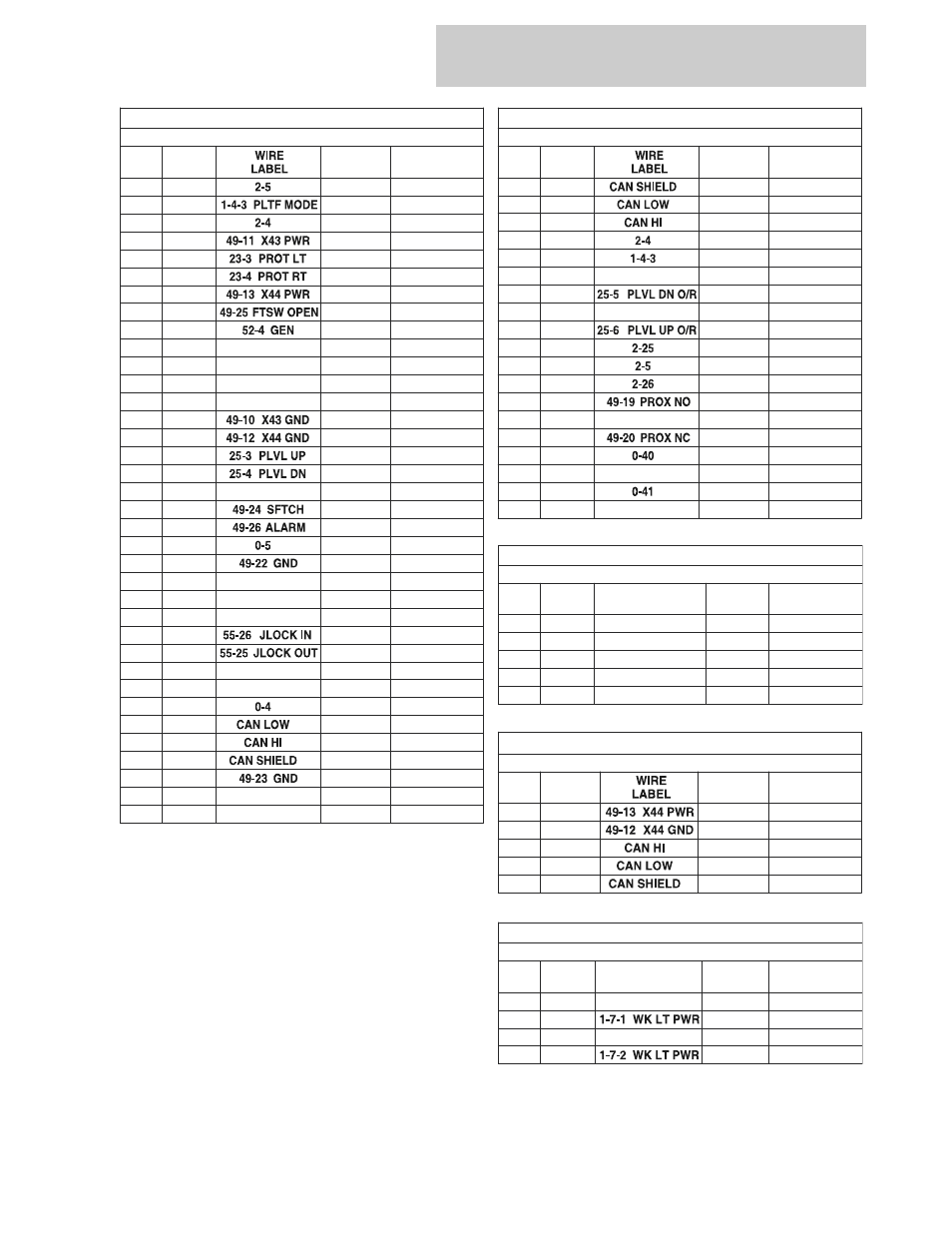

ITEM 24 - X392
CONNECTOR PART NUMBER: 4460884
CONN
POS
WIRE
COLOR
WIRE
LABEL
TO
1 BLK 0-40-3 X385 (1)
2 ORG X36A (13)
3 BLK 0-41-3 X385 (1)
4 ORG X36A (20)
ITEM 23 - X44A
CONNECTOR PART NUMBER: 1001120055
CONN
POS
WIRE
COLOR
GAUGE TO
1 BRN 20 AWG CO01-J7 (7)
2 WHT 20 AWG CO01-J7 (14)
3 BLU 20 AWG MS41 (11)
4 BLK 20 AWG MS41 (9)
5 GRY 20 AWG MS41 (7)
ITEM 22 - X43A
CONNECTOR PART NUMBER: 1001120055
CONN
POS
WIRE
COLOR
WIRE
LABEL
TO
1 BRN 49-11 X43 PWR CO01-J7 (4)
2 WHT 49-10 X43 GND CO01-J7 (14)
3 BLU CAN HI MS41 (12)
4 BLK CAN LOW MS41 (10)
5 GRY CAN SHIELD MS41 (8)
ITEM 21 - X33A
CONNECTOR PART NUMBER: 4460866
CONN
POS
WIRE
COLOR
GAUGE TO
1 SHLD 20 AWG MS41 (5)
2 GRN 20 AWG MS41 (3)
3 YEL 20 AWG MS41 (1)
4 YEL 18 AWG CO01-J7 (3)
5 RED 18 AWG SW35-2A (2A)
6
7 WHT 18 AWG S46 (2)
8
9 WHT 18 AWG S45 (2)
10 YEL 12 AWG X398 (1)
11 YEL 18 AWG CO01-J7 (1)
12 YEL 12 AWG X399 (1)
13 WHT 18 AWG CO01-J1 (33)
14
15 WHT 18 AWG CO01-J1 (1)
16 BLK 12 AWG X384 (1)
17
18 BLK 12 AWG X391 (1)
19
CONNECTOR PART NUMBER: 4460873
CONN
POS
WIRE
COLOR
TO
1 YEL X33A (11)
2 RED SW35-1A (1A)
3 YEL X33A (4)
4 BRN X43A (1)
5 WHT X36A (8)
6 WHT X36A (9)
7 BRN X44A (1)
8 WHT X38A (7)
9 WHT X38A (1)
10
11
12
13
14 WHT X43A (2)
14 WHT X44A (2)
15 WHT S45 (1)
16 WHT S46 (1)
17
18 WHT X38A (3)
19 WHT AH30+ (1)
20 BLK AH30- (1)
21 WHT X36A (3)
22
23
24
25 WHT X36A (10)
26 WHT X36A (11)
27
28
29 BLK X36A (12)
30 GRN MS41 (4)
31 YEL MS41 (2)
32 SHLD MS41 (6)
33 WHT X36A (17)
34
35
ITEM 20 - CO01-J7
GAUGE
16 AWG
16 AWG
16 AWG
16 AWG
GAUGE
20 AWG
20 AWG
20 AWG
20 AWG
20 AWG
GAUGE
18 AWG
18 AWG
18 AWG
20 AWG
18 AWG
18 AWG
20 AWG
18 AWG
18 AWG
20 AWG
20 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
18 AWG
20 AWG
20 AWG
20 AWG
18 AWG
