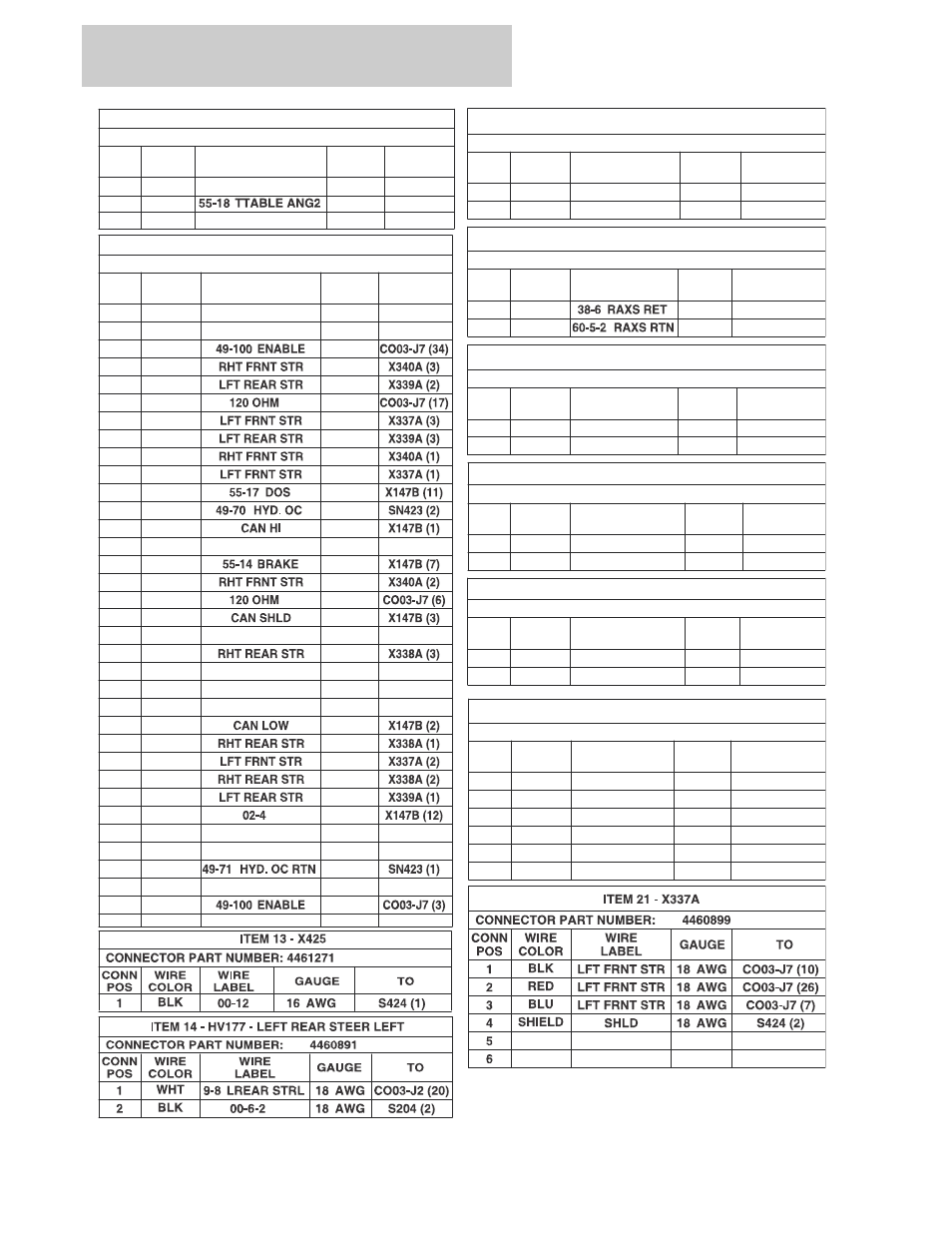

8-8 1850SJ 3121620
SECTION 8 ELECTRICAL
ITEM 20 - X339A
CONNECTOR PART NUMBER: 4460899
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 BLK LFT REAR STR 18 AWG CO03-J7 (28)
2 RED LFT REAR STR 18 AWG CO03-J7 (5)
3 BLU LFT REAR STR 18 AWG CO03-J7 (8)
4 SHIELD SHLD 18 AWG S424 (2)
5
6
CONNECTOR PART NUMBER: 4460891
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 38-4 RAXS EXT 18 AWG CO03-J2 (5)
2 WHT 60-5-1 RAXS RTN 18 AWG S168 (2)
CONNECTOR PART NUMBER: 4460891
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 9-3 LFRNT STRL 18 AWG CO03-J2 (34)
2 BLK 00-4-2 18 AWG S202 (2)
CONNECTOR PART NUMBER: 4460891
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 9-7 LREAR STRR 18 AWG CO03-J2 (9)
2 BLK 00-6-1 18 AWG S204 (2)
CONNECTOR PART NUMBER: 4460891
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 18 AWG CO03-J2 (7)
2 WHT 18 AWG S168 (2)
CONNECTOR PART NUMBER: 4460891
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 9-2 LFRNT STRR 18 AWG CO03-J2 (35)
2 BLK 00-4-1 18 AWG S202 (2)
ITEM 17 - HV176 - LEFT REAR STEER RIGHT
ITEM 15 - HV172 - LEFT FRONT STEER RIGHT
ITEM 18 - HV173 - LEFT FRONT STEER LEFT
ITEM 16 - HV164 - REAR AXLE SWG RETURN
ITEM 19 - HV163 - REAR AXLE SWG EXTEND
ITEM 12 - CO03-J7
CONNECTOR PART NUMBER: 4460873
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1
2
3 WHT 18 AWG
4 BLU 18 AWG
5 RED 18 AWG
6 WHT 18 AWG
7 BLU 18 AWG
8 BLU 18 AWG
9 BLK 18 AWG
10 BLK 18 AWG
11 WHT 18 AWG
12 WHT 18 AWG
13 YEL 18 AWG
14
15 WHT 18 AWG
16 RED 18 AWG
17 WHT 18 AWG
18 SHLD 18 AWG
19
20 BLU 18 AWG
21
22
23
24 GRN 18 AWG
25 BLK 18 AWG
26 RED 18 AWG
27 RED 18 AWG
28 BLK 18 AWG
29 YEL 18 AWG
30
31
32 WHT 18 AWG
33
34 WHT 18 AWG
35
ITEM 11 - CO03-J12
CONNECTOR PART NUMBER: 1001113961
CONN
POS
WIRE
COLOR
WIRE
LABEL
Not Used
Not Used
GAUGE TO
1
2 WHT 18 AWG SN243 (D)
3-6
