8-58 1850SJ 3121620
SECTION 8 ELECTRICAL
1001149971_PG 3 OF 4

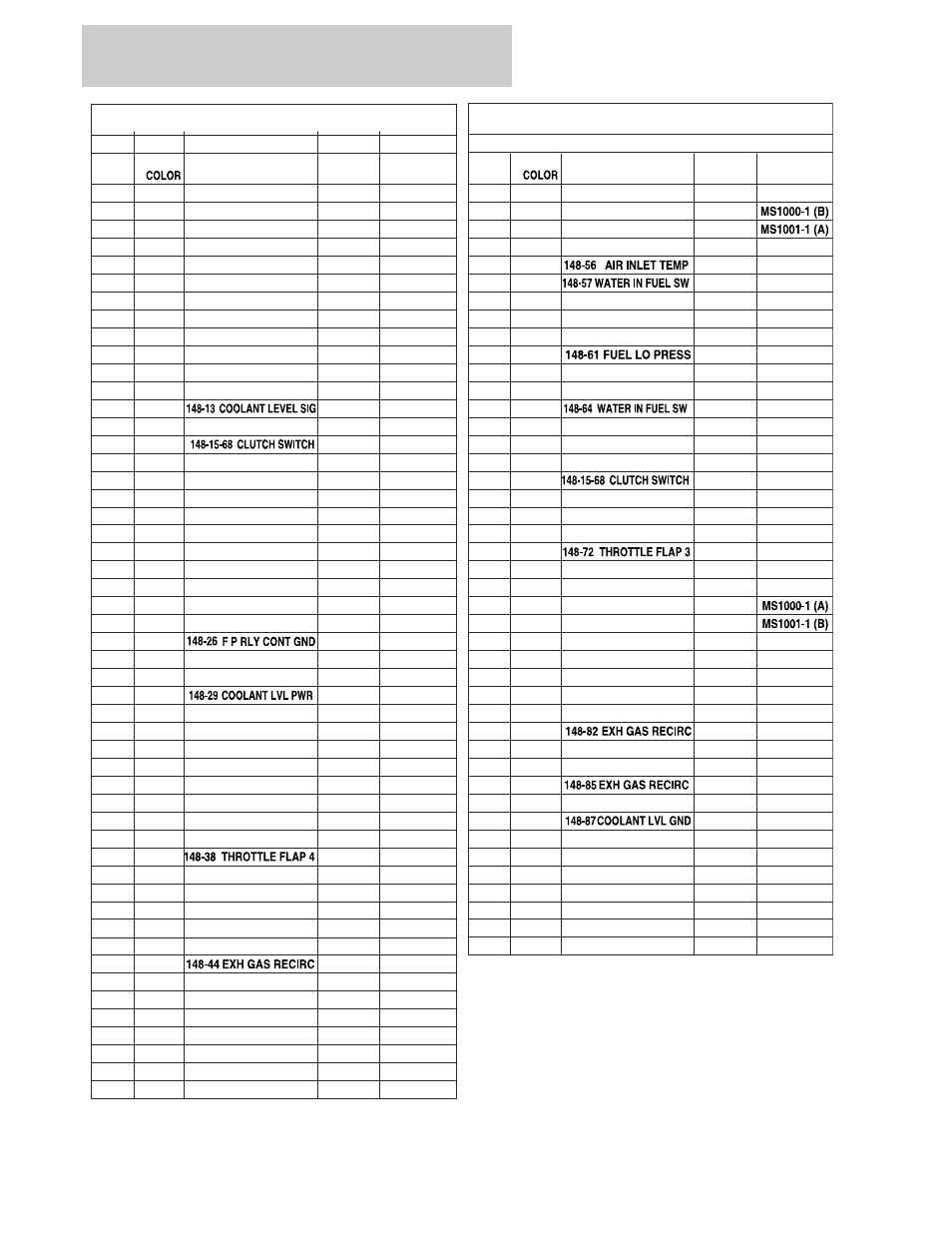

ITEM 22 - ECM-J1
CONNECTOR PART NUMBER: 1001133956
CONN
POS
WIRE WIRE
LABEL
GAUGE TO
1 RED 148-1 ECM PWR 2.5 mm² S944 (2)
2 BLK 148-2 ECM GND 2.5 mm² S945 (2)
3 RED 148-3 ECM PWR 2.5 mm² S944 (2)
4 BLK 148-4 ECM GND 2.5 mm² S945 (2)
5 RED 148-5 ECM PWR 2.5 mm² S944 (2)
6 BLK 148-6 ECM GND 2.5 mm² S945 (2)
7
8
9
10
11
12
13 BLK 0.75 mm² SN939 (3)
14
15 BLK 0.75 mm² ECM-J1 (68)
16
17
18
19
20
21
22
23
24
25
26 BLK 0.75 mm² RL930 (2)
27
28 BLK 148-70 STRT GND 0.75 mm² EIC (2)
29 BLK 0.75 mm² SN939 (1)
30
31
32
33
34
35 BLK 148-35-3 STRT REQ 0.75 mm² S1011 (1)
36
37
38 BLK 0.75 mm² EIC (52)
39
40
41
42
43
44 BLK 0.75 mm² EIC (50)
45
46
47
48
49
50
51
ITEM 22 - ECM-J1 (CONTINUED)
CONNECTOR PART NUMBER: 1001133956
CONN
POS
WIRE WIRE
LABEL
GAUGE TO
52
53 GRN CAN LOW 0.75 mm²
54 YEL CAN HIGH 0.75 mm²
55
56 BLK 0.75 mm² EIC (34)
57 BLK 0.75 mm² X941 (2)
58
59
60
61 BLK 0.75 mm² EIC (17)
62
63
64 BLK 0.75 mm² X941 (1)
65
66
67
68 BLK 0.75 mm² ECM-J1 (15)
69
70
71
72 BLK 0.75 mm² EIC (49)
73 BLK 148-71 STRT SIG 0.75 mm² EIC (3)
74
75 YEL CAN HIGH 0.75 mm²
76 GRN CAN LOW 0.75 mm²
77
78
79
80
81
82 BLK 0.75 mm² EIC (51)
83
84
85 BLK 0.75 mm² EIC (46)
86
87 BLK 0.75 mm² SN939 (2)
88 BLK 148-88 IGNITION 0.75 mm² S946 (2)
89
90
91
92
93
94
