8-74 1850SJ 3121620
SECTION 8 ELECTRICAL

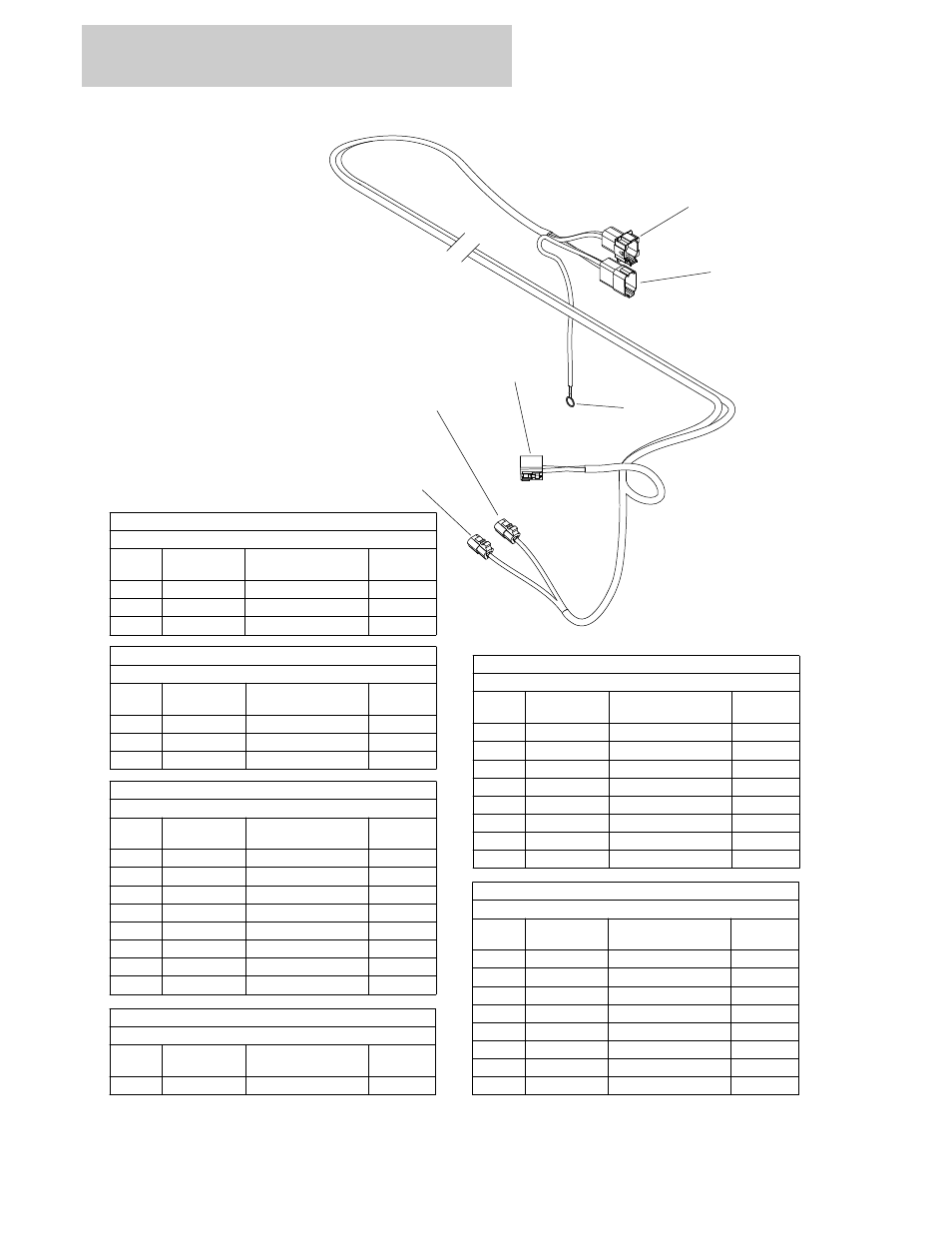

FIGURE 8-24. BOOM SENSOR HARNESS
ITEM 5 - X406B
CONNECTOR PART NUMBER: 4460931
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE
1 RED #1 ANGLE PWR 18 AWG
2 BLUE #1 ANGLE SIG 18 AWG
3 BLACK #1 ANGLE GND 18 AWG
4 RED/BLACK --- 18 AWG
5 YELLOW #2 ANGLE PWR 18 AWG
6 ORANGE #2 ANGLE SIG 18 AWG
7 BROWN #2 ANGLE GND 18 AWG
8 BLUE/BLACK --- 18 AWG
ITEM 6 - X404A
CONNECTOR PART NUMBER: 1001116813
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE
1 RED B LNTH PWR 18 AWG
2 BLUE B LNTH SIG 18 AWG
3 BLACK B LNTH GND 18 AWG
4 RED/BLACK --- 18 AWG
5 YELLOW BRKN CBL PWR 18 AWG
6 ORANGE BRKN CBL SIG 18 AWG
7 BROWN BRKN CBL GND 18 AWG
8 SHIELD CABLE SHLD 18 AWG
ITEM 4 - X422
CONNECTOR PART NUMBER: 4460703
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE
1 BRN/BLK CABLE SHIELD 18 AWG
ITEM 3 - X407A
CONNECTOR PART NUMBER: 4460851
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE
1 RED B LNTH PWR 18 AWG
2 BLUE B LNTH SIG 18 AWG
3 BLACK B LNTH GND 18 AWG
4 RED/BLACK --- 18 AWG
5 YELLOW BRKN CBL PWR 18 AWG
6 ORANGE BRKN CBL SIG 18 AWG
7 BROWN BRKN CBL GND 18 AWG
8 SHIELD CABLE SHIELD 18 AWG
ITEM 2 - SN137
CONNECTOR PART NUMBER: 4460911
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE
A YELLOW #2 ANGLE PWR 18 AWG
B ORANGE #2 ANGLE SIG 18 AWG
C BROWN #2 ANGLE GND 18 AWG
ITEM 1 - SN136
CONNECTOR PART NUMBER: 4460911
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE
A RED #1 ANGLE PWR 18 AWG
B BLUE #1 ANGLE SIG 18 AWG
C BLACK #1 ANGLE GND 18 AWG
1
2
3
4
6
5
1001158015
