8-62 1850SJ 3121620
SECTION 8 ELECTRICAL

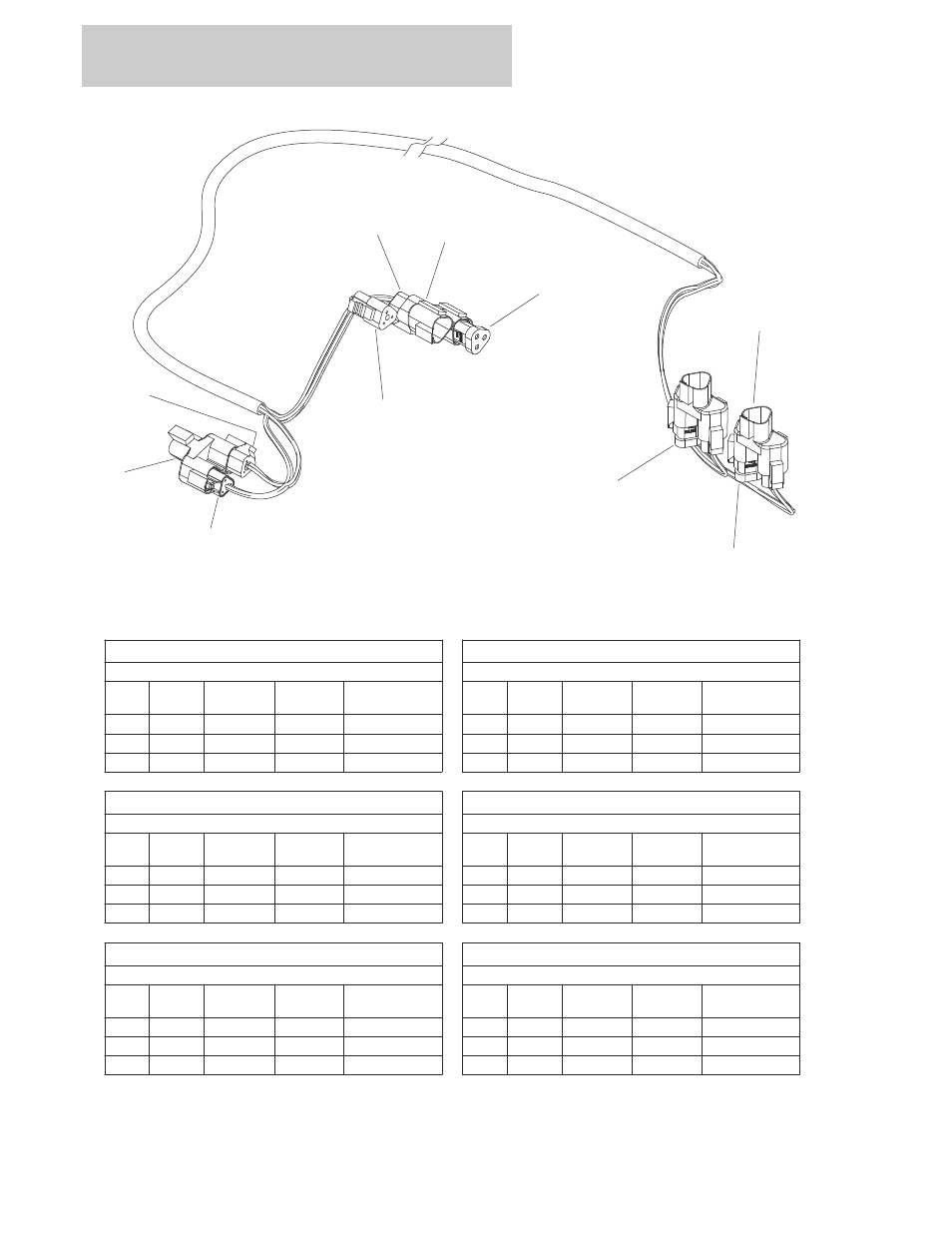

FIGURE 8-18.ENGINE CAN HARNESS
CONNECTOR PART NUMBER: 1001116812
ITEM 1 - MS1002-1
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
A YEL CAN HI 20 AWG MS1000-2 (A)
B GRN CAN LOW 20 AWG MS1000-2 (B)
C SHLD SHIELD 20 AWG MS1000-2 (C)
CONNECTOR PART NUMBER: 4460539
ITEM 4 - X1005
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 YEL CAN HI 20 AWG MS999-3 (A)
2 GRN CAN LOW 20 AWG MS999-3 (B)
3 SHLD SHIELD 20 AWG MS999-3 (C)
CONNECTOR PART NUMBER: 4460539
ITEM 2 - MS999-2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
A YEL CAN HI 20 AWG MS1001-2 (A)
B GRN CAN LOW 20 AWG MS1001-2 (B)
C SHLD SHIELD 20 AWG MS1001-2 (C)
CONNECTOR PART NUMBER: 4460539
ITEM 5 - MS1000-2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
A YEL CAN HI 20 AWG MS1002-1 (A)
B GRN CAN LOW 20 AWG MS1002-1 (B)
C SHLD SHIELD 20 AWG MS1002-1 (C)
CONNECTOR PART NUMBER: 1001116812
ITEM 3 - MS999-3
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
A YEL CAN HI 20 AWG X1005 (1)
B GRN CAN LOW 20 AWG X1005 (2)
C SHLD SHIELD 20 AWG X1005 (2)
CONNECTOR PART NUMBER: 4460539
ITEM 6 - MS1001-2
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
A YEL CAN HI 20 AWG MS999-2 (A)
B GRN CAN LOW 20 AWG MS999-2 (B)
C SHLD SHIELD 20 AWG MS999-2 (C)
5
102
102
6
101
4
1
2
3
101
101
102
1001156001
