8-80 1850SJ 3121620
SECTION 8 ELECTRICAL

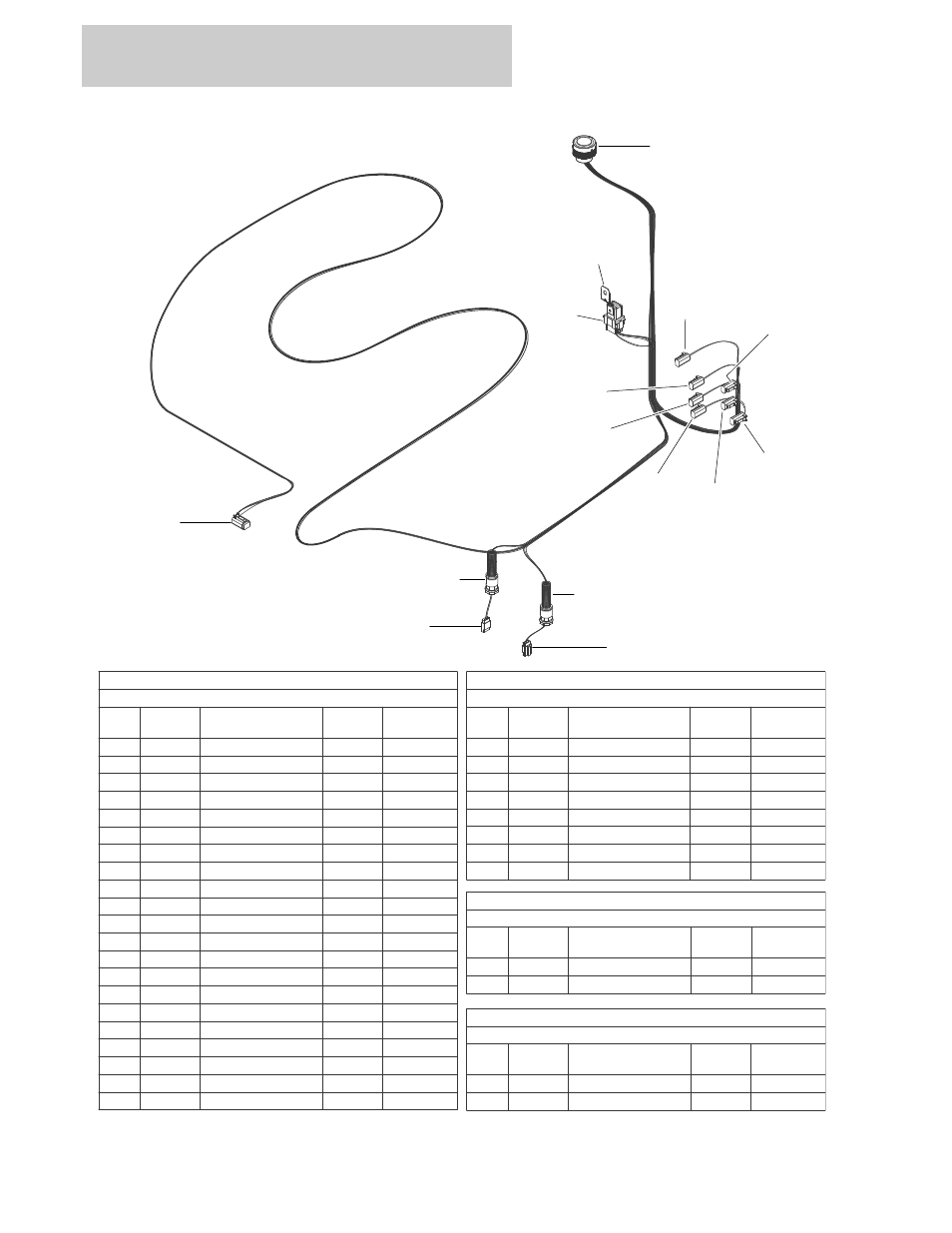

FIGURE 8-27.PLATFORM VALVE HARNESS
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 23-4 PROT-RT 18 AWG X36B (9)
2 BLK 0-4-4 18 AWG MS437 (1)
ITEM 4 - HV278 P-ROT RHT
CONNECTOR PART NUMBER: 4460891
ITEM 3 - HV342 J-LOCK IN
CONNECTOR PART NUMBER: 4460891
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 WHT 55-26 JLOCK IN 18 AWG X36B (10)
2 BLK 0-4-5 18 AWG MS437 (7)
ITEM 2 - MS437
CONNECTOR PART NUMBER: 4460851
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 BLK 0-4-4 18 AWG HV278 (2)
2 BLK 0-4-3 18 AWG HV277 (2)
3 BLK 0-4-1 18 AWG HV275 (2)
4 BLK 0-4-2 18 AWG HV276 (2)
5
6
BLK 0-4-6 18 AWG HV343 (2)
7 BLK 0-4-5 18 AWG HV342 (2)
8 BLK 0-4 18 AWG X36B (12)
ITEM 1 - X36B
CONNECTOR PART NUMBER: 4460926
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 RED CABLE 18 AWG SN274 (1)
2 BLU CABLE 18 AWG SN274 (2)
3 BLK CABLE 18 AWG SN274 (3)
4 BLU CABLE 16 AWG X365B (3)
5 SHIELD SHIELD 18 AWG NC ( )
6 WHT 25-4-2 PLVL DN 18 AWG HV276 (1)
7 WHT 25-3-2 PLVL UP 18 AWG HV275 (1)
8 WHT 23-3 PROT LT 18 AWG HV277 (1)
9 WHT 23-4 PROT RT 18 AWG HV278 (1)
10 WHT 55-26 JLOCK IN 18 AWG HV342 (1)
11 WHT 55-25 JLOCK OUT 18 AWG HV343 (1)
12 BLK 0-4 18 AWG MS437 (8)
13 ORG CABLE 16 AWG X365B (2)
14 BLK CABLE 16 AWG X365B (4)
15 ORG CABLE 18 AWG SN273 (1)
16 YEL CABLE 18 AWG SN273 (2)
17 BLK CABLE 18 AWG SN273 (3)
18 WHT 25-5 PLTFRM DUMP 16 AWG HV281 (1)
19 BLK 0-7 16 AWG HV281 (2)
20 RED CABLE 16 AWG X365B (1)
21
11
(HV281)
12
(HV276)
3
(HV342)
7
(HV277)
6
(HV343)
4
(HV278)
5
(HV275)
1
(X36B)
9
(X365B)
106
10
(SN273)
101
102
103
101
102
103
106
8
(SN274)
105
104
2
1001149977_PG 1 OF 2
