8-112 1850SJ 3121620
SECTION 8 ELECTRICAL
1001149976_PG 3 OF 7

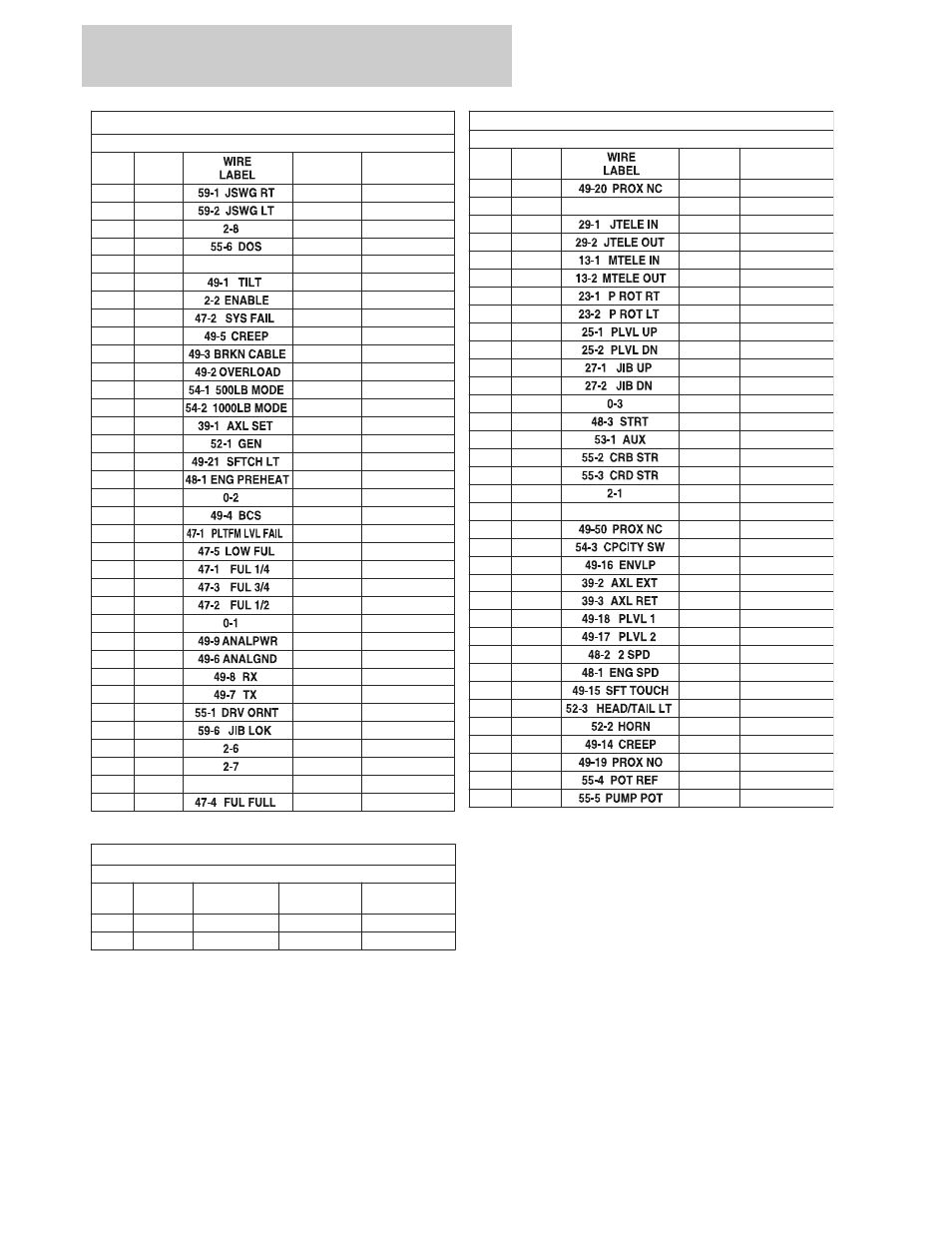

ITEM 18 - CO01-J8
CONNECTOR PART NUMBER: 4460879
CONN
POS
WIRE
COLOR
WIRE
LABEL
GAUGE TO
1 BLK 0-41-2 12 AWG X390 (1)
2 YEL 2-25-1 12 AWG X387 (1)
ITEM 17 - CO01-J2
CONNECTOR PART NUMBER: 4460876
CONN
POS
WIRE
COLOR
GAUGE TO
1 WHT 18 AWG SW19 (1)
2 WHT 18 AWG SW19 (3)
3 YEL 18 AWG X38A (8)
4 WHT 18 AWG SW27 (1)
5
6 WHT 18 AWG GD04-J4 (5)
7 YEL 18 AWG GD04-J2 (2)
8 WHT 18 AWG GD04-J3 (6)
9 WHT 18 AWG GD04-J2 (1)
10 WHT 18 AWG GD04-J3 (5)
11 WHT 18 AWG GD04-J4 (3)
12 WHT 18 AWG GD04-J4 (4)
13 WHT 18 AWG GD04-J3 (4)
14 WHT 18 AWG GD04-J3 (2)
15 WHT 18 AWG GD04-J4 (2)
16 WHT 18 AWG LB12+ (1)
17 WHT 18 AWG GD04-J4 (6)
18 BLK 18 AWG GD04-J2 (6)
19 WHT 18 AWG GD04-J3 (1)
20 WHT 18 AWG GD04-J4 (1)
21 WHT 18 AWG GD04-J2 (3)
22 WHT 18 AWG GD04-J1 (1)
23 WHT 18 AWG GD04-J1 (3)
24 WHT 18 AWG GD04-J1 (2)
25 BLK 18 AWG GD04-J1 (4)
26 WHT 18 AWG X32 (1)
27 WHT 18 AWG X32 (4)
28 WHT 18 AWG X32 (2)
29 WHT 18 AWG X32 (3)
30 WHT 18 AWG GD04-J3 (3)
31 WHT 18 AWG LB320+ (1)
32 YEL 18 AWG S40 (1)
33 YEL 18 AWG X38A (2)
34
35 WHT 18 AWG GD04-J1 (6)
ITEM 19 - CO01-J1
CONNECTOR PART NUMBER: 4460874
CONN
POS
WIRE
COLOR
GAUGE TO
1 WHT 18 AWG X33A (15)
2
3 WHT 18 AWG SW14 (1)
4 WHT 18 AWG SW14 (3)
5 WHT 18 AWG SW23 (1)
6 WHT 18 AWG SW23 (3)
7 WHT 18 AWG SW13 (1)
8 WHT 18 AWG SW13 (3)
9 WHT 18 AWG SW17 (1)
10 WHT 18 AWG SW17 (3)
11 WHT 18 AWG SW21 (1)
12 WHT 18 AWG SW21 (3)
13 BLK 18 AWG SW10 (5)
14 WHT 18 AWG SW25 (1)
15 WHT 18 AWG SW25 (3)
16 WHT 18 AWG SW16 (1)
17 WHT 18 AWG SW16 (3)
18 YEL 18 AWG SW15 (2)
19
20 WHT 18 AWG X36A (4)
21 WHT 18 AWG SW26 (3)
22 WHT 18 AWG SW24 (3)
23 WHT 18 AWG SW18 (1)
24 WHT 18 AWG SW18 (3)
25 WHT 18 AWG X36A (2)
26 WHT 18 AWG X36A (16)
27 WHT 18 AWG SW15 (3)
28 WHT 18 AWG SW15 (1)
29 WHT 18 AWG SW20-2 (1)
30 WHT 18 AWG SW22-2 (1)
31 WHT 18 AWG SW08-2 (1)
32 WHT 18 AWG SW10 (2)
33 WHT 18 AWG X33A (13)
34 WHT 18 AWG SW10 (4)
35 WHT 18 AWG SW10 (6)
