SECTION 3 - CHASSIS & TURNTABLE
3-20
– JLG Lift –
3120718
Cover Disassembly
1.
Remove O-Ring (17) from groove in Cover (6A).
2.
Remove Thrust Washer (2) from Cover (6A) pockets.
3.
Unscrew two Hex Head Bolts (6C) and remove Dis-
engage Cap (6B) from Cover (6A).
4.
Pull Disengage Rod (6D) out from Cover (6A).
5.
Use appropriate tool to remove O-ring (6E) from
internal groove in Cover (6A).
6.
Remove two O-Ring Pipe Plugs (6F) from Cover
(6A).

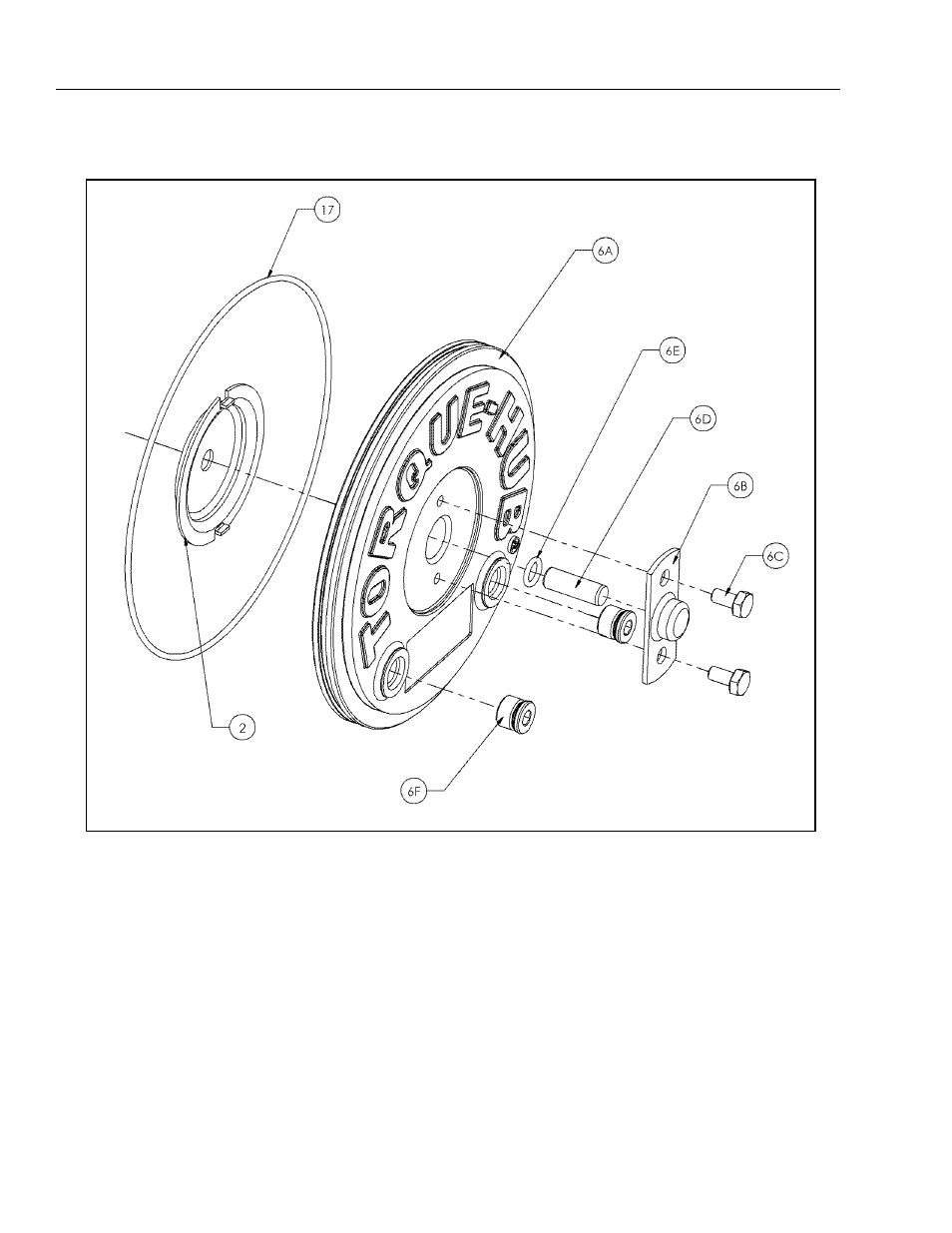

2. Thrust Washer
6A. Cover
6B. Disengage Cap
6C. Bolt
6D. Disengage Rod
6E. O-Ring
6F. Pipe Plug
17. O-Ring
Figure 3-11. Cover
