SECTION 5 - HYDRAULICS
3120718 – JLG Lift – 5-21
1. Barrel
1A. Bushing
2. Rod
2A. Bushing
3. Piston
4. Head
5. Tapered Bushing
6. Spacer
7. Cartridge Valve
8. Cartridge Valve
8A. Knob
9. Socket Head Capscrew
10. Washer Ring
11. O-Ring Plug
12. O-Ring Plug 13. Setscrew
14. Loctite #242 (Not Shown)
15. Locking Primer (Not Shown)
16. Seal
17. Lock Ring
18. O-Ring
19. Back-Up Ring 20. Wear Ring
21. O-Ring
22. Back-Up Ring
23. Rod Seal
24. Wiper
25. Loctite #609 (Not Shown)
26. Socket Head Capscrew

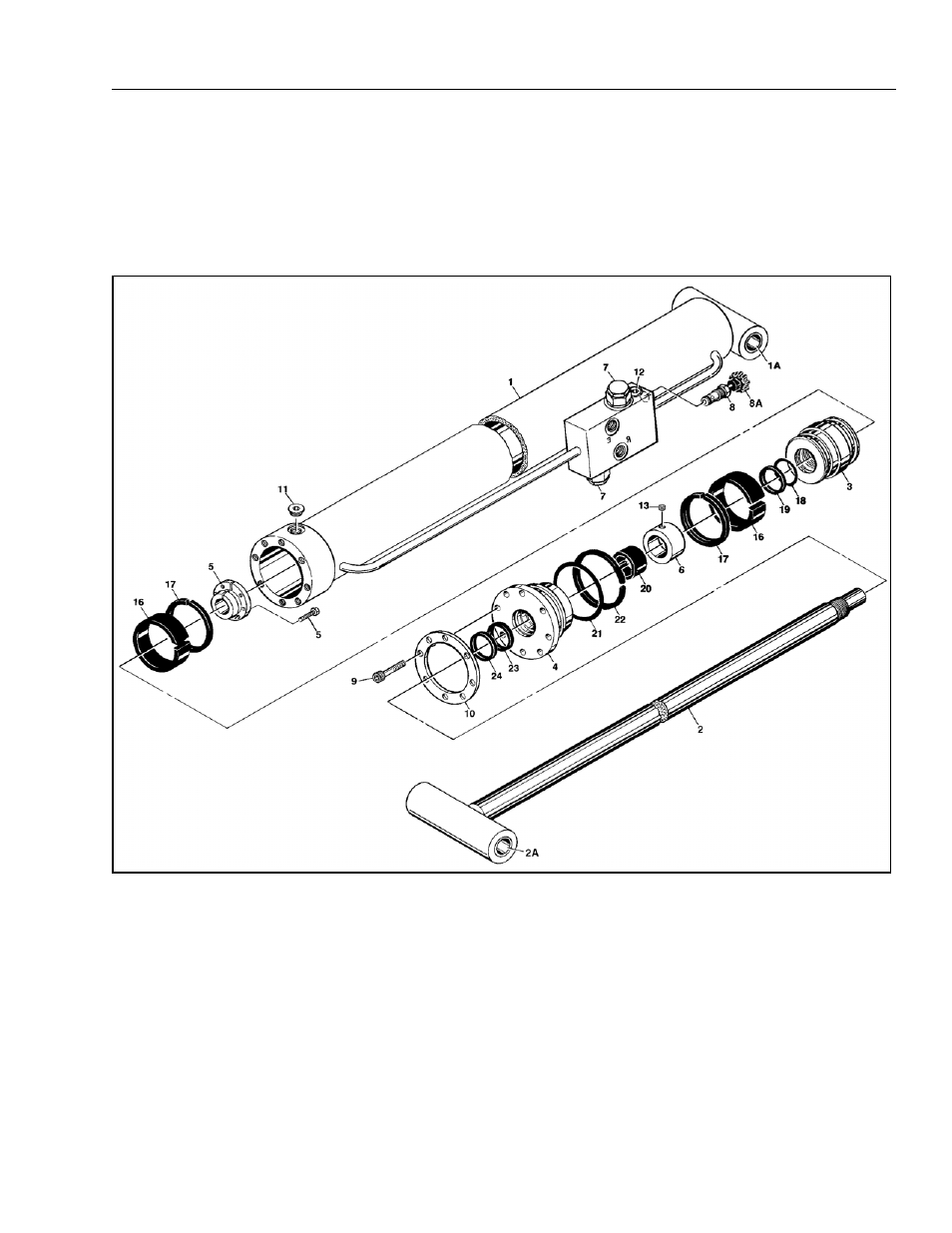

Figure 5-24. 600S & 600A Jib Lift Cylinder
