SECTION 5 - HYDRAULICS
3120718 – JLG Lift – 5-17
1. Barrel
1A. Bushing
2. Rod
2A. Bushing
3. Piston
4. Head
5. Tapered Bushing
6. Not Used
7. Bolt
8. Cartridge, Counterbalance
9. O-Ring Plug
10. O-Ring Plug
11. Bleeder Valve
12. Wiper Ring
13. Seal, Rod
14. O-Ring
15. Back-Up Ring
16. Wear Ring 17. Wear Ring
18. T Seal
19. O-Ring
20. Back-Up Ring
21. Loctite #242 (Not Sh0wn)
22. Locking Primer (Not Shown)
23. Washer Ring
24. Not Used
25. Socket Head Screw

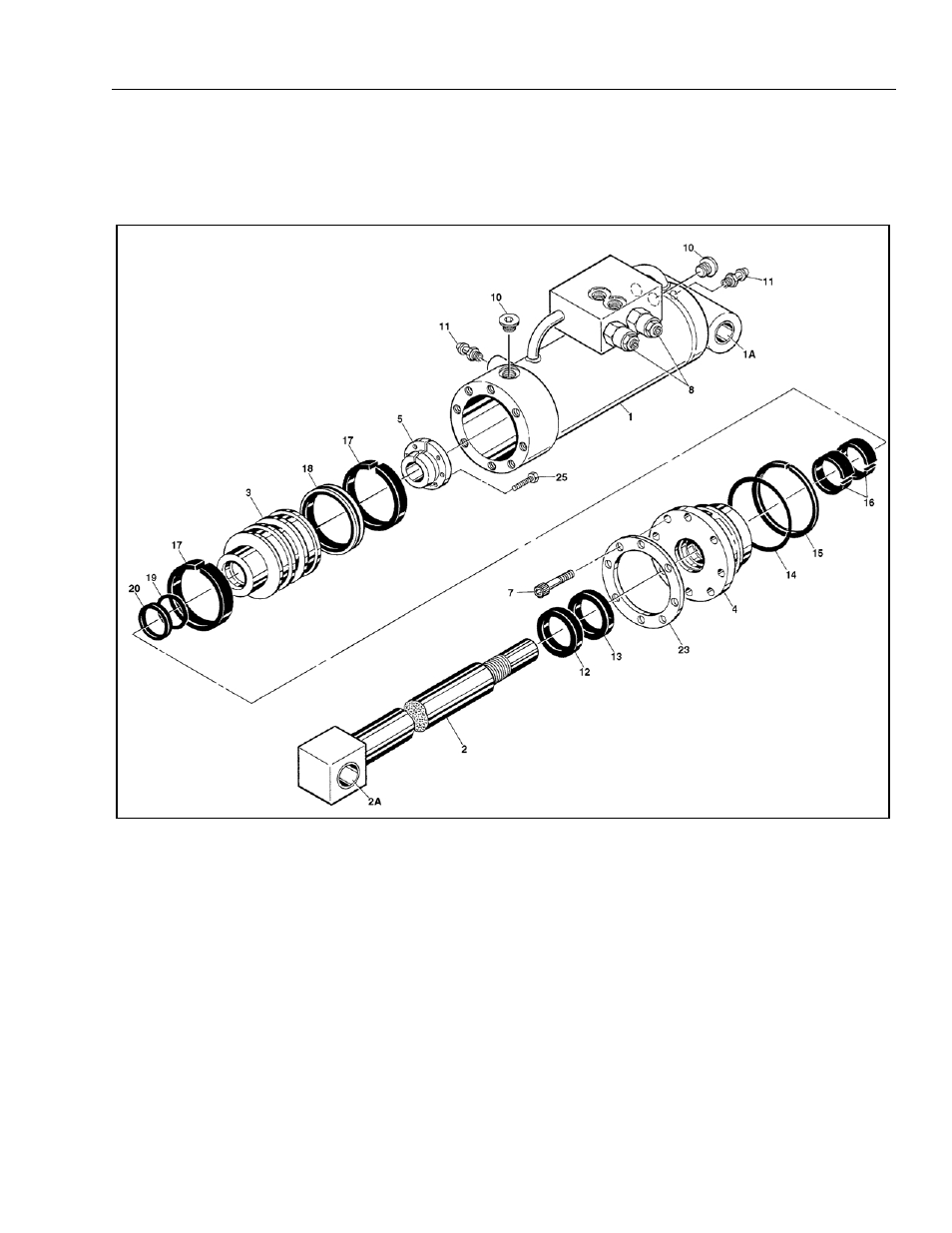

Figure 5-20. 600S Axle Lockout Cylinder (Prior to S/N 75606)
