SECTION 5 - HYDRAULICS
3120718 – JLG Lift – 5-29
1. Barrel
2. Rod
3. Piston
4. Head
5. Spacer
6. Tapered Bushing
7. Plate
8. Valve Block
9. O-Ring Plug
10. Socket Head Capscrew
11. Socket Head Capscrew
12. Wear Ring
13. Seal
14. O-Ring 15. O-Ring
16. Wear Ring
17. O-Ring
18. Back-Up Ring
19. Rod Seal
20. Wiper
21. Back-Up Ring 22. Locking Primer (Not Shown)
23. Loctite #242 (Not Shown)
24. Wear Pad
25. Bolt
26. Flatwasher
27. Not Used
28. Bolt

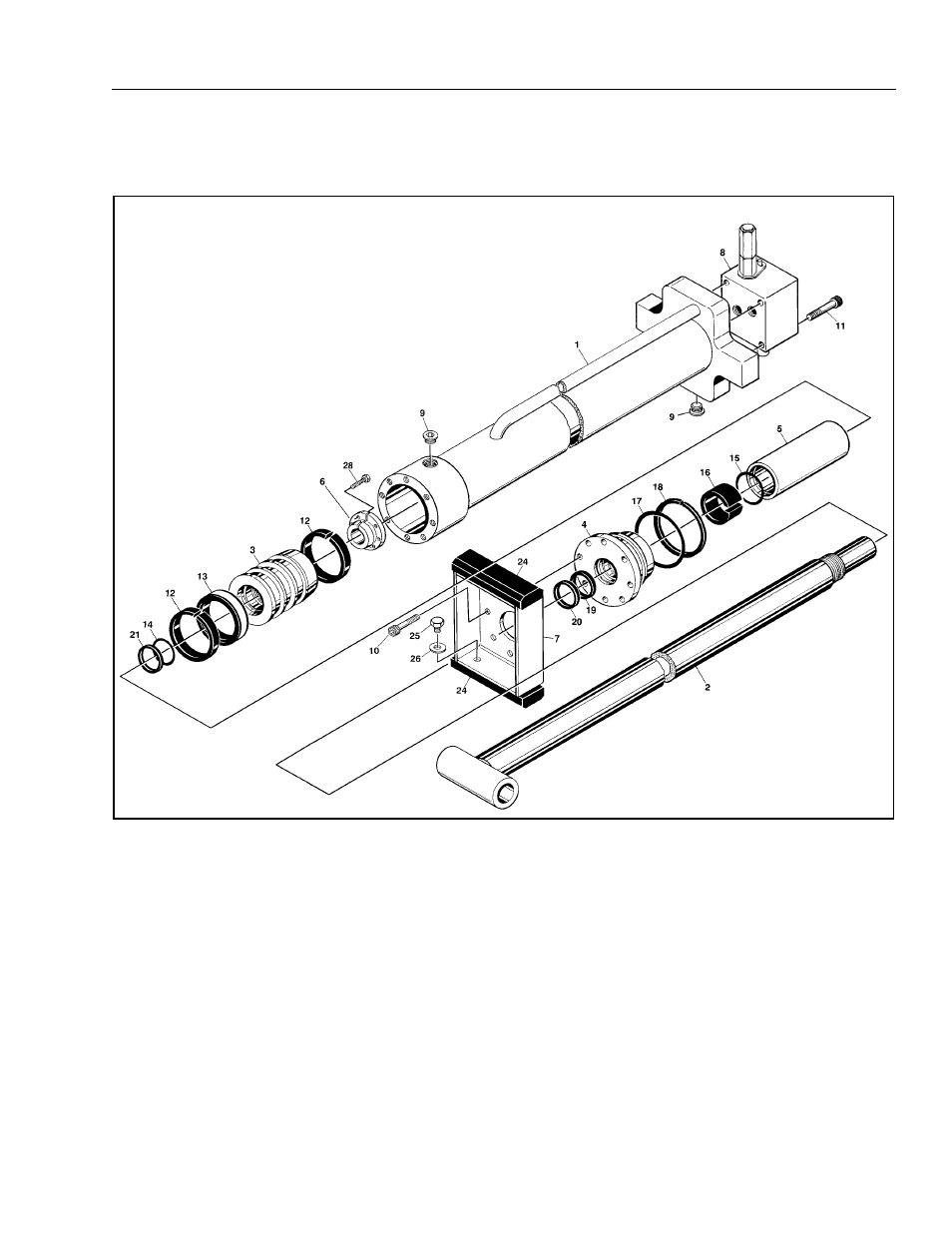

Figure 5-32. 600A Main Boom Telescope Cylinder
