SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121325 – JLG Lift – 3-37
3.13 BEACON INSTALLATION (OPTION)
Removal:
NOTE: Procedures apply to both the Front and Rear Bea-
cons.
1. Disconnect electrical supply.
2. Disconnect beacon harness from beacon and MTB,
if needed.
3. Remove Bolts (5), Nuts (6), and Washers (7) to
remove the Beacon and Protective Cage (1).
4. The Mounting Bracket (2) can be removed from the
chassis by removing the two Screws (3) and Wash-
ers (4).
5. Repair/Replace if necessary.
Installation:
1. Follow Removal Procedures in reverse order.
2. Route Front Beacon Cable behind the Guiding Rods
(8) to avoid contact with the tie bar. Follow route of
the signal cable for Outrigger 1. Fix with tie straps.
3. Route Rear Beacon Cable together with signal cable
for Outrigger 3. Fix with tie straps.
4. Route Harness through Position W11 on the under-
side of the Main Terminal Box (MTB).
1
2
3
4
6
7
Position W11
MTB Underside
Front and Rear
Front Beacon
Rear Beacon
Harness
8
5, 7
1. Beacon & Protective Cage
2. Mounting Bracket
3. Screw, 6mm x 16mm
4. Washer, 6mm
5. Bolt, M4 x 25mm
6. Nut, M4
7. Washer
8. Guiding Rods

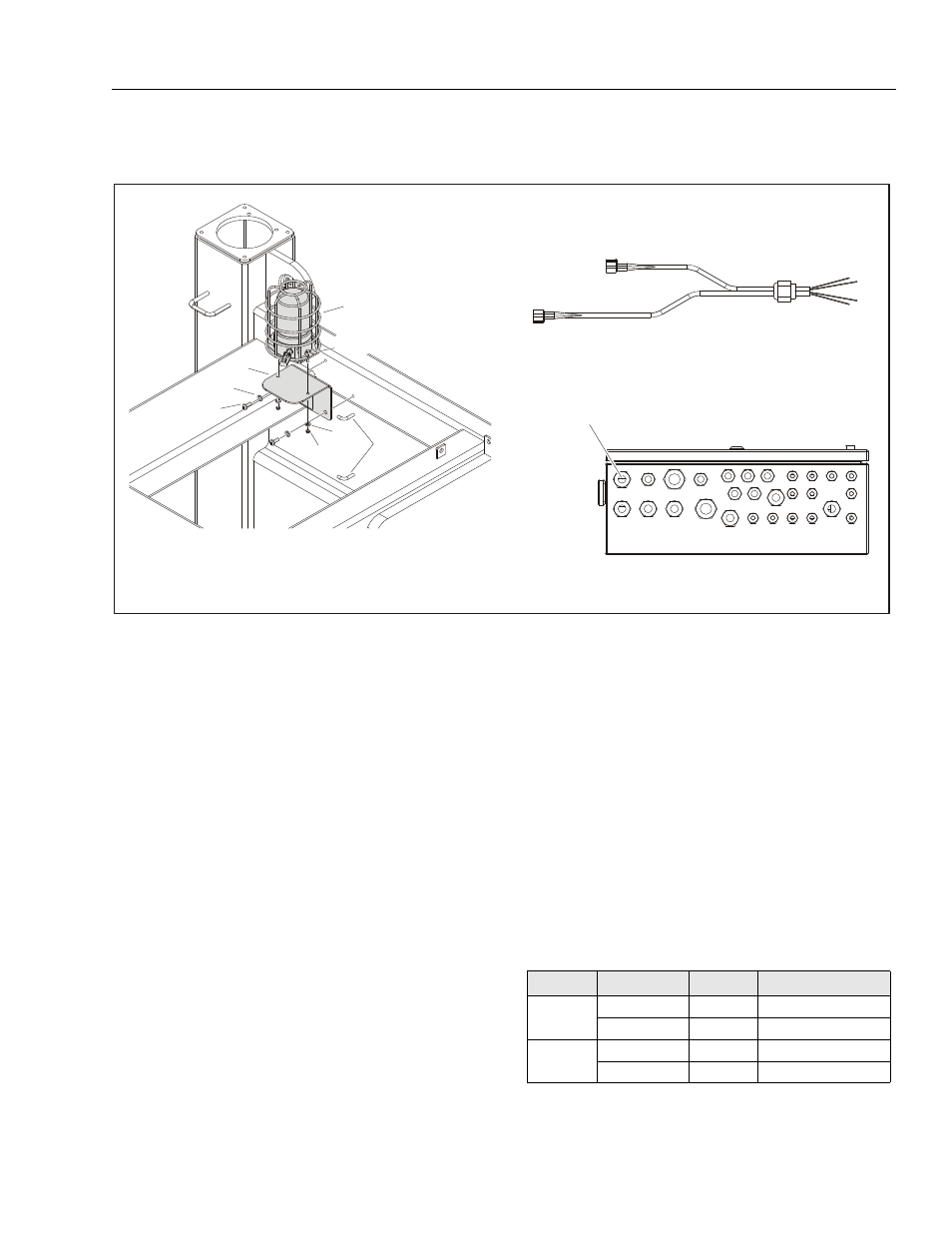

Figure 3-35. Beacon Installation
Table 3-8. Beacon Harness MTB Connections
Side Wire Color Signal Termiinal Position
Front
Brown + X1/34B-1
Blue GND X1/1-3
Rear
Brown + X1/34B-2
Blue GND X1/1-4
