SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3-26 – JLG Lift – 3121325
3.10 BATTERY REMOVAL
Removal:
1. Disconnect and remove the Battery Cables (2, 3, 4)
from the battery terminals. Loosen the bolt on the
terminal clamps to remove the cables.
2. Remove the Bolts (5), Flatwashers (6) securing the
both the front (shown) and rear (not shown) Battery
Hold Clamp (7) to the electrical compartment.
3. Remove the Battery Hold Clamp.
4. Remove Batteries(1).
Installation:
1. Place Batteries into electrical compartment.
2. Align Battery Hold Clamps with bolt holes on floor.
3. Secure Clamps with Bolts and Lockwashers.
4. Reconnect Battery Cables to the battery terminals.
Tighten bolt on the terminal clamps.
1
2
3
4
5
6
7
ENGINE
STARTER
BATTERIES
BATTERY
DISCONNECTOR
ENGINE
CHECK BOX
Battery
Schematic
1. Batteries
2. Battery Cable (Battery - to Battery +)
3. Battery Cable (Battery + to Battery
Disconnector)
4. Battery Cable (Battery - to Engine)
5. Bolts, M8 x 35mm
6. Lockwashers, M8
7. Battery Hold Clamp
NOTE: Items 5, 6, and 7 are also located on
the back side of the battery (not
shown)

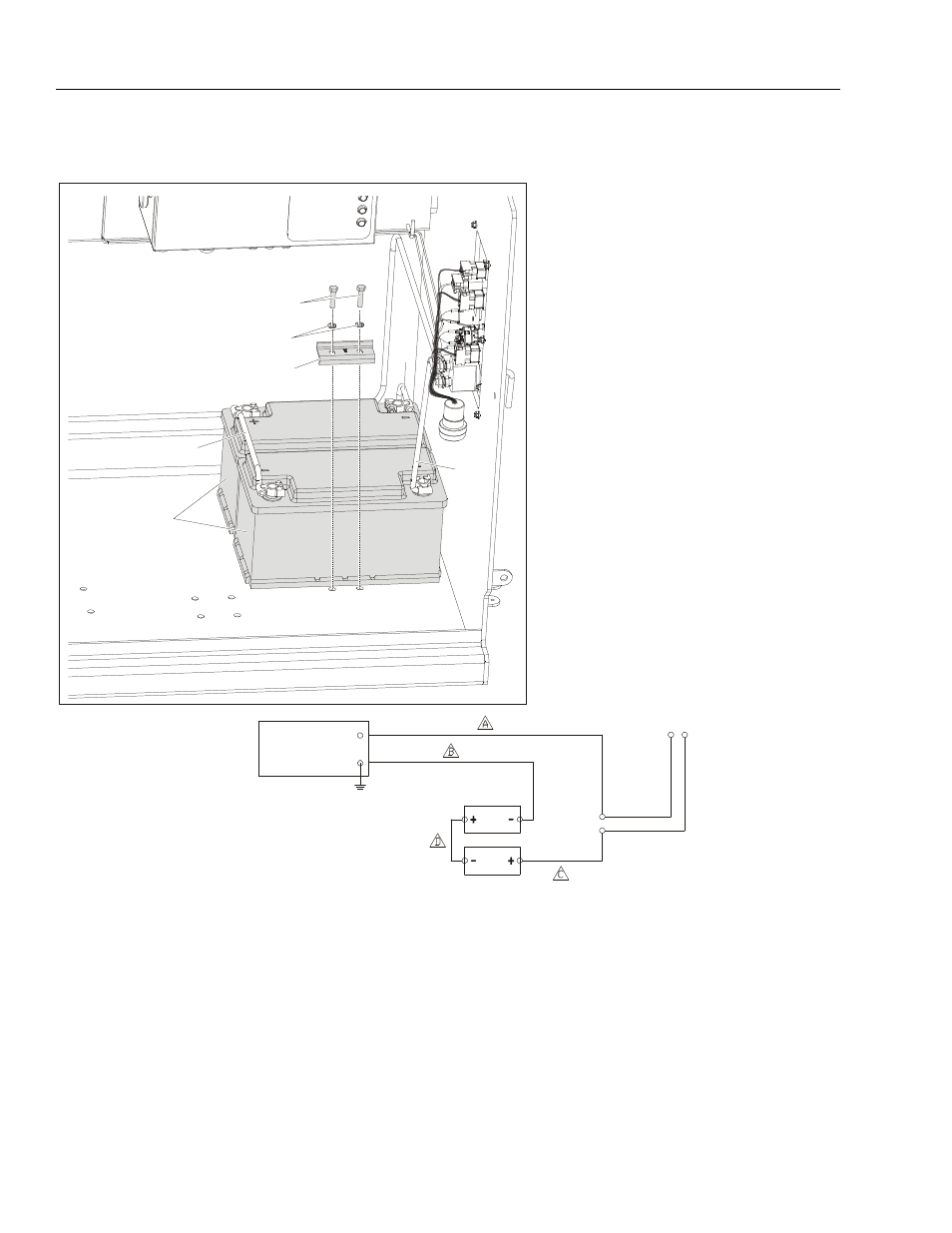

Figure 3-24. Battery Removal
