SECTION 3 - CHASSIS, PLATFORM & SCISSOR ARMS
3121325 – JLG Lift – 3-21
Engine Removal
NOTE: Refer to Figure 3-19. when removing engine from
engine compartment.
ENGINE REMOVAL REQUIRES HEAVY LIFTING DEVICES. USE
EXTREME CAUTION WHEN REMOVING THE ENGINE.
1. Disconnect electrical supply.
2. Disconnect all electrical wires, hoses, pipes, etc.
attached to the engine assembly.
3. Secure engine with appropriate lifting device. (Refer
to Deutz Operation Manual included with the
machine)
4. Unscrew and remove 4 Nuts (3) and Flatwashers (2)
from the underside of the engine tray.
5. Remove all 4 Bolts (1) and second set of Flatwash-
ers.
6. Carefully lift engine from engine compartment with
appropriate lifting device.
NOTE: When installing the engine, follow the steps in
reverse order.
The machine comes with an engine oil drain hose
(located in the plastic bag in the valve compartment)
to use when draining the oil from the engine.
Remove the cover on the Oil Drain Port (4). Attach
the drain hose to the Port. The valve on the hose
releases the valve on the Port to drain the oil. Run
the hose through the opening on the bottom of the
engine tray.
1
2
2
3
2
3
1
2
2
3
2
1
4
1. Bolt, M12 x 110mm
2. Flatwasher, M12
3. Locknut, M12
4. Oil Drain Port

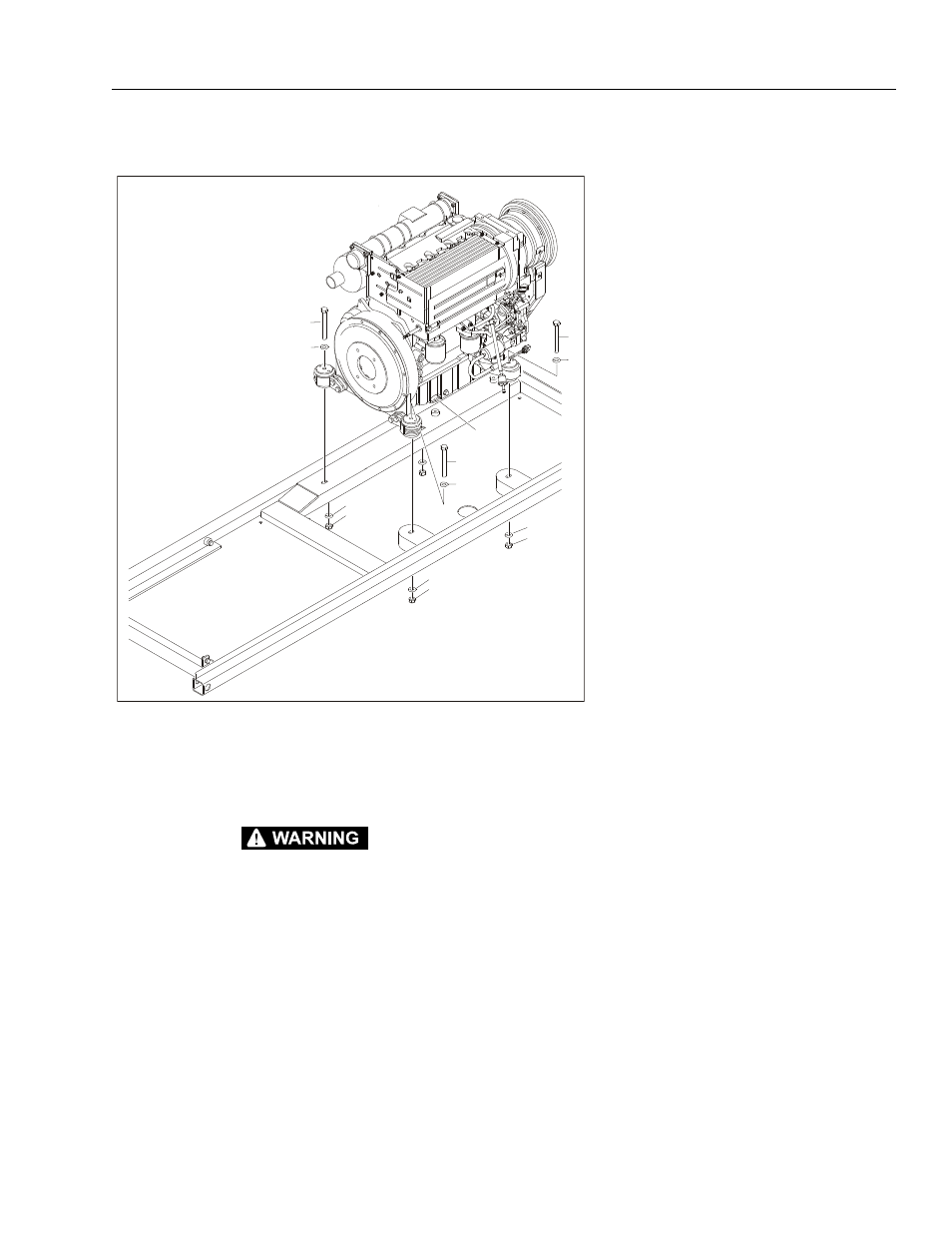

Figure 3-19. Engine Removal
