Hydraulic Tank
Removal:
1. Close shutoff valve lever (5) to turn off flow of
hydraulic fluld. Drain hydraulic fluid by opening the
drain port on the underside of the Hydraulic Tank
(1). Store fluid in appropriate receptacle. Disconnect
all hoses.
2. Remove hydraulic tank by removing the four Cap-
screws (2), Nuts (4) and eight Flatwashers (3).
3. Carefully remove the tank from the engine compart-
ment.
4. If required, remove and replace Filter (see Figure 3-
21.).
NOTE: Close hydraulic shutoff valve lever when servicing
the hydraulic system and components. Make certain
to open lever when finished to return flow of hydrau-
lic fluid.
Installation:
1. Place tank into engine compartment lining up the
bolt holes.
2. Replace Capscrews, Flatwashers and Nuts into their
respectable holes. Tighten.
3. Replace all hydraulic hoses.
4. Ensure the drain port is closed.
5. If required, replace Filter.
6. Remove Filler cap (6) fill tank with hydraulic fluid to
its designated capacity, 68.7 gal (260 L).
7. Open shutoff valve lever to turn on flow of hydraulic
fluid.
2, 3, 4
2, 3, 4
1
6
1. Hydraulic Tank
2. Capscrew, M10 x 25mm
3. Flatwasher, M10 (2 per capscrew)
4. Nut, M10
5. Shutoff Valve Lever
6. Filler

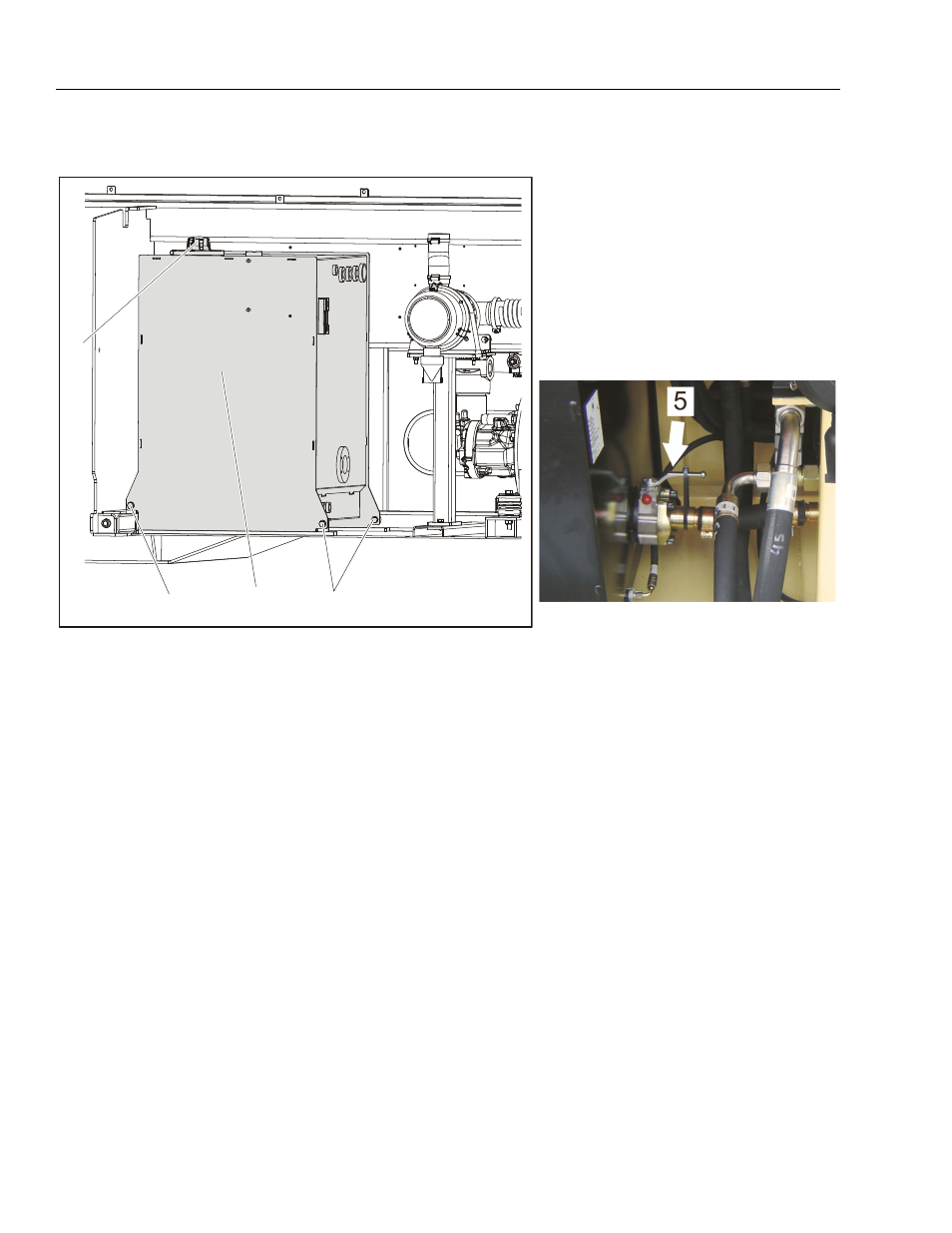

Figure 3-20. Hydraulic Tank Removal
