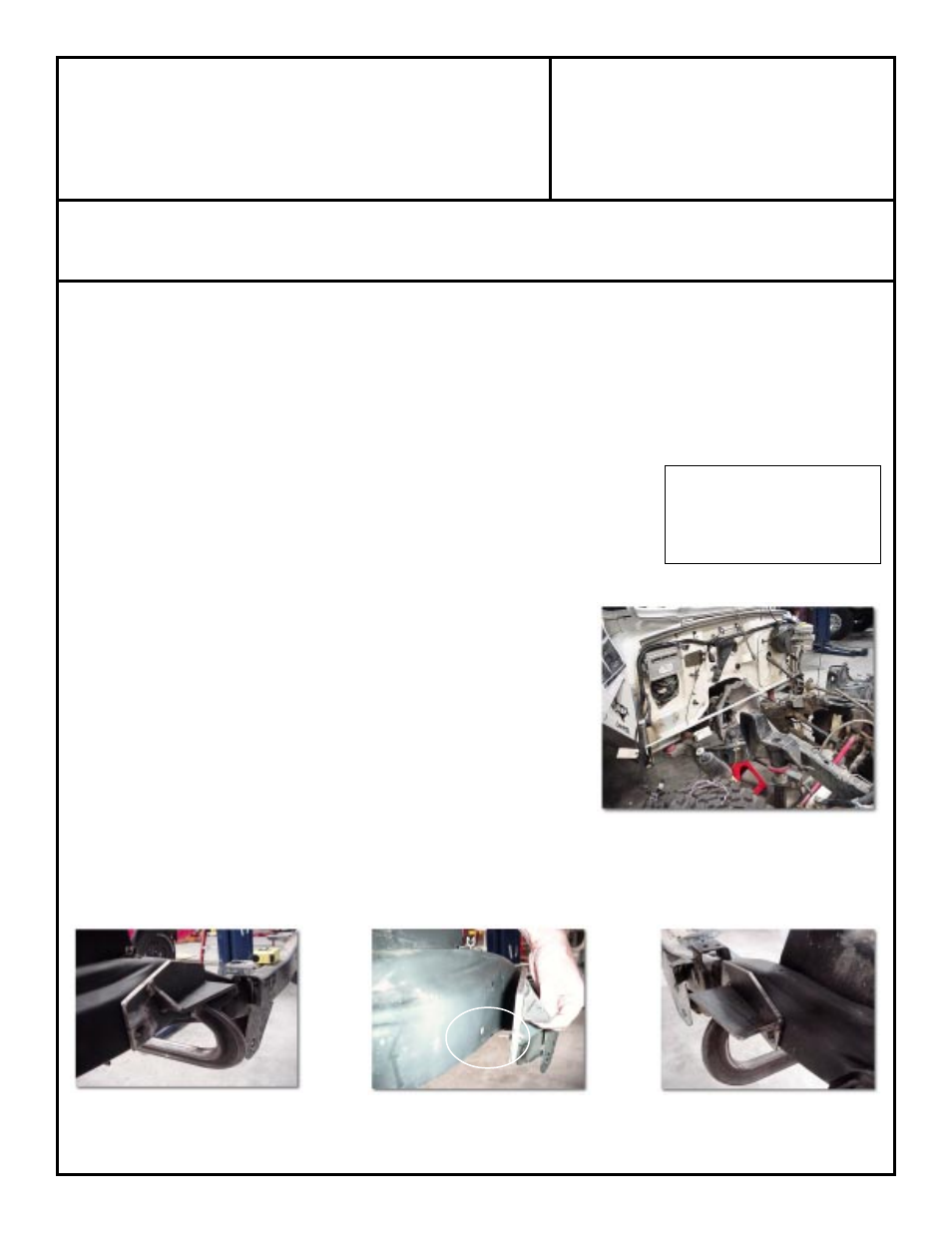

ADVANCE ADAPTERS INC. P/N: 713091
P.O. Box 247, 4320 Aerotech Center Way New Item: (08/02)
Paso Robles, CA 93447 PAGE 1 OF 4
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 08-09-10
KIT CONSISTS OF:
No. Qty Part No. Description
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will void
any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend that
you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a service
manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive dealerships
and parts stores.
1. 2 4980 STOCK GM MOUNTS
2. 1 713091L LEFT MOUNT
3. 1 713091R RIGHT MOUNT
4. 1 713090-BLK SADDLE MOUNT
5. 14 723122 5/16" FLAT WASHER (6 pcs. for block bolts)(8 pcs. saddle to frame mount)
6. 4 723703 3/8"-16 NYLON LOCK NUT (Saddle to frame mount bolts)
7. 6 723704 3/8" LOCK WASHER (Engine block)
8. 6 723721 3/8"-16 x 1" H.H.C.S. (Block bolts)
9. 4 723722 3/8"-16 x 1.25" H.H.C.S (Saddle to frame mount bolts)
10. 4 723735 3/8" FLAT WASHER (Saddle to rubber mount)
11. 2 724301 7/16"-14 NYLON LOCK NUT (Saddle to rubber mount)
12. 2 724311 7/16"-14 x 3.50" H.H.C.S. (Saddle to rubber mount)
CHEVY V8 TO JEEP TJ WELD-IN MOUNT
REPLACING THE STOCK 6 CYL.
INSTALLATION PROCEDURES:
This mount kit is designed as a weld-in application. Cutting, grinding, and
welding is required. These mounts should only be used when replacing a
stock 6 cylinder engine. Jeep TJs with a 4 cylinder engine must use Part
No. 713090, which is a bolt-in mount. If this kit is used with a 4 cylinder,
the steering pillow block must be modified.
To install a Chevy V8 into a Jeep TJ, we recommend that the entire front
clip of the vehicle be removed for ease of installation. This would also
include the hood, grille, both fenders, and miscellaneous components.
Some of the components in the engine compartment may need to be
relocated (i.e. smog equipment, battery radiator, overflow, etc.). Once the
stock engine has been removed, you're ready to begin the new engine installation.
Grind or torch off the stock frame mounts. Grind off all the welds, and make the frame rails smooth. Next, identify
the holes on each side of the frame which you will use to locate the mounts. They are located on the inside of the
frame, about 23" away from the front crossmember. Using the bolt that protrudes from the frame mount as a
If you are using an aftermarket
oil pan, the maximum depth in
the front is 3-5/8".
NOTE: This
motor mount will not work with
383 Stroker motors or 400 S.B.
OPTIONAL ITEMS:
717090 Headers
716691-AA RADIATOR
716693-AA RADIATOR
714450 1"BODY LIFT
These mounts can be used with LT1 engines but you must use the A/C replacement pulley from GM. see last page for infomation.
