Special Note: The components packaged in this kit have been assembled and machined for specific types of conversions. Modifications to any of
the components will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required
to complete your conversion, we strongly recommend that you contact our sales department for more information. This instruction sheet is only
to be used for the assembly of Advance Adapter components. We recommend that a service manual pertaining to your vehicle be obtained for
specific torque values, wiring diagrams and other related equipment. These manuals can be found online, at dealerships and parts stores.

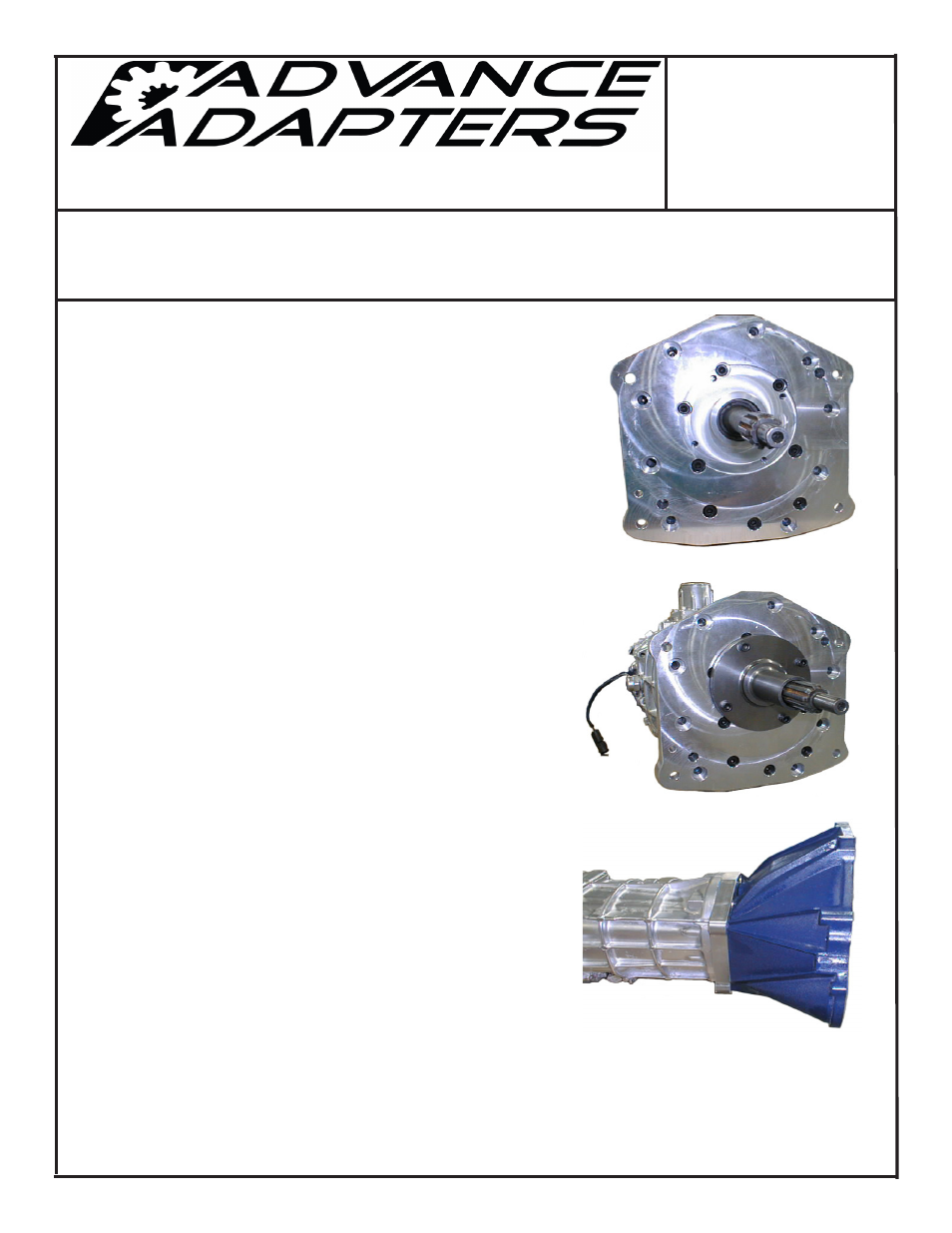

AX15 TO AMC JEEP ADAPTER
The AX15 had either a .750 or .590 tip on the input shaft.
We have included a bearing for the .750 tip. If you have a
transmission withe the .590 you will need P/N 716120.
Once all the clutch components are installed and the
bellhousing is bolted to the block, you can now install the
transmission and adapter to the bellhousing.
Use the four (4) 7/16” S.H.C.S. ( P/N 724317) to bolt these
units together. Make sure the bellhousing and retainer
index properly.
If the units (while sliding together) stop before surfaces are
mated, DO NOT “SUCK UP” THE SURFACES USING
THE BOLTS.
Check for clutch or pilot bushing alignment, or the input
shaft may need to be shortened a little more. Damage could
occur if forced together.
