PO Box 247, 4320 Aerotech Center Way Paso Robles, CA 93447
PH: 800.350.2223 F: 805.238.4201 www.advanceadapters.com
P/N: 712543J
PAGE: 3 OF 4
PAGE REV. DATE:
1/16/14
Special Note: The components packaged in this kit have been assembled and machined for specific types of conversions. Modifications to any of
the components will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required
to complete your conversion, we strongly recommend that you contact our sales department for more information. This instruction sheet is only
to be used for the assembly of Advance Adapter components. We recommend that a service manual pertaining to your vehicle be obtained for
specific torque values, wiring diagrams and other related equipment. These manuals can be found online, at dealerships and parts stores.

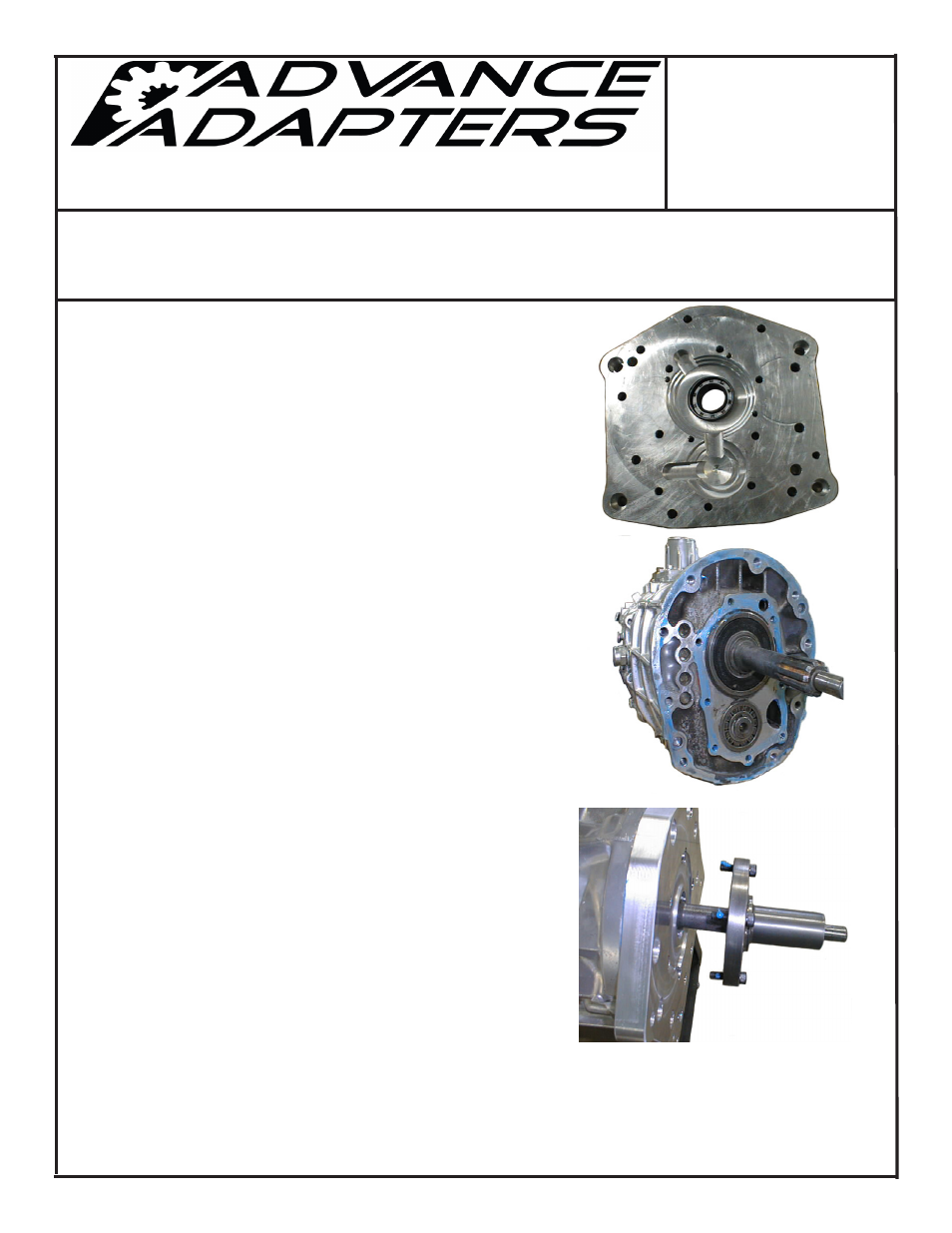

AX15 TO AMC JEEP ADAPTER
Using RTV Silicon sealer, apply a thin layer on the face of the
transmission. This should be applied where the bellhousing
and retainer were fastened. Set the adapter onto the trans-
mission. The adapter plate does not use the dowel pin on the
transmission but indexes off of the front input shaft bearing.
Clearance holes have been provided to retain the dowel pin.
Install the retainer bolts first, and torque to 10 ft/lbs. using the
nine (9) S.H.C.S. transmission bolts ( P/N 720030) and bolt the
plate to the transmission and torque to 22 ft/lbs.
\
Install the new retainer using the four (4) S.H.C.S. retainer bolts
( P/N 723113). This retainer has a standard Jeep index diam-
eter of 4.848, and a standard release bearing snout of 1.430.
A standard Jeep pressure plate, release lever and release
bearing should be used. A new Jeep clutch disc is supplied.
