Snorkel SPM20-sn00000 User Manual
Page 32
28

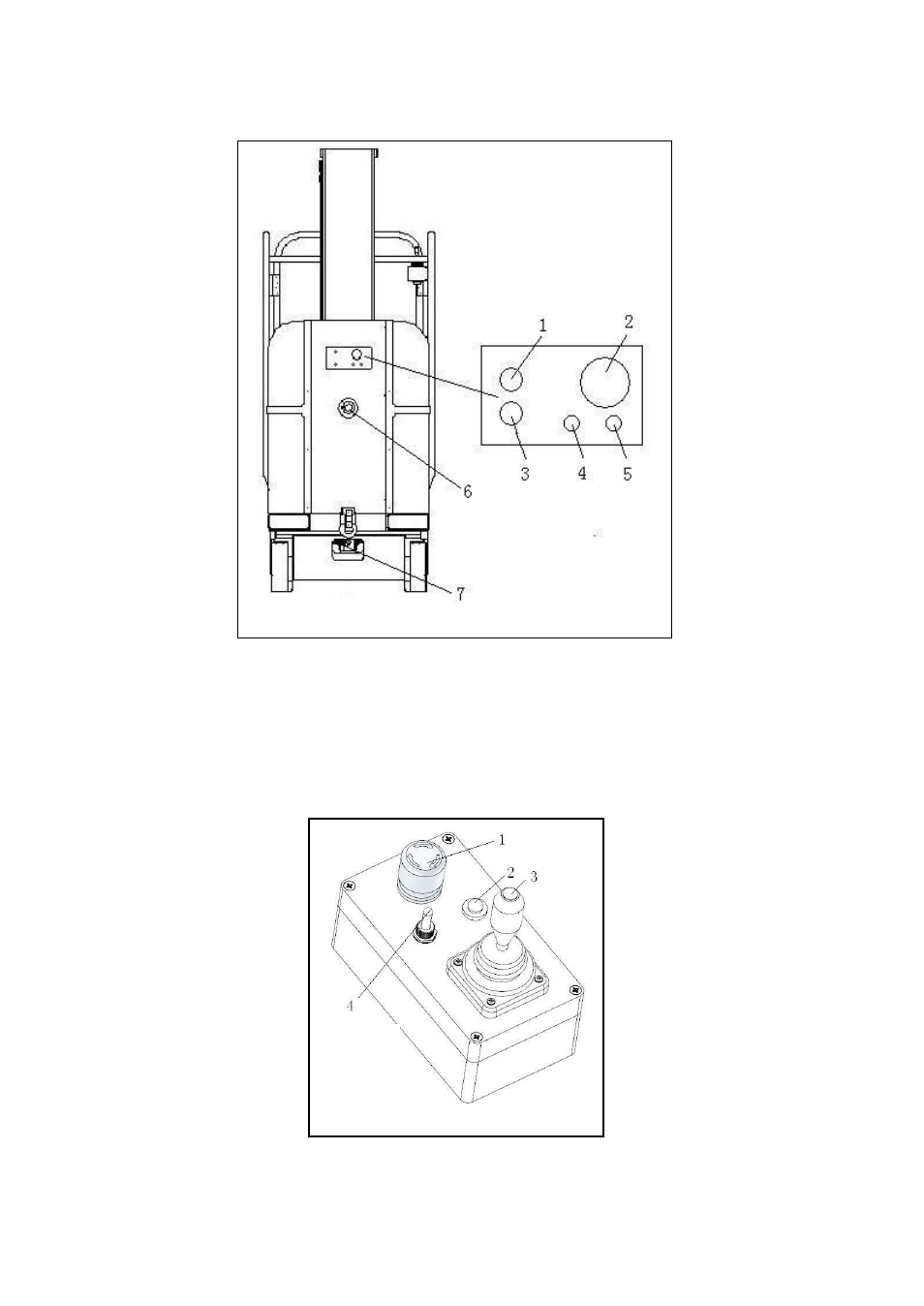

Figure 3-2. Ground Control Station. (Machine Rear View)
1. Emergency Stop 2. Hour Run/BCI Meter
3. Main Power Key Switch 4. Deadman Toggle Switch, on-(on)
5. Toggle Switch (on)-off-(on) 6. Charger A/C Input Receptacle
7. Manual Descent Control Valve
3.6 PLATFORM CONTROL CONSOLE OPERATION
Figure 3-3. Platform Control Console
1. Emergency Stop 2. Horn Button
3. Joystick with Enable Button 4. Toggle switch SPDT on-on
