Components to be
replaced
Required work steps
Handle
1., 2. and 8.
Protective cover
1., 5. and 8.
Plug-on tips
1. - 4. and 8.
Lever links
1. - 4., 6. and 8.
Spreader arms
1. - 6. and 8.
Work steps:
1. Close the rescue unit until a gap of only a few mm remains between the tips. Disconnect
it from the hydraulic power supply unit and clean thoroughly.

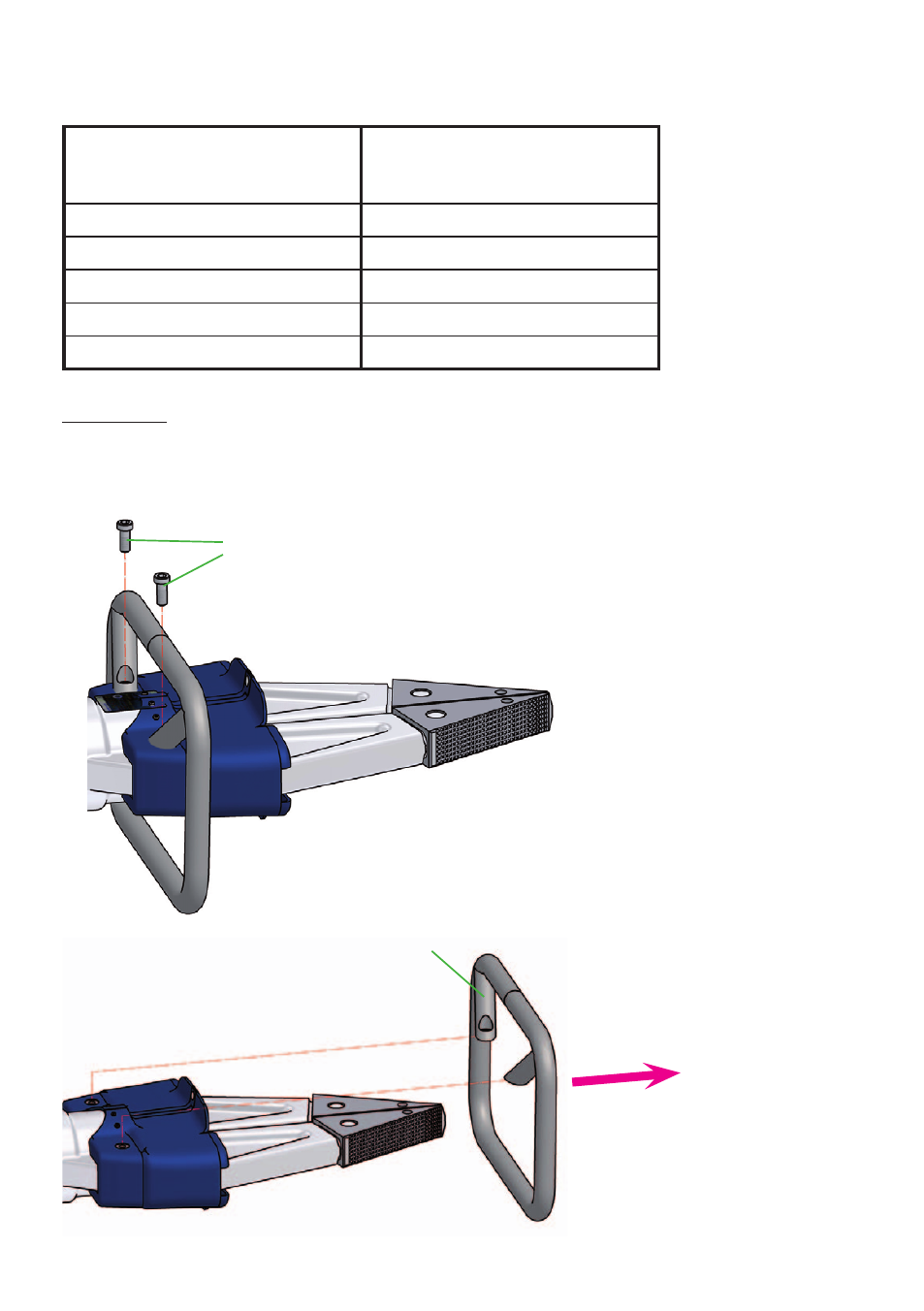

2. Remove the fi xing screws “A” and
remove the handle “B”.
10.3.5 Spreader arm, spreader tips, protective cover and handle replacement
on the SP 300 spreader
