7.5 Squeezing
Basically, squeezing may only be carried in the area of the tips, unless an additional
squeezing device is used – see fi gures 6 and 7 below. (This additional squeezing device is
only available as an accessory for the spreader SP 310).
Use of this squeezing device enables squeezing closer to the spreader arm pivot point,
resulting in a higher squeezing force.
Assembly:
1. Push the squeezing plate A over the spreader
arm until boreholes B1 and B2 lie fl ush above
each other.
2. Position the spacer washer C between the two
boreholes..
3. Put the screw B from the opposite side of the
spreader arm through borehole B1 and spacer
washer C (see fi gure 9).
4. Screw the screw B tightly into borehole B2.

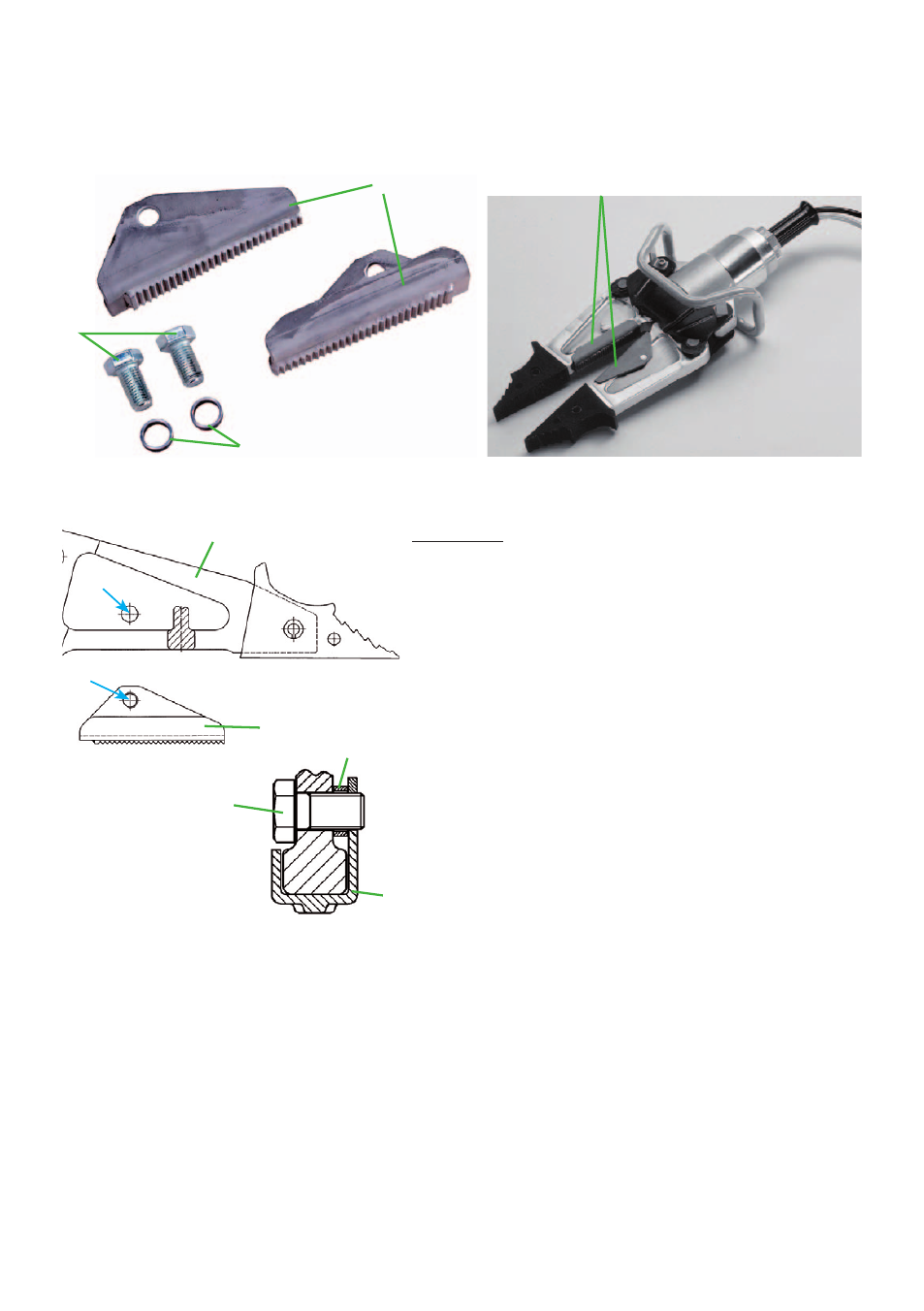

fi g. 7 Squeezing plates A A
B
C
fi g. 8
fi g. 9
Spreader arm
A
B
C
B1
B2
A
fi g. 6
