Position the 2

rail and detent ball as done on the 1

rail. Depress the

detent ball with a punch and push the rail through the housing just past the

ball. Be sure the 2

rail is installed as shown (Fig.22) with the detent

pockets positioned as you see here. Do not rotate the rail while performing

this step.

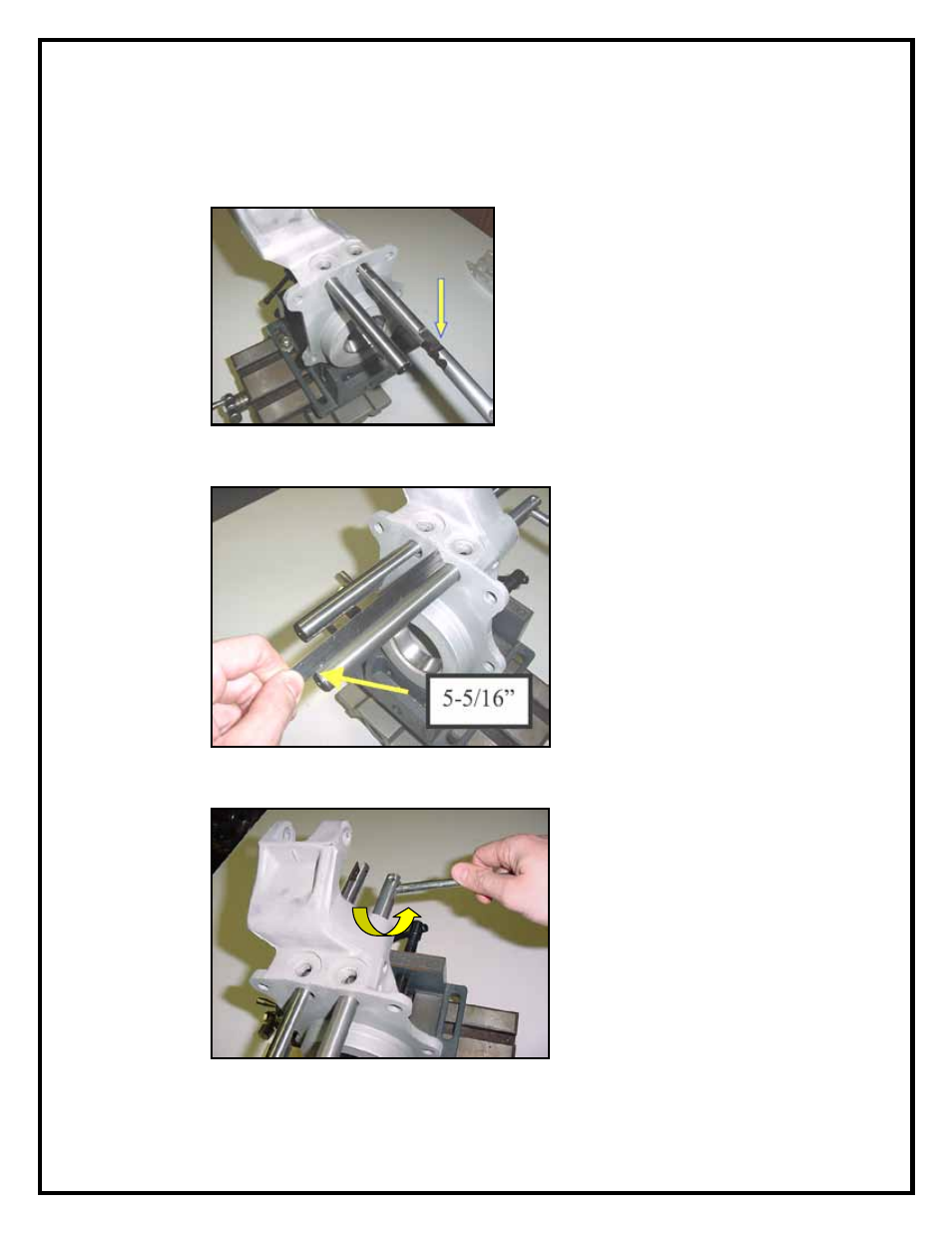

Fig.22

24)

Push or tap the 2

rail inward until 5-5/16” of the rail remains exposed. Do

not rotate the rail at this point (Fig.23).

Fig.23

25)

Roll the second rail counter-clockwise 90 degrees. You should feel the

detent ball “pop” into place securing the rail (Fig.24).

Fig.24
