JB Conversions 2307 LoMax 300 User Manual

Page 11

21)

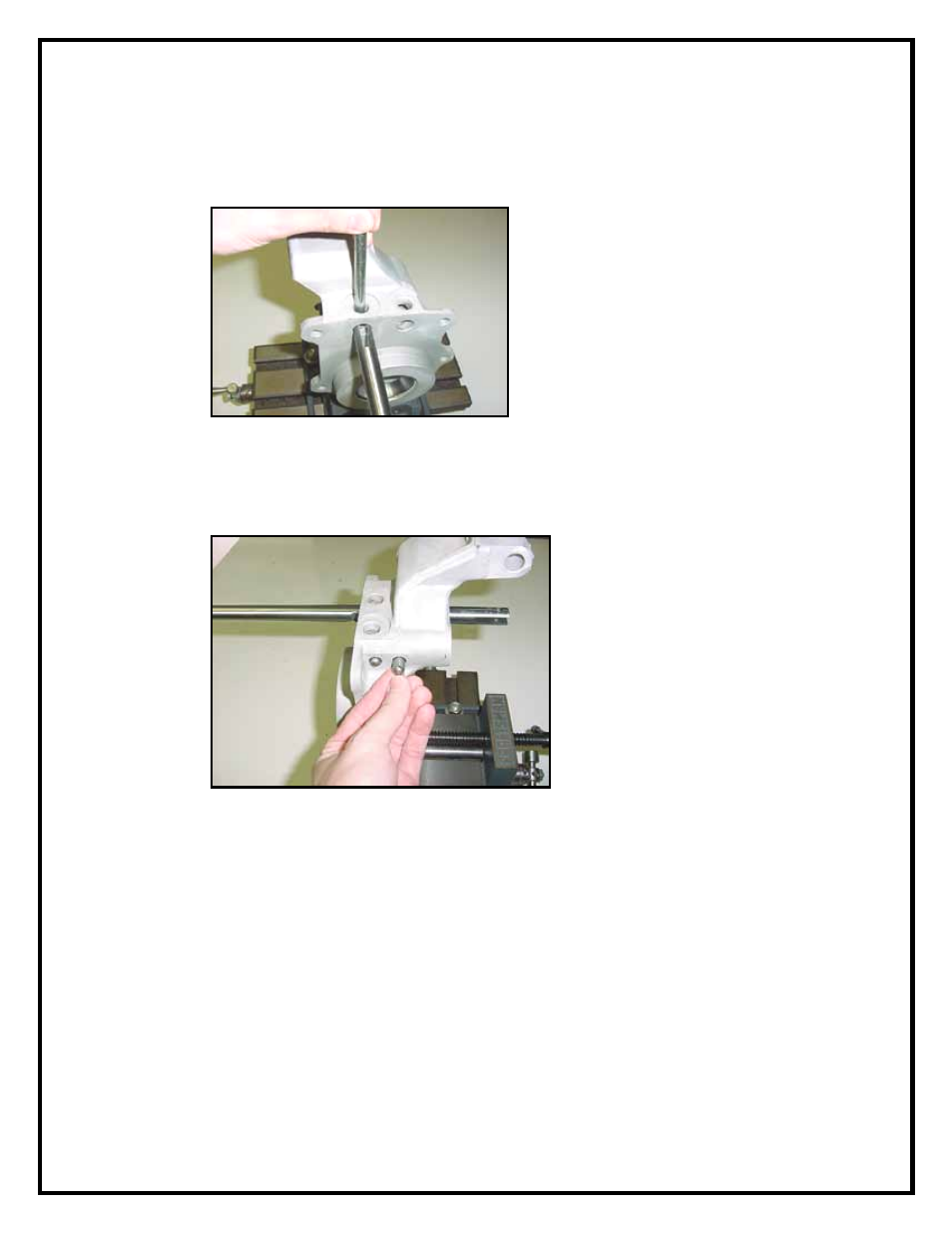

Depress the detent ball with a punch while pushing the rail through the

housing (Fig.20). Push the rail forward until 4-11/16” of the rail remains

exposed on the outside of the housing. Do not rotate the rail while

performing this step.

Fig.20

22)

Insert the pill-shaped slider plugs into the horizontal bores as shown

(Fig.21). Push them as far inward as they will go. They should seat in the

pockets of the 1

rail. You should be able to look through the bore (for the

rail) and see no obstruction caused by the “pills”.

Fig.21
