PRODUCT GROUP ES-Key P/N 119914, 118093, 118620, 118551, 119375 REV 1.70
PRODUCT Vehicle Data Recorder and Seat Belt Warning system BY AMS
6. Application
6.1. Typical VDR system

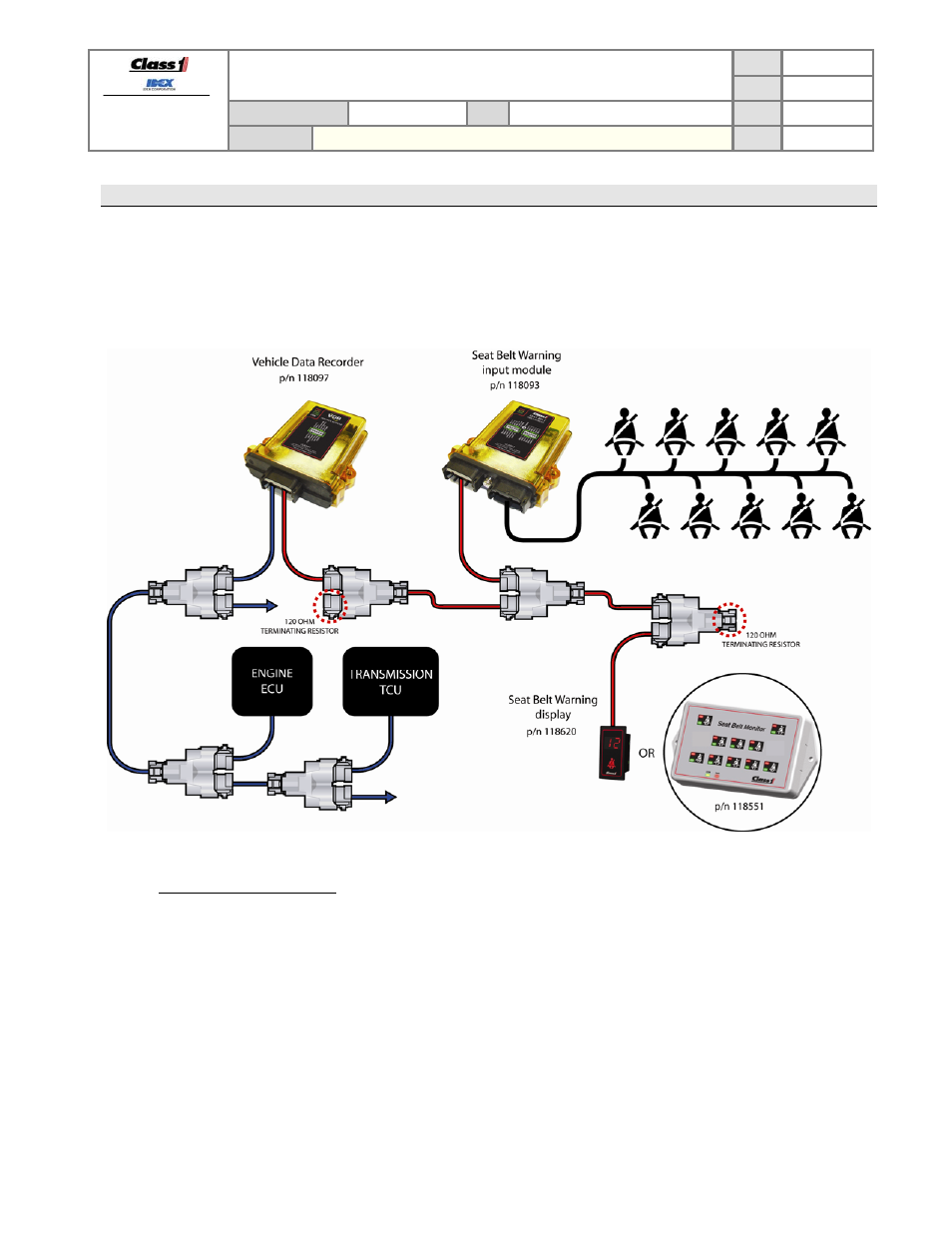

The illustration below shows a typical VDR system utilizing the Vehicle Data Recorder and Seat Belt Warning
modules.
Not all modules are required to comprise a system. The Vehicle Data Recorder module may be omitted if only the
Seat Belt Warning system is desired and vice-versa.
Note: Proper CAN bus termination is required. The seat belt warning CAN bus should have a 120 Ohm terminating resistor located
at its ends (2 resistors per bus).
6.1.1. Number of seats permitted
The Seat Belt Warning Input module (p/n 118093) can support up to 10 seats. If more seats (up to 20) are required
then a second Seat Belt Warning Input module must be installed and addressed correctly (see section 4.2.4).
The Seat Belt Warning display (p/n 118551) can support up to 10 seats (p/n 119375 can support up to 6 seats). If
more seats (up to 20) are required then a second Seat Belt Warning display must be installed and addressed
correctly (see section 4.2.4).
A single Seat Belt Warning display (p/n 118620) can support up to 20 seats.
