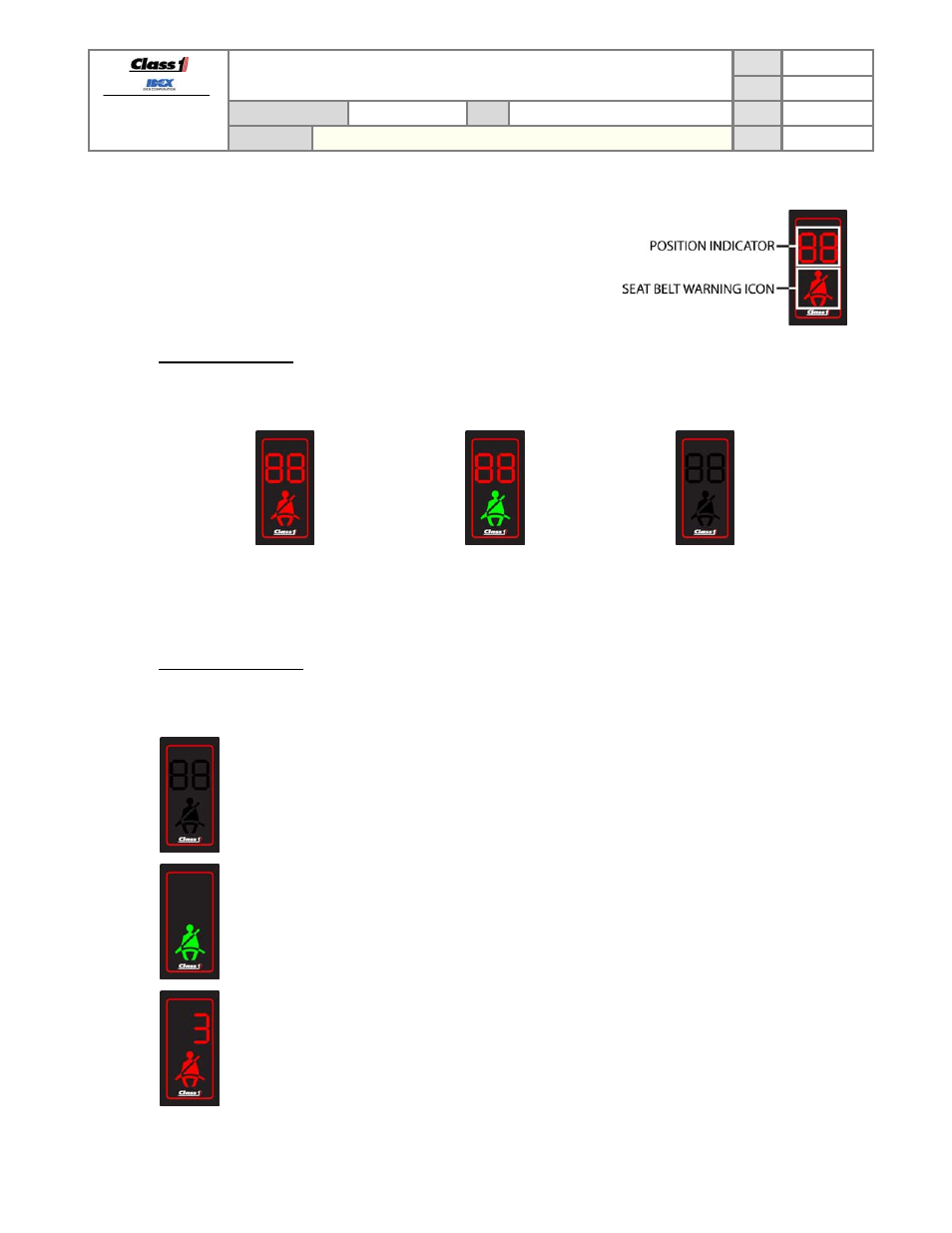

5.2. Seat Belt Warning display (small – p/n 118620)
The Seat Belt Warning display (p/n 118620) is capable of showing the
seat status of up to 20 seats with its position indicator and seat belt
warning icon.
5.2.1.
Display initialization
The Seat Belt Warning display performs a visual initialization cycle during the first three (3) seconds after a new
power cycle. This initialization should be used to verify that the display’s warning indicators are functioning
properly.
The display shows “88” and
the seat belt warning icon is
red during the first second
after a power cycle.
The display shows “88” and
the seat belt warning icon is
green during the next (2
nd
)
second after a power cycle.
The display shows a normal
operating indication after the
last (3
rd
) second after a power
cycle.
5.2.2. Operating
indications
The Seat Belt Warning display indicates the status of the seat and seat belt inputs based on communication
messages from the Seat Belt Warning input module (p/n 118093).
The Seat Belt Warning display position indicator and seat belt warning icon will remain dark when no
seats are occupied and no seat belts are buckled.
The Seat Belt Warning display will light the seat belt warning icon green when all occupied seats are
buckled properly.
The Seat Belt Warning display will indicate a position number and light the seat belt warning icon red
when an occupied seat has a seat belt violation or seat belt sequence error.
When more than one seat has a seat belt violation or seat belt sequence error the position indicator
will cycle through the seat positions in violation/error.
