PRODUCT GROUP ES-Key P/N 119914, 118093, 118620, 118551, 119375 REV 1.70
PRODUCT Vehicle Data Recorder and Seat Belt Warning system BY AMS
5.2.3. Communication error indication
The Seat Belt Warning display position indicator shows dashes and the seat belt warning icon
flashes red when communication messages are not received from the Seat Belt Warning input
module (see section 7 for troubleshooting).
5.3. Seat Belt Warning display (large – p/n 118551, p/n 119375)

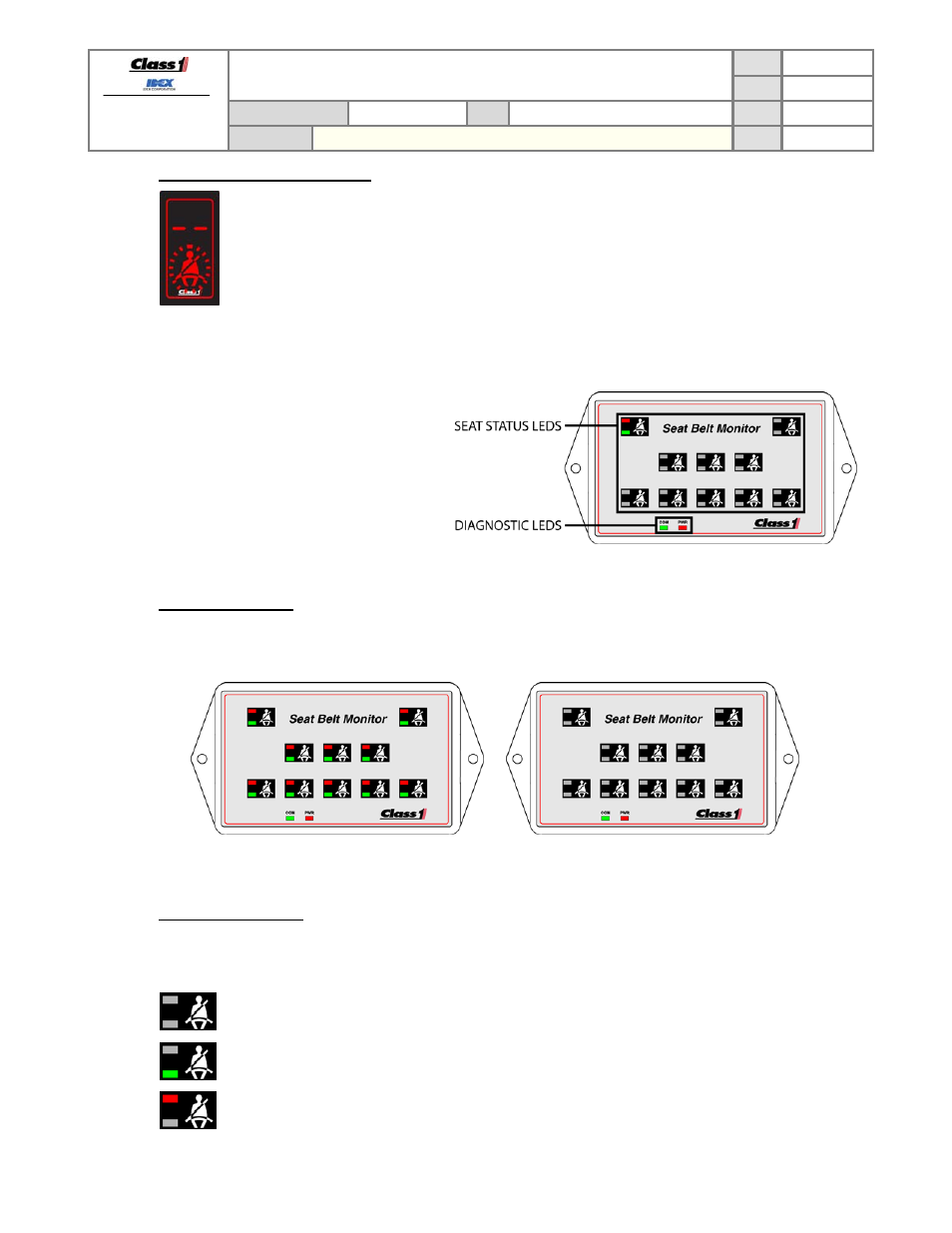

The Seat Belt Warning display (p/n 118551) is
capable of showing the seat status of up to 10
seats with individual (red and green) seat
status LEDs.
The Seat Belt Warning display (p/n 119375) is
capable of showing the seat status of up to 6
seats with individual (red and green) seat
status LEDs.
5.3.1. Display initialization
The Seat Belt Warning display performs a visual initialization cycle during the first three (3) seconds after a new
power cycle. This initialization should be used to verify that the display’s LEDs are functioning properly.
The display activates all seat status LEDs
during the first 3 seconds after a power cycle. The display then shows a normal operating
indication.
5.3.2. Operating indications
The Seat Belt Warning display indicates the status of the seat and seat belt inputs based on communication
messages from the Seat Belt Warning input module (p/n 118093).
The seat status LEDs will remain dark when a seat is not occupied and the associated seat belt is
not buckled.
The green seat status LED will light when a seat is occupied and its associated seat belt is buckled
properly.
The red seat status LED will light when a seat is occupied and has a seat belt violation or has a seat
belt sequence error.
