Class1 Vernier Throttle for CAT - Manual (Page 9)

9
DOC 101057C_c:\manuals\throttles\cats\catthrot.p65

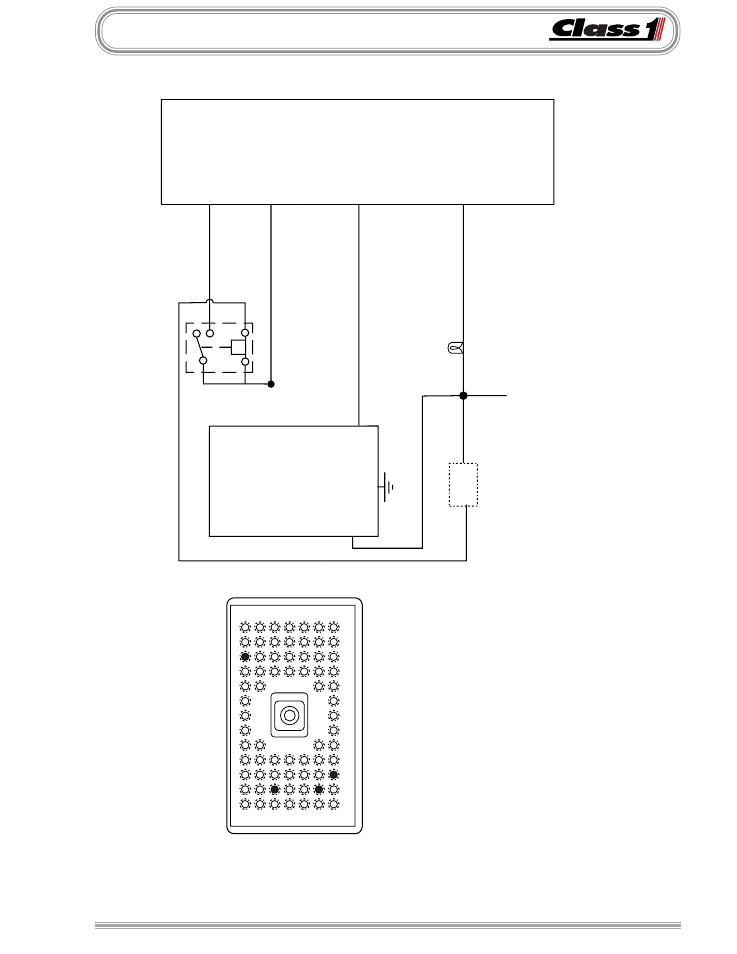

Class 1
Caterpillar Interface
C1-A 12 VDC
C3
C1-B
Sensor Common (Ground)
Throtle Position
PTO Engaged PTO Lamp
Caterpillar 3126B HEUI
56
PTO On/Off Ground
3 Input
Sensor
Common #2 Ground
68
INPUT #8 RAPS PWM
30
Output #1 PTO On Lamp Ground
New Caterpillar 3126B
12 VDC
PTO
OEM
Interlocks
Caterpillar 3126B HEUI ECM
Throttle Interface Module
manuals\throttle\cat\cat3126b.ai..100198
1
2
3
4
5
6
7
12
CAT J1/P1 Connector
ECM RIGHT SIDE
Vehaicle Harness Connector
ECM Side
Relay
87a 87
85
86
30
Programming Considerations Parameter Available Defaults PTO
Remote Throttle Off
PTO Top Engine Limit
600-2120 2120
PTO RPM set speed
Idle-PTO TEL 0 RPM
PTO Cab Throttle RPM TEL, Idle,PTO TEL TEL PTO activates cooling fan Normal, Continuous Normal Torque Limit 200 lb-ft to Rated 2000 lb-ft Idle PTO vehicle speed limit 1 to 15 MPH 1 MPH
8
9
10
11
13
14 24 32 40 48
23 31 39 47 57
70 69 68 67 66 65 64 63 62 61 60 59 58
3126B HEUI
